Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering
Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering
Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering
Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering
Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering
Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering
Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering
Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering
Specifications
Brand Name :
IRIS
Model Number :
IRIS-PQ01
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
$7439-$8312 set
Payment Terms :
T/T
Supply Ability :
5 set/week
Delivery Time :
5-8 working days
Packaging Details :
Export Woodern Box
Product name :
Factory Directly Supply Pit Type Electric Resistance Furnace For Quenching/Tempering/Annealing/Carburizing/Nitriding
Type :
Resistance furnace
Rated voltage :
3*380V / 50-60Hz
Rated power :
90KW
Number of heating zones :
1 zone
Temperature control method :
intelligent instrument PID control
Power actuator :
SSR300A/1700V SCR module
Rated furnace capacity :
400Kg
Empty furnace heating time :
≤1.2h
Furnace cover lifting method :
hydraulic
Description

Factory Directly Supply Pit Type Electric Resistance Furnace For Quenching/Tempering/Annealing/Carburizing/Nitriding

This pit type resistance furnace is mainly used for quenching,tempering or annealing of rod, long axis, roll, 45 steel, stainless steel and other metal materials and mechanical parts.

1. Structure of pit type tempering furnace:

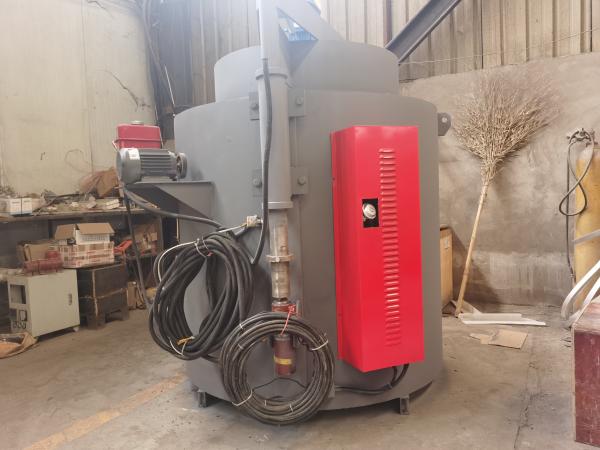

Pit type tempering furnace is mainly composed of furnace shell, furnace lining, furnace cover and lifting device, heating device, loading frame and electrical control cabinet.,etc.

2. Application of pit type tempering furnace:

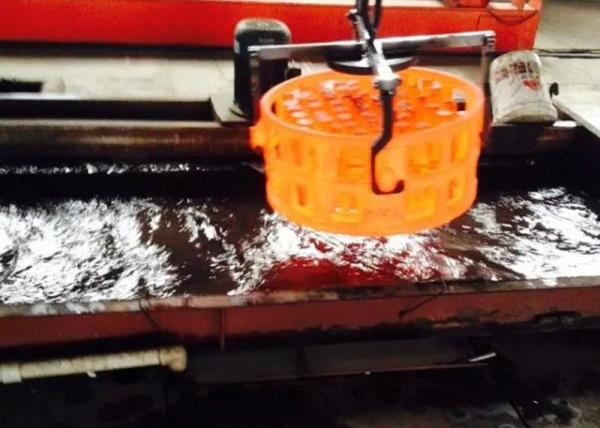

This pit type tempering furnace is mainly used for tempering of carbon steel materials mechanical parts after quenching.

Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering

Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering

The paramter of the Factory Directly Supply Pit Type Electric Resistance Furnace For Quenching/Tempering/Annealing/Carburizing/Nitriding

Effective size Ф700mm×1000mm
Rated power 65KW/45KW
Rated voltage 380V
Maximum temperature 650℃ (until the workpiece is damaged, the instrument sets the maximum input upper limit)
Number of heating zones 1 zone
Temperature control method intelligent instrument PID control
Power actuator SSR300A/1700V SCR module
Temperature control deviation ±2℃ (during heat preservation)
Temperature control accuracy 0.3 level
Soaking method soaking by the top fan
Furnace temperature uniformity ≤±3℃ (five-point temperature measurement in the furnace during the test)
Rated furnace capacity 400Kg
Empty furnace heating time ≤1.2h
Empty furnace loss ≤12KW
Furnace wall temperature rise ≤environment+30℃
Furnace cover lifting method hydraulic
Furnace weight 2800Kg

Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering

Pit Type 400Kg Electric Resistance Heating Furnace For Quenching Tempering

Our service:
As a manufacturer with 15 years’ R&D experience in China, we would like to offer any support you need as follows:
1. Immediate reply to your inquiry.
2. Detailed information of our products, and our company if you need.
st quotation.
4. Immediate reply to your questions about our products
5. Technical support, or alternative accessories if necessary.
