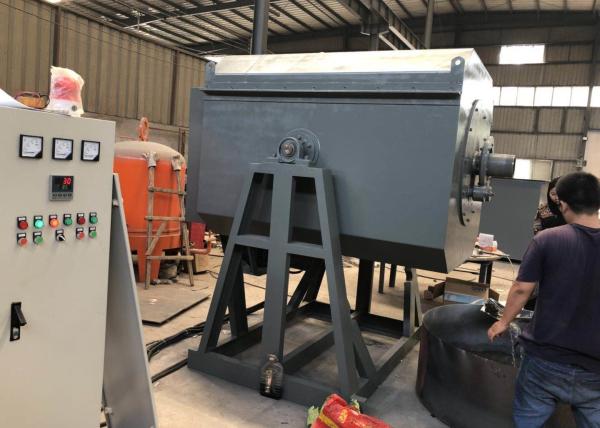

150kg Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw
150kg Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw
150kg Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw
150kg Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw
Specifications
Brand Name :
IRIS
Model Number :
IRIS-g100
Certification :
ISO9000
Place of Origin :
China
MOQ :
1set
Price :
USD8954-USD13654/set
Payment Terms :
L/C, T/T
Supply Ability :
5 Sets/Month
Delivery Time :
Within 25 days
Packaging Details :
Standard export wooden box packaging
Product name :
Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw 150kg
Rated power :
60Kw(customizable)
Rated voltage :
380V
Rated temperature :
950℃(customizable)
Effective heating size :
Ф500×650(customizable)
Productivity :
150Kg/h(customizable)
Insulation thickness :
380mm
Heating method :
high temperature resistance band
Roller rotation speed :
stepless frequency conversion adjustment
Workpieces :
Screw
Description

Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw 150kg

The furnace is mainly used for quenching, tempering, annealing, and other heat treatment of bicycle parts, sewing machine parts, standard parts, steel ball bearings, rollers, nails, screws and other small parts. The furnace has the characteristics such as: good uniformity of furnace temperature, simple operation, simple maintenance, low energy consumption and energy saving.

150kg Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw

Technical parameter of the Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw 150kg

Rated power 45kw/60Kw
Rated voltage 380V
Number of phases 3 phases
Rated frequency 50Hz
Rated temperature 950℃
Number of temperature control zones 1 zone
Effective drum heating size

Ф400×500

Ф500×650
Equipment dimensions

2450×2300×2150mm
Weight 2960Kg
Heating method high temperature resistance band
Productivity 100kg/h ,150Kg/h
Temperature control method Intelligent digital display instrument and PID temperature control; with over-temperature alarm
Furnace temperature uniformity ≤±8℃ (constant heat preservation stage)
Furnace surface temperature rise ≤environment+30℃
Temperature control accuracy ≤±2℃
Furnace structure full fiber structure, the roof of the furnace can be lifted to facilitate the loading of the drum
Insulation thickness 380mm
Roller rotation speed stepless frequency conversion adjustment

150kg Resistance Heating Furnace Drum Furnace Quenching Hardening Furnace For Screw
