0.5 Ton Industrial Melting Furnace Electric Furnace For Aluminium Melting
0.5 Ton Industrial Melting Furnace Electric Furnace For Aluminium Melting
0.5 Ton Industrial Melting Furnace Electric Furnace For Aluminium Melting
0.5 Ton Industrial Melting Furnace Electric Furnace For Aluminium Melting
0.5 Ton Industrial Melting Furnace Electric Furnace For Aluminium Melting
0.5 Ton Industrial Melting Furnace Electric Furnace For Aluminium Melting
0.5 Ton Industrial Melting Furnace Electric Furnace For Aluminium Melting
0.5 Ton Industrial Melting Furnace Electric Furnace For Aluminium Melting
0.5 Ton Industrial Melting Furnace Electric Furnace For Aluminium Melting
0.5 Ton Industrial Melting Furnace Electric Furnace For Aluminium Melting
Specifications
Brand Name :
IRIS
Model Number :
500KG
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$7500USD/Set
Payment Terms :
T/T
Supply Ability :
30 sets /month
Delivery Time :
within 15 working days
Packaging Details :
export wooden box
Product name :
500kg Medium Frequency Scrap Metal Steel Induction Smelting Furnace Price Industrial Metal Melting Furnace
Application :
Metal Melting
Capacity :
500KG
Raw material :
Aluminum,copper steel
Melting Time :
40-60 Minutes
Power :
500KW
Voltage :
3*380V
Rated frequency :
1000HZ
Heating method :
Induction Method
Cooling way: :
water cooling
Description

0.5 Ton Metal Electric Induction Melting Furnace Smelting Industrial Oven Steel Copper Aluminium Melting Pot Stove

Product Description

0.5 Ton Metal Electric Induction Melting Furnace Smelting Industrial Oven Steel Copper Aluminium Melting Pot Stove include:

1. Power supply cabinet
2. Induction furnace body
3. Closed cooling system(optional)

0.5 Ton Industrial Melting Furnace Electric Furnace For Aluminium Melting

Technical Parameter
Basic Parameters
Capacity Power Voltage Cabinet size (mm) Cabinet weight Furnace Body weight
100KG 100KW 3*380V 1000*800*1700 0.5T 0.3T
250KG 250KW 3*380V 1300*850*2000 0.8T 0.7T
500KG 400KW 3*380V 1300*850*2000 1T 1T
1T 800KW 3*660V 1300*850*2000 1.2T 1.3T
1.5T 1000KW 3*660V 1300*850*2000 1.2T 1.8T
2T 1500KW 3*660V 2400*1000*2000 1.6T 2T
5T 3000KW 6*950V 2400*1000*2000 2.5T 4.5T
10T 6000KW 6*1250V 3500*1000*2200 3T 23T
15T 10000KW 6*1250V 4000*1200*2200 3.5T 32T

The PLC technology is China's leading control technology. It is developed internally by our factory and has independent intellectual property rights.

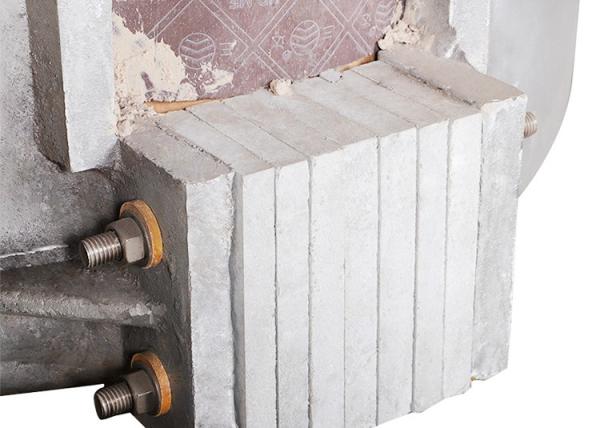

Material of induction coil :

Material of induction coil producted by CHINACO Luoyang Copper Co., Ltd.

Wall thickness of induction coil : 5mm-8mm

3-layer insulation treatment

Detailed Images

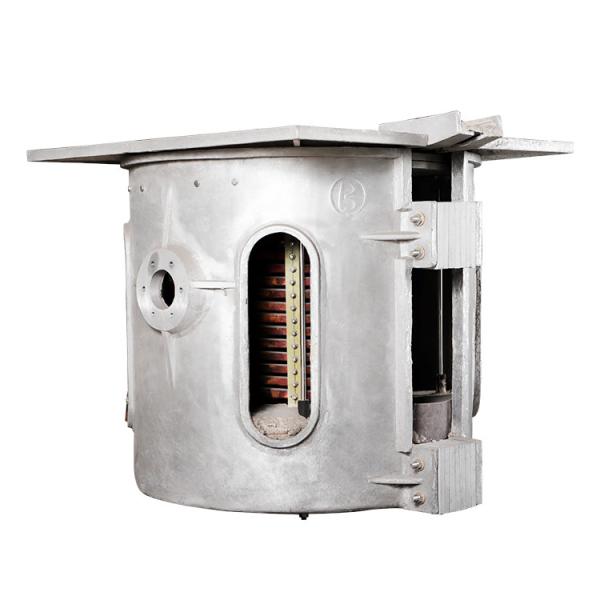

The melting furnace mainly composed of power control cabinet and melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information

Export Market
