IRIS OEM Electric Heat Treatment Furnace For Aluminum Quenching
IRIS OEM Electric Heat Treatment Furnace For Aluminum Quenching
IRIS OEM Electric Heat Treatment Furnace For Aluminum Quenching
IRIS OEM Electric Heat Treatment Furnace For Aluminum Quenching
IRIS OEM Electric Heat Treatment Furnace For Aluminum Quenching
IRIS OEM Electric Heat Treatment Furnace For Aluminum Quenching
IRIS OEM Electric Heat Treatment Furnace For Aluminum Quenching
IRIS OEM Electric Heat Treatment Furnace For Aluminum Quenching
IRIS OEM Electric Heat Treatment Furnace For Aluminum Quenching
IRIS OEM Electric Heat Treatment Furnace For Aluminum Quenching
Specifications
Brand Name :
IRIS
Model Number :
IR-QF
Certification :
CE
Place of Origin :
Henan,China
MOQ :
1set
Price :
USD 15000-25000 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500SETS per month
Delivery Time :
30 days
Packaging Details :
Container
Product name :
aluminum quenching furnace electric
Temperature :
750 degree
Size :
1600×1800×2100 mm
Power :
65kw
Furnace weight :
2500 kg
Max capacity :
400kg
Description

Aluminum Quenching Furnace Electric Heat Treatment Quenching Furnace Cost

Aluminum Quenching Furnace Aluminum

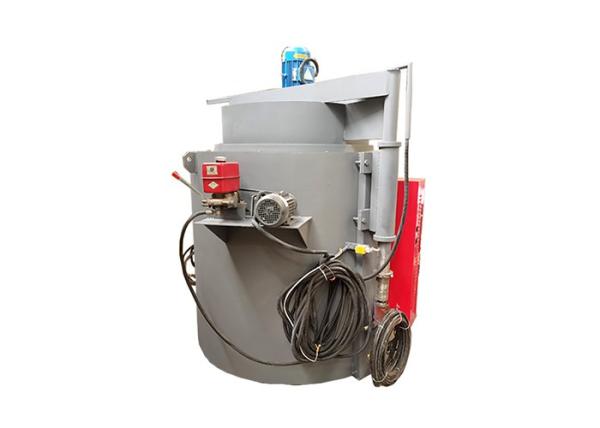

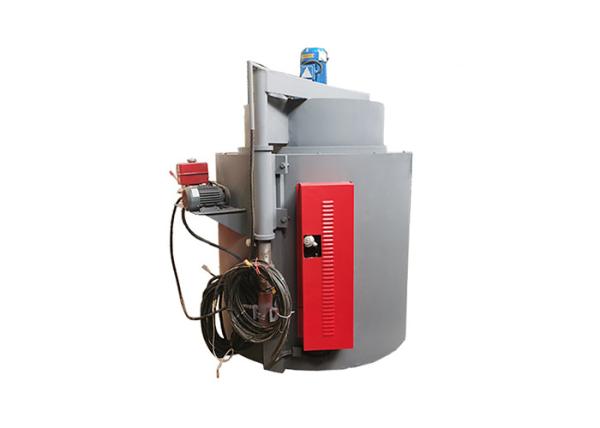

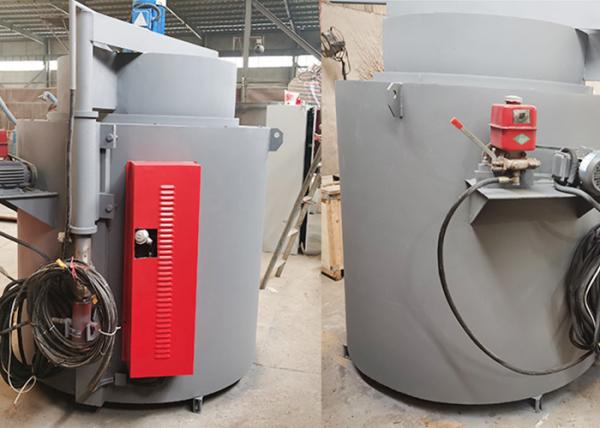

The complete set of aluminum quenching fuenace electric consists of furnace body, hot

air circulation system, furnace cover lifting mechanism, control cabinet and other systems.


The outer shell of the aluminum quenching furnace electric body is formed by welding plates,

the lining refractory layer is made of high-quality refractory bricks, and the insulating layer is

made of fiber structure. In order to ensure that the aluminum quenching furnace electric lining

has both good thermal insulation performance and certain structural strength, the aluminum

quenching electric furnace chamber is made of high-aluminum fiber folded blocks.

Parameter

Effective size Ф700mm×1000mm
Rated power 65KW
Maximum temperature 750 ℃
Heating zones 1 zone
Temperature control intelligent instrument PID
Power executive components SSR360A/1100V solid state power module
Temperature control deviation ±2°C
Temperature control accuracy 0.3 grade
Soaking method forced convection with fan on the furnace top
Furnace temperature uniformity ≤±3℃
Rated furnace capacity ≤400Kg
Heating time of empty furnace ≤1.2h
Empty furnace loss ≤20KW
Furnace wall temperature rise ≤ ambient +30 ℃
Furnace cover lifting method hydraulic
Furnace weight 2800Kg
Dimensions 1600mm×1800mm×2100mm
