IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted
IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted
IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted
IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted
IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted
IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted
IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted
IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted
IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted
IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted
Specifications
Brand Name :
RICH
Model Number :
RQ-TP-FA
Certification :
CE/ROHS/FCC
Place of Origin :
China(Mainland)
MOQ :
2
Price :
negotiable
Payment Terms :
L/C, D/A, T/T, Western Union
Delivery Time :
5-8 WORK DAYS
Packaging Details :
negotiable
Interface :
USB
Touchpad Resolution :
1000 DPI
Key Lifetime :
10 million keystrokes
Material :
Stainless Steel
Waterproof Level :
IP65
Front Panel Size :
107*134mm
Protection Grade :
IK07
Operating Temperature :
-40°C to 60°C
Mouse Buttons :
2
Keystroke Life Time :
> 2,000,000
Description

1.Technical Specifications

RQ-TP-FA is a 2 keys industrail TouchPad with USB interface.
The Touchpad is assembled in SUS304 stainless steel panel, provide waterproof, dustproof & explosionproof features ( IP65 / IK07 ).
USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.

2.Mechanical Features

Panel mounted design, use 6 welded studs to install.
Panel board and keys material: SUS304 Stainless-steel
Base board material: Aluminum alloy
Key life cycle: 2mil min.
Key press force: 2~3N
Key travel length: 2MM
Dimensions: 107*134*30MM
Weight: 380g

3.Environmental adaptability


Op. Temp: -40℃～+60℃,
Op. RH: 10～95%
Storage temperature: -40℃～+75℃
Storage RH: 5～95%
Protection grade: IP65 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV

4.Keyboard Language


Defult keyboard language is US.
Optional for customized different languages, such

as Spanish, French, German, Portuguese, Russian, Arabic etc.

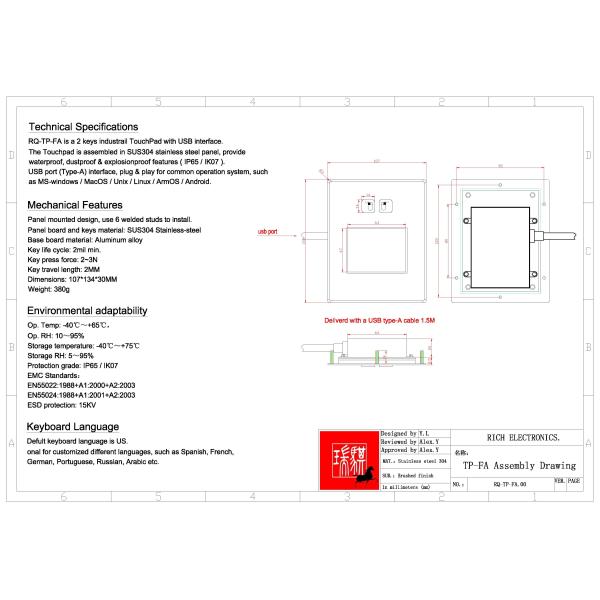

5.Installation Drawing

IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted

6. APPLICATION SITE
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

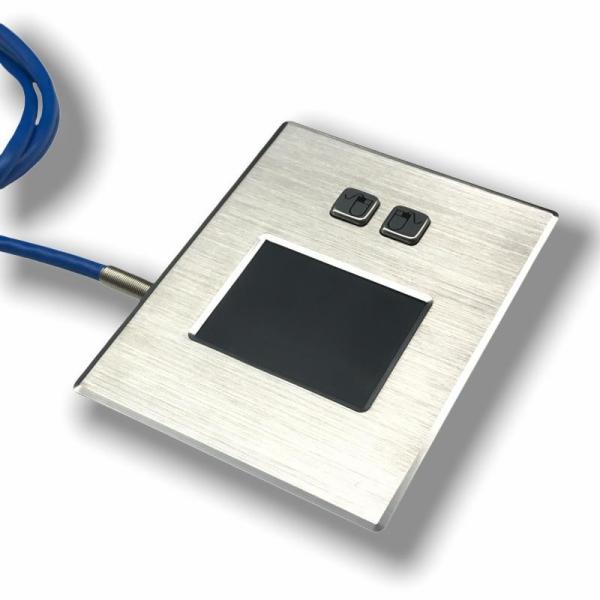

7. more pictures:

IP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel MountedIP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel MountedIP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel MountedIP65/IK07 Waterproof/Dustproof Industrial Stainless steel TouchPad USB interface Front Panel Mounted
