1.Technical Specifications

Stainless-steel 16 keys Industrial numberic keypad.

Compact design and highly reliable.

Provide waterproof, dustproof & violence resistance features ( IP65 / IK07 ).

The keypad is backlit-ready, so that all character can light-up when plug-in.

(The light colour can be customized.)

Long-life keys with over 2mil key life cycle.

The panel board and keys are made by SUS304 Stainless-steel ( SUS316 is for option ).

Integrade Buzzer which gives a "BEEP" when anykey pushed.

USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.

Scan matrix 4*4 interface is for option.

2.Mechanical Features

Panel board and keys material: SUS304 Stainless-steel

Base board: Alumium alloy

Key life cycle: 2mil min.

Key press force: 2~3N

Key travel length: 0.6MM

Dimensions: 140*95*15.5MM, panel size: 87.5*91.5MM

Weight: 245g

3.Environmental adaptability

OperatingTemperature: -40℃～+65℃,

Operating RH: 10～95%

Storage temperature: -40℃～+75℃

Storage RH: 5～95%

Protection grade: IP65 / IK07

EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV

4.Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

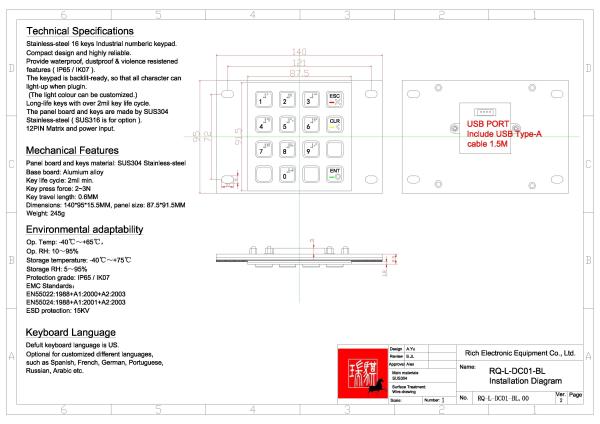

5.Installation Drawing

6.Application Site

This KeyPad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

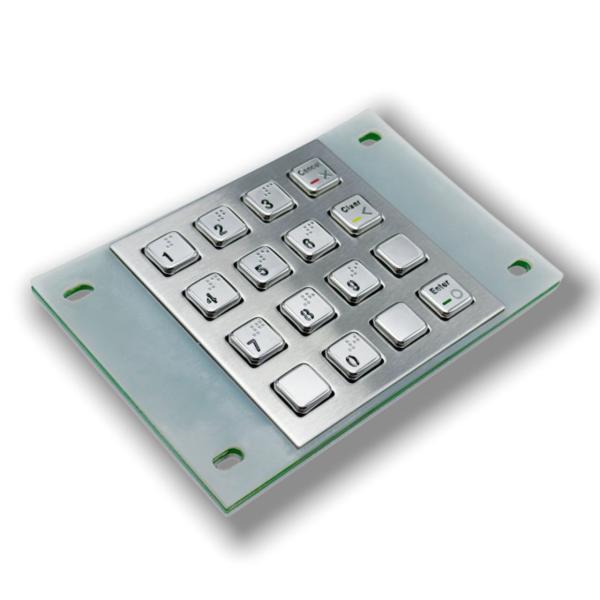

7. more pictures:
