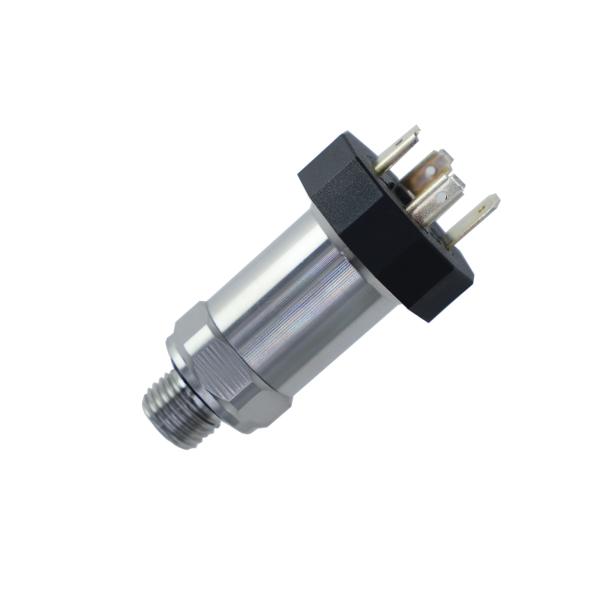

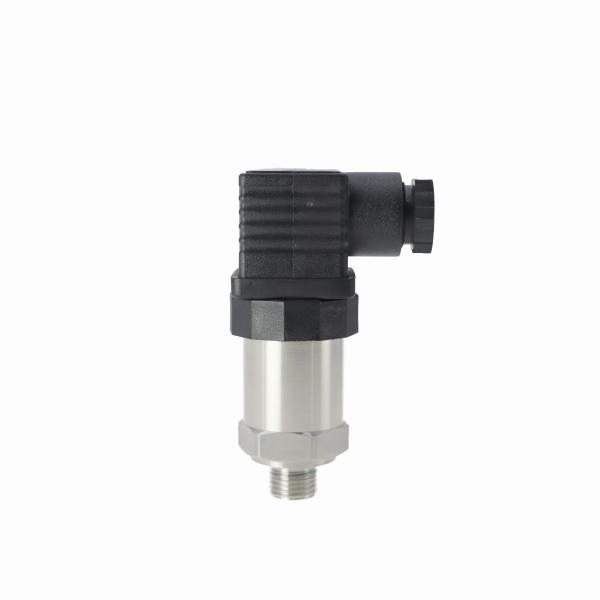

Ceramic Pressure Sensor Absolute With 4-20mA Compact Pressure Transmitter
Ceramic Pressure Sensor Absolute With 4-20mA Compact Pressure Transmitter
Ceramic Pressure Sensor Absolute With 4-20mA Compact Pressure Transmitter
Ceramic Pressure Sensor Absolute With 4-20mA Compact Pressure Transmitter
Ceramic Pressure Sensor Absolute With 4-20mA Compact Pressure Transmitter
Ceramic Pressure Sensor Absolute With 4-20mA Compact Pressure Transmitter
Specifications
Brand Name :
Sier
Model Number :
SPT21C
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
USD20~35/Piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces each month
Delivery Time :
7
Packaging Details :
Carton
Housing :
SS304
Pressure port :
SS304
Diaphragm :
SS316L
Sealing gasket :
Viton
Plug housing :
Plastic
Cable :
Cable
Description

Ceramic Pressure Sensor Absolute With 4-20mA Compact Pressure Transmitter

Features

  • Reliable performance, easy application
  • Short protection and reverse polarity protection
  • Gauge, absolute and sealed gauge optional
  • Compact size

Specification

Pressure range -0.1…0～0.01…100MPa (-1…0~0.1…1000bar)
Over pressure 1.5 times FS or 110MPa (min. value is valid)
Pressure type Gauge/absolute/sealed gauge optional
Process connection G1/4 male thread (or as per customer’s requirement)
Accuracy ±0.5％FS
Long term stability max. ±0.3%FS/year
Offset thermal drift 0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
Span thermal drift 0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
Compensated temp. 0~50℃
Application temp. -30~80℃
Storage temp. -40~120℃
Power supply 12~28VDC
Output signal 4~20mADC(2 wires) 0/1~5VDC(3 wires)
Load resistance ≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
Housing protection IP65
Electrical connection DIN43650 plug/M12 connector

Construction and Outline Dimension

Construction material:

Housing SS304
Pressure port SS304
Diaphragm SS316L
Sealing gasket Viton
Plug housing Plastic

Ceramic Pressure Sensor Absolute With 4-20mA Compact Pressure Transmitter

Outline dimension:

Ceramic Pressure Sensor Absolute With 4-20mA Compact Pressure Transmitter

Electrical Connection

Ceramic Pressure Sensor Absolute With 4-20mA Compact Pressure Transmitter

Ceramic Pressure Sensor Absolute With 4-20mA Compact Pressure Transmitter
