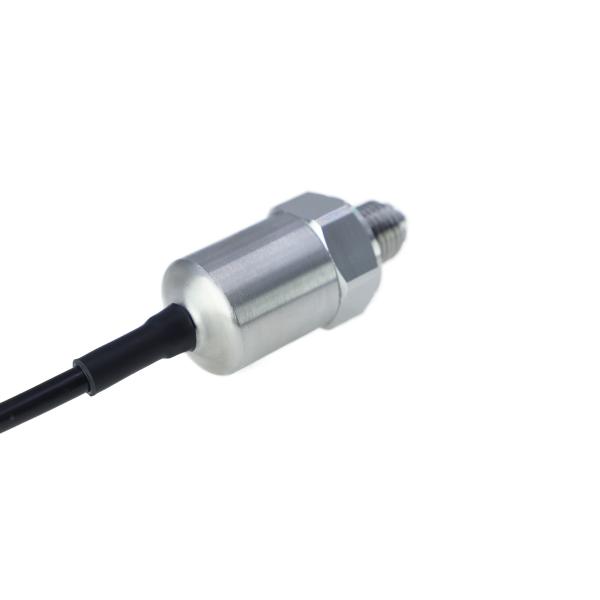

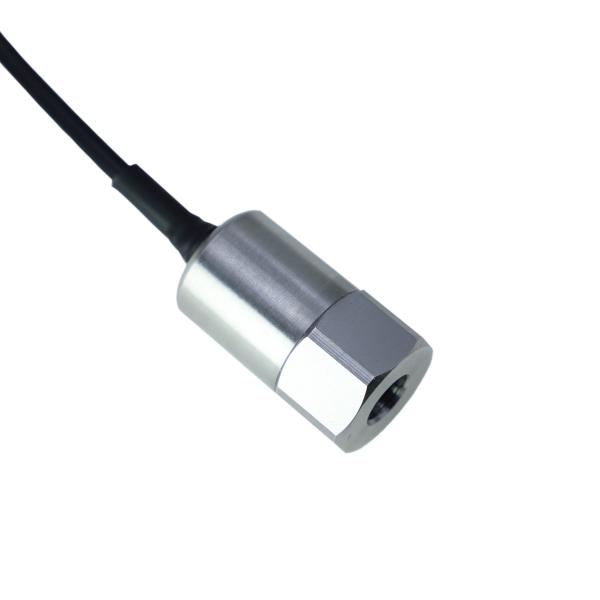

SS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor
SS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor
SS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor
SS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor
SS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor
SS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor
Specifications
Brand Name :
Sier
Model Number :
SPT21C1
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
USD15~25/Piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces each month
Delivery Time :
7
Packaging Details :
Carton
Housing :
SS304
Pressure port :
SS304
Diaphragm :
SS316L
Sealing gasket :
Viton
Plug housing :
Plastic
Cable :
Φ7.5mm Polyethylene Special Cable
Load resistance :
≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
Description

Pressure Transmtter

FeaturesSS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor

1. Reliable performance, easy application
2. Short protection and reverse polarity protection
3. Low cost
4. Compact size

Introduction

SPT21C1 is economical pressure transmitter, uses standard ceramic pressure sensor and special circuit board to make it cost effective and good performance. This product is used for measure and control of liquid or gas pressure.

Specification

Pressure range 0～0.5…40MPa (0~5…400bar)
Over pressure 2 times FS
Pressure type Gauge
Process connection G1/4 male thread (or as per customer’s requirement)
Accuracy ±0.5％FS
Long term stability max. ±0.3%FS/year
Offset thermal drift ±0.02%FS/℃
Application temp. -30~80℃
Storage temp. -40~125℃
Power supply 12~28VDC
Output signal 4~20mADC(2 wires) 0/1~5VDC(3 wires)
Load resistance ≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
Housing protection IP65
Electrical connection DIN43650 plug,M12 (or as per customer’s requirement)

SS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor

Construction and Outline Dimension

Construction material:

Housing SS
Pressure port SS
Sensor Ceramic
Sealing gasket Viton
Plug housing Plastic
Cable Polyethylene

Outline dimension:

SS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor

SS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor

Application

This product has widely been used for measurement of differential pressure of pipeline fluids in petroleum industry, chemical industry, electric power hydrology etc.

SS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor

SS316L 20mA Anti Corrosion Low Cost Pressure Transmitter Standard Ceramic Pressure Sensor
