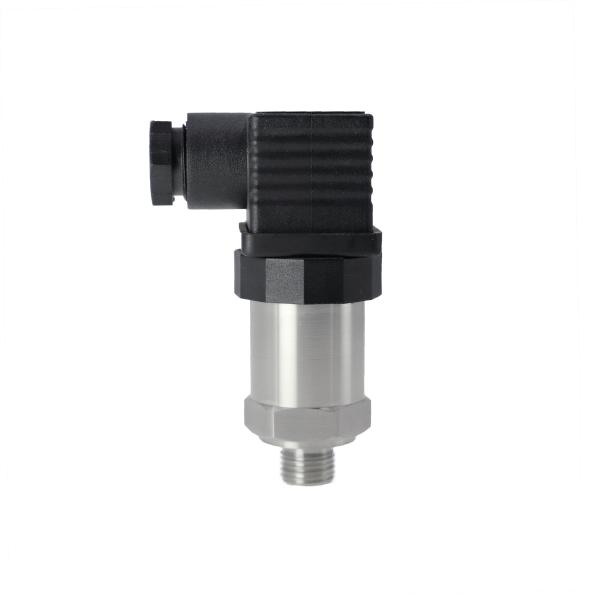

20mA IP65 Sealed Gauge Pressure Sensor For Pressure Measurement
20mA IP65 Sealed Gauge Pressure Sensor For Pressure Measurement
20mA IP65 Sealed Gauge Pressure Sensor For Pressure Measurement
20mA IP65 Sealed Gauge Pressure Sensor For Pressure Measurement
20mA IP65 Sealed Gauge Pressure Sensor For Pressure Measurement
20mA IP65 Sealed Gauge Pressure Sensor For Pressure Measurement
Specifications
Brand Name :
Sier
Model Number :
SPT21C
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
USD20~35/Piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces each month
Delivery Time :
7
Packaging Details :
Carton
Housing :
SS304
Pressure port :
SS304
Diaphragm :
SS316L
Sealing gasket :
Viton
Plug housing :
Plastic
Cable :
Φ7.5mm Polyethylene Special Cable
Description

Compact Size Pressure Transmitter

Features20mA IP65 Sealed Gauge Pressure Sensor For Pressure Measurement

  • Reliable performance, easy application
  • Short protection and reverse polarity protection
  • Gauge, absolute and sealed gauge optional
  • Compact size

Specification

Pressure range -0.1…0～0.01…100MPa (-1…0~0.1…1000bar)
Over pressure 1.5 times FS or 110MPa (min. value is valid)
Pressure type Gauge/absolute/sealed gauge optional
Process connection G1/4 male thread (or as per customer’s requirement)
Accuracy ±0.5％FS
Long term stability max. ±0.3%FS/year
Offset thermal drift 0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
Span thermal drift 0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
Compensated temp. 0~50℃
Application temp. -30~80℃
Storage temp. -40~120℃
Power supply 12~28VDC
Output signal 4~20mADC(2 wires) 0/1~5VDC(3 wires)
Load resistance ≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
Housing protection IP65

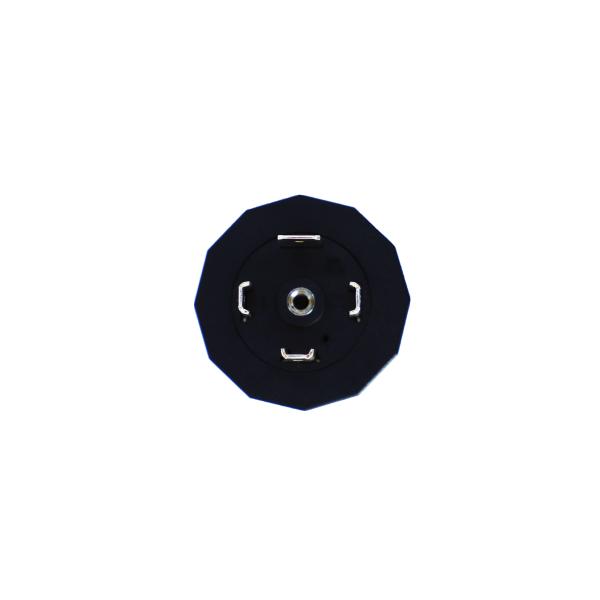

Electrical connection DIN43650 plug/M12 connector

Construction and Outline Dimension

Construction material:

Housing SS304
Pressure port SS304
Diaphragm SS316L
Sealing gasket Viton
Plug housing Plastic

20mA IP65 Sealed Gauge Pressure Sensor For Pressure Measurement

Outline dimension:

20mA IP65 Sealed Gauge Pressure Sensor For Pressure Measurement

Electrical Connection

20mA IP65 Sealed Gauge Pressure Sensor For Pressure Measurement

20mA IP65 Sealed Gauge Pressure Sensor For Pressure Measurement
