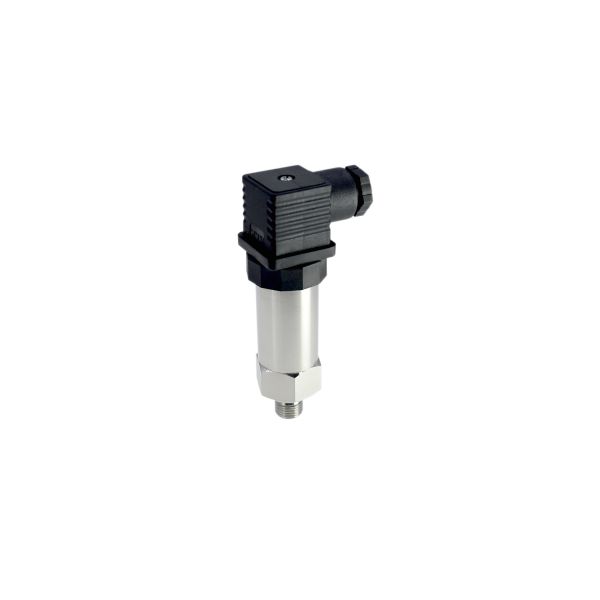

IP65 20mA SS316L Thin Film Pressure Sensor
IP65 20mA SS316L Thin Film Pressure Sensor
IP65 20mA SS316L Thin Film Pressure Sensor
IP65 20mA SS316L Thin Film Pressure Sensor
Specifications
Brand Name :
Sier
Model Number :
SPT21
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1 piece
Price :
USD25~50/Piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces each month
Delivery Time :
7
Packaging Details :
Carton
Housing :
SS304
Pressure port :
SS304
Diaphragm :
SS316L
Sealing gasket :
Viton
Plug housing :
Plastic
Housing protection :
IP65
Description
thin film pressure transmitter
Features
➢ Reliable performance, easy applicationIP65 20mA SS316L Thin Film Pressure Sensor
➢ Short protection and reverse polarity protection
➢ Gauge, absolute and sealed gauge optional
➢ Offset and full scale adjustable
Specification
Pressure range -0.1…0～0.01…100MPa (-1…0~0.1…1000bar)
Over pressure 1.5 times FS or 110MPa (min. value is valid)
Pressure type Gauge/absolute/sealed gauge optional
Process connection G1/4 male thread (or as per customer’s requirement)
Accuracy ±0.25％FS, ±0.5％FS optional
Long term stability max. ±0.3%FS/year
Offset thermal drift 0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
Span thermal drift 0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
Compensated temp. 0~50℃
Application temp. -30~80℃
Storage temp. -40~120℃
Power supply 12~28VDC
Output signal 4~20mADC(2 wires) 0/1~5VDC(3 wires)
Load resistance ≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
Housing protection IP65
Electrical connection DIN43650 plug/M12 connector
Construction and Outline Dimension
Construction material:
Housing SS304
Pressure port SS304
Diaphragm SS316L
Sealing gasket Viton
Plug housing Plastic
IP65 20mA SS316L Thin Film Pressure Sensor
IP65 20mA SS316L Thin Film Pressure SensorIP65 20mA SS316L Thin Film Pressure Sensor
IP65 20mA SS316L Thin Film Pressure Sensor
