SPT80 High Stable Piezoresistive OEM Pressure Sensor
FeaturesFlush Diaphragm 3kΩ Input Impedance Piezoresistive Pressure Sensor For Liquid Pressure System And Switch
·Pressure range -100kPa～0kPa～10kPa…100MPa
·Gauge, absolute, sealed gauge
·Constant current power supply
·Isolated construction, enable to measure various media
·Φ19mm standard OEM pressure sensor
·Full stainless steel 316L
·Temperature compensated 0℃～50℃

Application
·Industrial process control ·Level measurement ·Gas, liquid pressure measurement
·Pressure checking meter ·Pressure calibrator ·Liquid pressure system and switch
·Cooling equipment and air conditioning system ·Aviation and navigation inspection

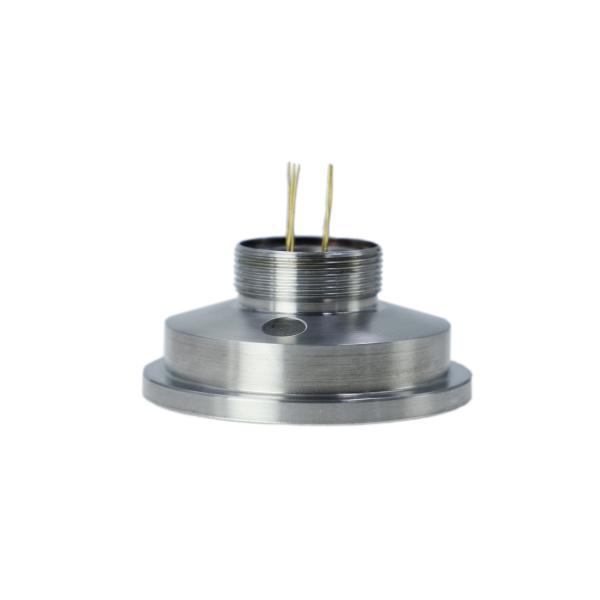

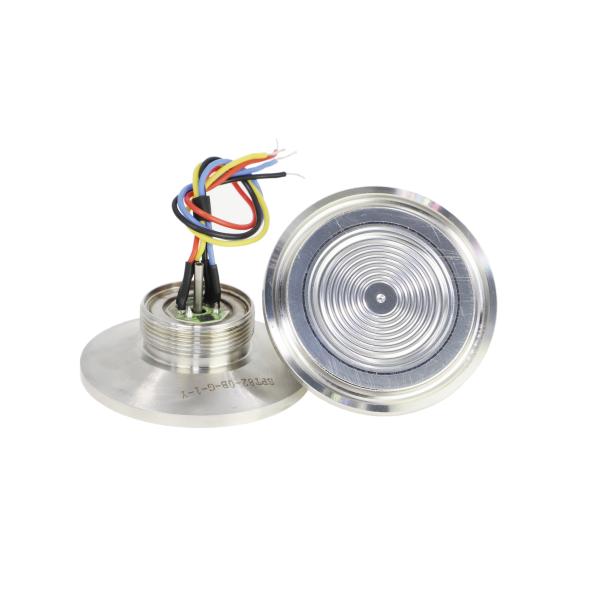

Introduction

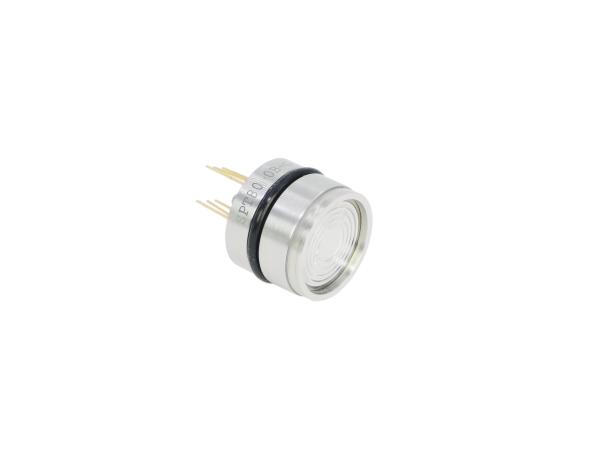

SPT80 high stable OEM sensor is the piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable silicon die. Stainless steel 316L housing with diameter Ф19mm. The measured pressure is transmitted onto silicon die through 316L diaphragm and inner media, to transform the pressure to electric signal.
SPT80 pressure sensor is inspected and screened on automatic production line, testing and checking time after time strictly. It is widely used for various pressure measurement fields.

Electric Specification

Power supply ≤2.0mADC
Electric connection Kovar pin or 100mm silicon rubber flexible wires
Common mode voltage output 50% input (typ.)
Input impedance 3kΩ～6kΩ
Output impedance 3kΩ～6kΩ
Response (10%～90%) <1ms
Insulation resistor 100MΩ, 100VDC
Overpressure 2 times FS


Construction

Diaphragm stainless steel 316L
Housing stainless steel 316L
Pin Kovar or silicon rubber flexible wires
O-ring Viton
Net weight ~16g


Environment Condition

Position effect deviate 90° from any orientation, zero change ≤±0.05%FS
Shock no change at 10gRMS,(20～2000)Hz
Impact 100g,11ms
Media compatibility the gas or liquid which is compatible with stainless steel and Viton


Basic Condition

Media temperature (25±1)℃
Environment temperature (25±1)℃
Humidity (50%±10%)RH
Local air pressure (86～106)kPa
Power supply (1.5±0.0015)mADC


Basic Specification

Specification* Min. Typ. Max. Units
Linearity ±0.15 ±0.25 %FS,BFSL
Repeatability ±0.05 ±0.075 %FS
Hysteresis ±0.05 ±0.075 %FS
Zero output ±1 ±2 mVDC
FS output 100 200 mVDC
Zero thermal error ±0.5 ±1.0 %FS,@25℃
Span thermal error ±0.5 ±1.0 %FS,@25℃
Compensated temp. range 0～50 ℃
Working temp. range -40～125 ℃
Storage temp. range -55～125 ℃
Stability error ±0.2 %FS/year
*testing at basic condition
