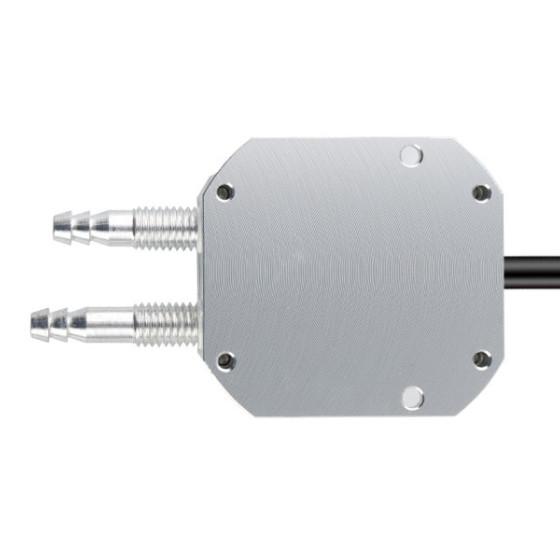

4-20ma 0-5VDC RS485 Duct Gas Differential Pressure Transducer Transmitter
4-20ma 0-5VDC RS485 Duct Gas Differential Pressure Transducer Transmitter
Specifications
Brand Name :
Sier
Model Number :
SPT91L
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1piece
Price :
USD60~100/Piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces each month
Delivery Time :
7
Packaging Details :
Carton
Measured media :
Gas Water Steam
Type :
Pressure Senor
Pressure range :
-20~20kpa
Power supply :
24VDC 12VDC 12-36VDC
Process connection :
M10X1
Product Name :
Differential Pressure transmitter
Description

Features

High precision, high stability

Anti-condensation, Anti-leakage, Anti-lightning

Imported silicon differential pressure sensing chip;

Advanced lamination technology with zero and full range compensation and temperature compensation;

High precision and high stability amplifier integrated circuit has the functions of moisture-proof, anti-condensation, anti-leakage and anti-lightning;

Diversified output signals (4-20ma, 0-5v, 0-10v).

Specification

Medium Gas (weak corrosive and dry)
Range(Pa) 100,200,500,1K,2K3K,5K,10K,20KPa;-100,-200,-500,-1K,-2K,-3K,-5K,-10K,-20K
Range(Pa) ±100,±200,±300,±500,±1K,±2K,±3K,±5K,±10K,±20K
Output 4-20ma (Two-wire system), 0-5vdc, 0-10vdc, 0.5-4.5 VDC (three-wire system)
Accuracy ±0.1%FS,±0.25%FS,±0.5%FS,±1%FS
Power supply 12VDC(9~24VDC),24VDC(15~36VDC)
Overload capacity 150%FS
Insulation resistance 1000 M or more Ω / 100 VDC
Current output type Biggest 800 Ω
Voltage output type More than 50 k Ω
Medium temperature -20~85 ℃
Ambient temperature -20~85 ℃
Storage temperature -40~90 ℃
Relative humidity 0~95% RH
Seal grade Ip65
Response time(10%~90%) ≤10ms
Stability ≤0.15%FS/year
Vibration effect Less than or equal to + / - 0.15%FS/ year (mechanical vibration
Electrical connection Frequency: 20Hz ~ 1000Hz
Standard wiring Direct lead output
Pressure connection M10
Enclosure material Aluminum alloy

Outline Construction


(Unit: mm)

4-20ma 0-5VDC RS485 Duct Gas Differential Pressure Transducer Transmitter

Application

4-20ma 0-5VDC RS485 Duct Gas Differential Pressure Transducer TransmitterChemical

4-20ma 0-5VDC RS485 Duct Gas Differential Pressure Transducer TransmitterFood processing

4-20ma 0-5VDC RS485 Duct Gas Differential Pressure Transducer TransmitterSpace industry

4-20ma 0-5VDC RS485 Duct Gas Differential Pressure Transducer TransmitterElectric power
