4-20mA 0.5-4.5v Refrigerant Pressure Sensor / Pressure Transmitter Packard
4-20mA 0.5-4.5v Refrigerant Pressure Sensor / Pressure Transmitter Packard
Specifications
Brand Name :
Sier
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces each month
Delivery Time :
7days
Packaging Details :
Carton
Automobile :
Yes
Compressor :
Support
Power(electrical) :
Connect Parkard
Accuracy(linearity,Hysteresis and Repeatability) :
0.5%F.S.(Typical)
Applicable :
Media Liquid, Gas
Pressure measurment :
Gauge Pressure, Absolute pressure, Sealing pressure
Description

Parameters

Applicable media
Liquid, Gas
Pressure range
0-60bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)

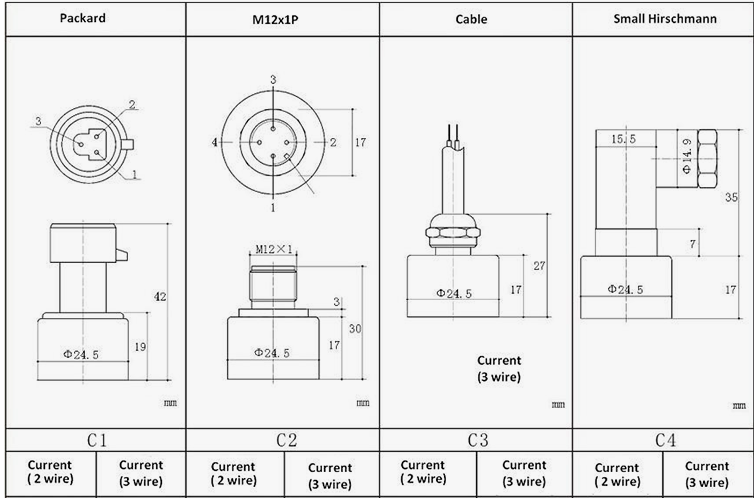

power(electrical) connect
Parkard, M12, DIN43650, Cable outlet

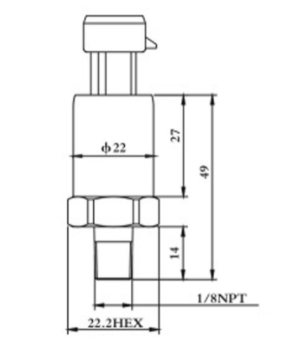

Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65
