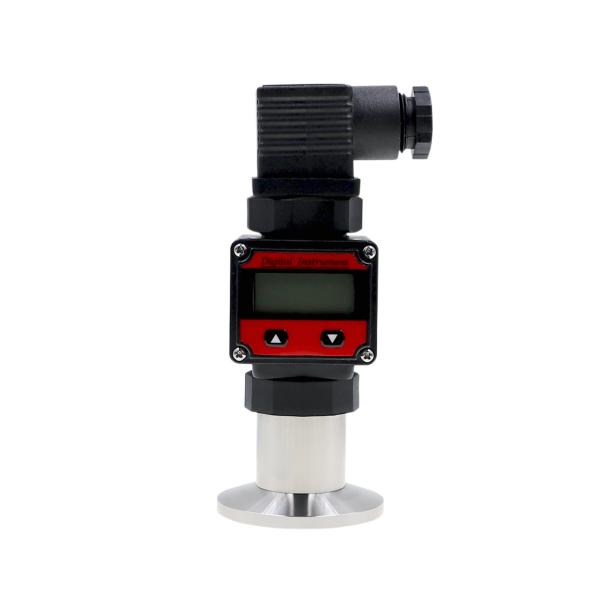

DIN43650 Sanitary Piezoresistive Pressure Transmitter Clamp Type
DIN43650 Sanitary Piezoresistive Pressure Transmitter Clamp Type
Specifications
Brand Name :
Sier
Certification :
CE,RoHS
Place of Origin :
Shaanxi, China
MOQ :
1 piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces each month
Delivery Time :
7days
Packaging Details :
Carton
Customized support :
OEM, ODM, OBM
Electronic connection :
DIN43650
Customized :
Accpetable
Over pressure :
150%FS
Output signal :
4~20mA, 1~5V,0~5V,1~10V,0~10V
Description

DIN43650 Sanitary Piezoresistive Pressure Transmitter Clamp Type

Introduction

This pressure sensor adopts series piezoresistive flat membrane silicon oil-filled sensing element as the signal measuring element, with stainless steel diaphragm which can be compatible with gas or dilute liquid With a flush diaphragm process connection, so it is mainly applied to general applications such as food,pharmaceutical and chemical liquid pressure measurement.

Specifications

Pressure range Thread:0~0.01....20MPa Clamp:0~0.035...3.5MPa
pressure type gauge (G), absolute (A), sealed gauge (S)
Overload pressure 150%FS
Accuracy ±0.25%FS(typ.) ±0.5%F.S
long-term stability ±0.2%FS/year
compensate temperature -10°C~70°C
Output signal 4~20mA 0~5VDC 1~5VDC 0~10VDC (OEM)
Power supply 5V, 12~30Vdc
electrical interface DIN43650, cable connection, 2088 shell
pressure interface M20x1.5,G1/2 ,NPT1/2(customer request)
shock 11ms
protection IP65(OEM)

Application

Process control system

Biological products

Medical

Food hygiene

Outline dimension

DIN43650 Sanitary Piezoresistive Pressure Transmitter Clamp Type

Package

Standard export package: each unit has individual box and all boxes are packed in standard packages
As the clients requirement

  • Service standards: we are committed to providing a high quality,and responsive services to all clients
  • The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
  • Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
  • Excellent package: each unit has individual box and all boxes are packed in standard packages.
  • OEM available
