Specifications
Brand Name :
XIYI
Model Number :
PMP71
Place of Origin :
China
MOQ :
1 pc
Price :
USD 1140 1PC
Payment Terms :
T/T
Supply Ability :
100 PC per week
Delivery Time :
7-14 days
model number :
PMP71
Measuring principle :
Absolute and gauge pressure
Reference Accuracy :
Standard: 0.05% Platinum: up to 0.025%
Vacuum resistance :
10 mbar (0.15 psi)
Description

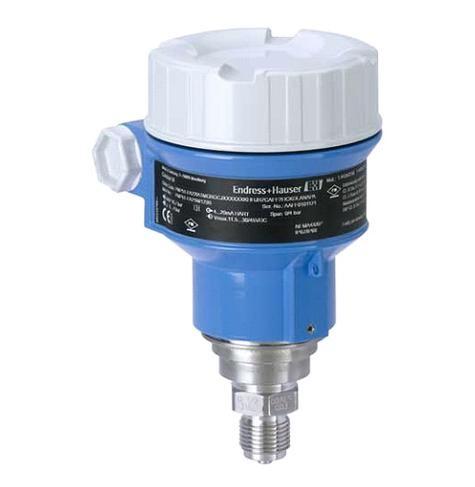

Smart Type Pressure Transmitter PMP71 Pressure Transmitter Oem Pressure Sensor

Field of application

The Cerabar PMP71 digital pressure transmitter with metallic membrane is typically used in process applications for pressure, level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Quick Setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.


Two chamber aluminum or stainless steel (316L) housing.

  • Process connections: Threads and flange connections
  • Process temperature: -40 to +125°C (-40 to +257°F)
  • Measuring ranges: -1/0 up to 700bar (-15/0 up to +10,500psi)
  • Accuracy: ±0.05%, "Platinum" ±0.025%
  • International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL

Benefits

  • Best accuracy, reproducibility and long-term stability
  • Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
  • Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
  • Overload-resistant and function-monitored from the measuring cell to the electronics
  • Available with mounted manifolds: always fit, always tested for leaks
  • Seamless and independent system integration (HART/PA/FF)
Model Number PMP71
Measuring principle Absolute and gauge pressure
Characteristic Digital transmitter with piezoresistive sensor and welded metallic membrane
Modular transmitter
Long term stability
Enhanced safety via self diagnostic functions Secondary process barrier
Supply voltage 4...20 mA HART
10,5...45V DC (Non Ex):
Ex ia: 10,5...30V DC
PROFIBUS PA:
9...32 V DC (Non Ex)
FOUNDATION Fieldbus:
9...32 V DC (Non Ex)
Reference Accuracy Standard: 0.05%
Platinum: up to 0.025%
Long term stability 0.05 % of URL/ year
0.07 % of URL/ 5 years
0.1 % of URL/ 10 years
Process temperature -40°C...125°C
(-40°F...257°F)
Ambient temperature -50°C...85°C
(-58°F...185°F)
Measuring cell 100 mbar...700 bar
(1.5 psi...10.500 psi)
relative/ absolute
Smallest calibratable span 5 mbar (0.075 psi)
Vacuum resistance 10 mbar (0.15 psi)
Max. Turn down 100:1
Max. overpressure limit 1050 bar (15.750 psi)
Process connection Thread:
G1/2...G2, R1/2, MNPT1/2...MNPT2, R1/2
Flange:
DN25...DN80,
ASME 1"...4",
JIS 10K...20K
Material process membrane 316L, AlloyC,
Rhodium> Gold
Material gasket None, measuring cell welded
Fill fluid Silicone oil,
Inert oil
Material housing Die-cast aluminum,
AISI 316L
Communication 4...20 mA HART
1- 5V DC Low Power
PROFIBUS PA
FOUNDATION Fieldbus
Certificates / Approvals ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC, UK Ex
Safety approvals SIL
Design approvals EN10204-3.1
NACE MR0175
Drinking water approvals NSF
Marine approvals GL/ABS
Specialities Diagnostic functions
Successor PMD55B
