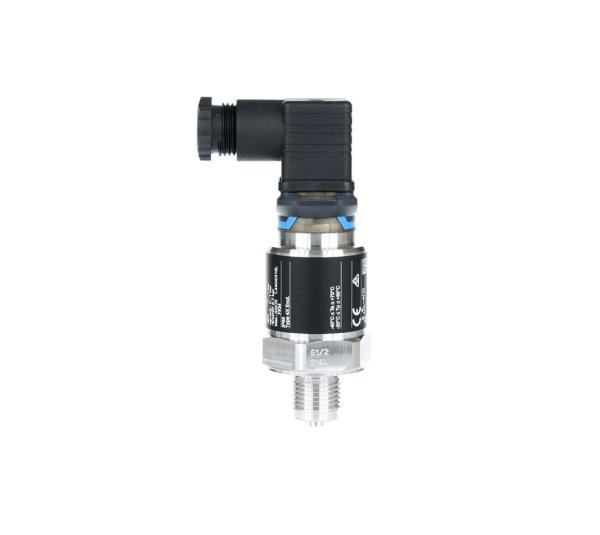

Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Pressure Transmitter Cerabar PMC21 Absolute Pressure Gauge Pressure Sensor Ceramic Membrane
Specifications
Brand Name :
XIYI
Model Number :
PMC21
Place of Origin :
China
MOQ :
1 pc
Price :
USD 400 1PC
Payment Terms :
T/T
Supply Ability :
100 PC per week
Delivery Time :
7-14 days
Description

Field of application

The Cerabar PMC21 is a very compact pressure transmitter. It features a capacitive, oil-free ceramic sensor and is able to measure absolute or gauge pressure from 100mbar up to 40bar. It is designed to withstand the harsh conditions in the process industry with ingress protection grades up to IP68 and highly abrasion resistant Ceraphire membrane as well as high quality 316L housing. It can be used in most areas as it offers various certifications like hazardous area or marine certificates.

Pressure transducer with capacitive, oil-free ceramic sensor to measure absolute or gauge pressure in gases or liquids.

  • Process connections: Threads
  • Process temperature: -25 to +100°C (-13 to +212°F)
  • Process pressure: 100mbar to +40bar (1,5 to +600psi)
  • Accuracy: ±0.3% of span
  • International explosion protection certificates, marine approvals, cleaning for oxygen applications

Benefits

  • Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges
  • High reference accuracy of 0.3% together with high long- term stability and repeatability ensures a high quality of process monitoring. High quality guaranteed by 100% test coverage during production
  • The high process availability even in difficult process environment is guaranteed due to various cleaning options and connection options. Furthermore IP68 version are available
  • The need for documentation and traceability as well as safety in the plant can be supported by PMC21 as it ensures the compliance to various hazardous area and marine certifications and features optional EN10204 3.1 material certificates

item value
Warranty 1 Year
Customized support OEM
Place of Origin Germany
Model Number Cerabar PMP21
Measuring Principle Absolute and gauge pressure
Characteristic Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm
Supply Voltage 10…30 VDC
Reference Accuracy 0.3 %
Long Term Stability 0.2 % of URL/year
Process Temperature -40 °C…+100 °C
(-40 °F…+212 °F)
Ambient Temperature -40 °C…+85 °C
(-40 °F…+185 °F)
Measuring Cell +400 mbar…+400 bar
(+6 psi...+6000 psi)
Max. Overpressure Limit 600 bar (9000 psi)
Process Connection Threads:
G1/4, G1/2,
MNPT1/4, MNPT1/2,
DIN13,
JIS R1/2
Communication 4...20 mA, IO-Link
Certificates/ Approvals ATEX, FM, IEC Ex, NEPSI, UK Ex
Marine Approvals DNV/ GL/ ABS/ LR/ RINA
