Specifications
Brand Name :
DKLD
Model Number :
DH
Certification :
CE
Place of Origin :
Jiangsu,China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per week
Delivery Time :
15 days
Packaging Details :
Export-Standard Carton Box with PE Foam Inside
Battery Capacity :
1000mAh
Features :
High-precision, High-sensitivity
Color :
Red
Function :
Control Crane
Material :
Industrial grade plastic
Name :
Crane Remote Control
Size :
260mm x 160mm x 65mm
Warranty :
1 Year
Power Supply :
Battery
Product Name :
Crane Remote Control
Weight :
1000g
Description

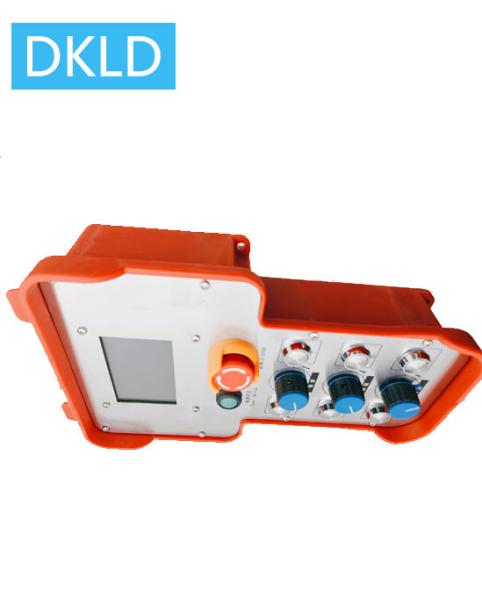

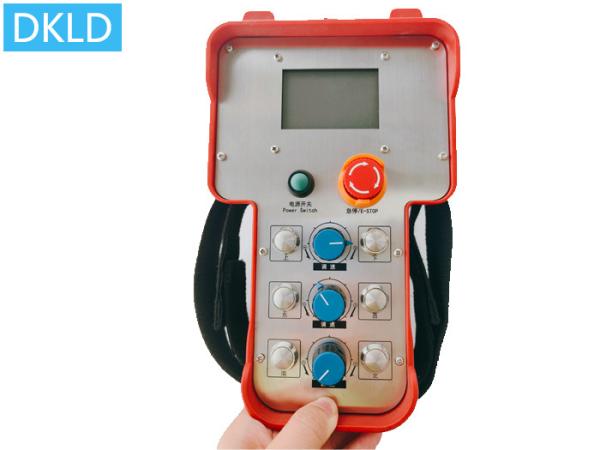

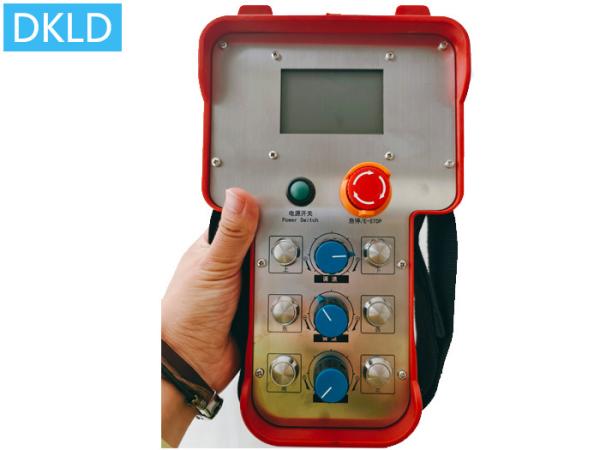

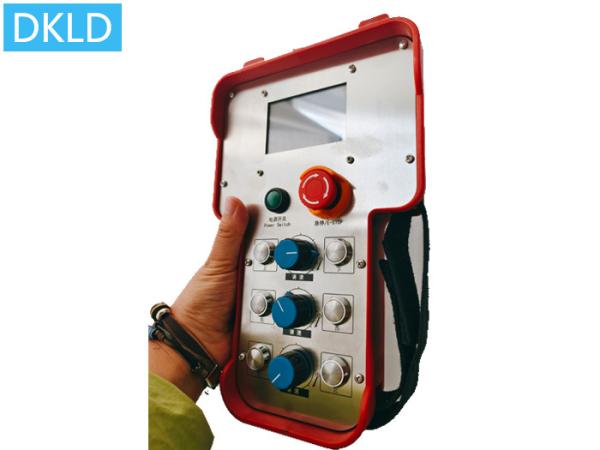

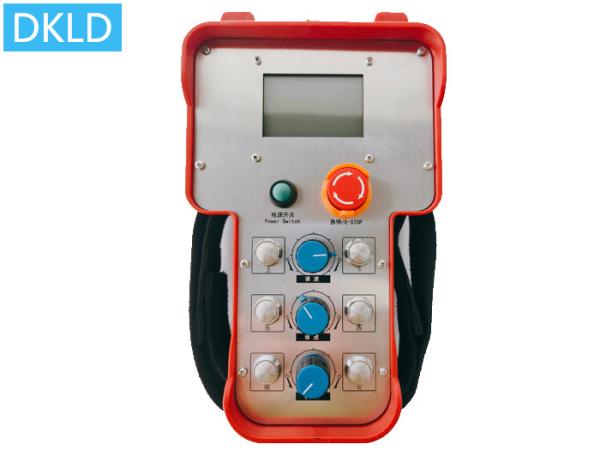

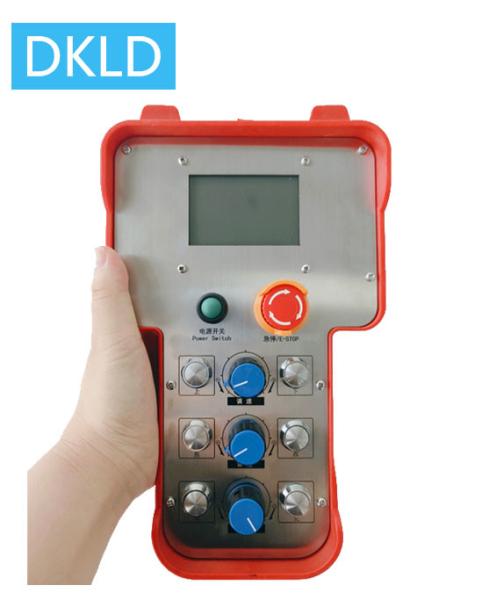

Six-way weight acquisition feedback display crane wireless remote control
The entire set includes 1 transmitter+1 receiver+1 analog input collector, with a built-in receiver and an external extended suction cup antenna.
Once the weight exceeds the set upper limit value, it can only descend and cannot ascend. At this time, the remote control has a self program judgment internally and automatically determines the action control logic of only descending but not ascending.
Product model DHQ-6FD12KMR (ACDC12-24V/open space of 100 meters/1 generator, 1 receiver, 1 acquisition/16 switching values+1 emergency stop/bidirectional feedback analog input weight/limit weight only decreasing logic judgment), other voltages such as AC220V or AC380V are adapted through external transformer voltage conversion
If the receiver directly outputs RS485, it is directly connected to the overload limiter with RS485 interface, and there is no need to lay out the collector separately. Other voltages such as AC220V or AC380V are adapted through external transformers.

Six-Way Weight Acquisition Feedback Display Crane Wireless Remote Control

Six-Way Weight Acquisition Feedback Display Crane Wireless Remote Control

Product highlight: Good anti-interference performance, with unique identification codes between each remote control transmitter and receiver, reaching hundreds of millions of sets, never repeating, and strictly avoiding mutual interference and potential interference. And the remote control has up to 50-256 frequency points, and each set in the same environment can be configured with separate frequency points. Even if the frequency points overlap, given the uniqueness of the ID identification code, there will be no impact on each other, ensuring safety and reliability.
Usage: crane, overhead crane, crane, electric hoist, gantry crane, cantilever crane, portal crane, port crane, wharf crane, ship crane, bridge erecting machine, beam lifter, etc. within the 4-point switching value, as well as elevators, hoists, lifting platforms, winch, motors, plate shears, sand screeners, concrete pumps, electric flat cars, industrial furnace doors, winch winches, etc.
Emitter
Frequency MHZ
433
Transmitter RF power mW

Less than 10
Remote control distance M
150/250
Power supply DC
DC4.5V
Modulation
GFSK
Frequency control
PLL
Antenna impedance Ω
50
Command response time ms

Less than 40
Working temperature ℃
-35℃~75℃
Protection grade
IP65

Receiver

Frequency MHZ
433
Receiving sensitivity dBM

-112
Remote control distance M
150/250
Power supply DC
DC12-24V
Modulation
GFSK
Frequency control
PLL
Antenna impedance Ω
50
Command response time ms

Less than 40
Working temperature ℃
-35℃~75℃
Antenna mode

External suction cup type
