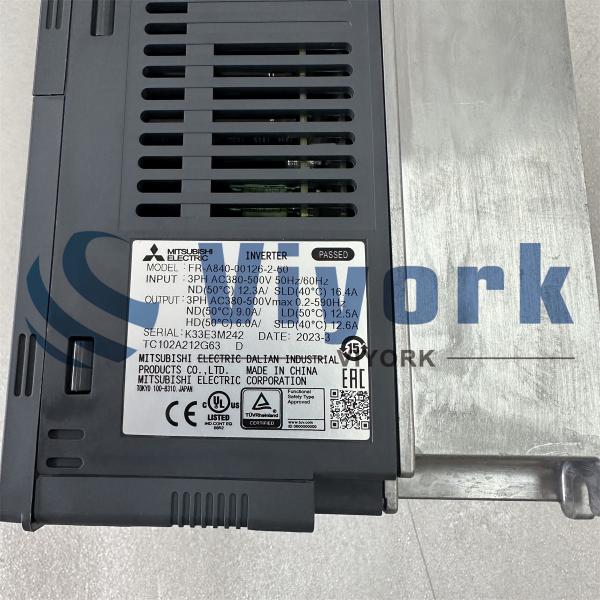

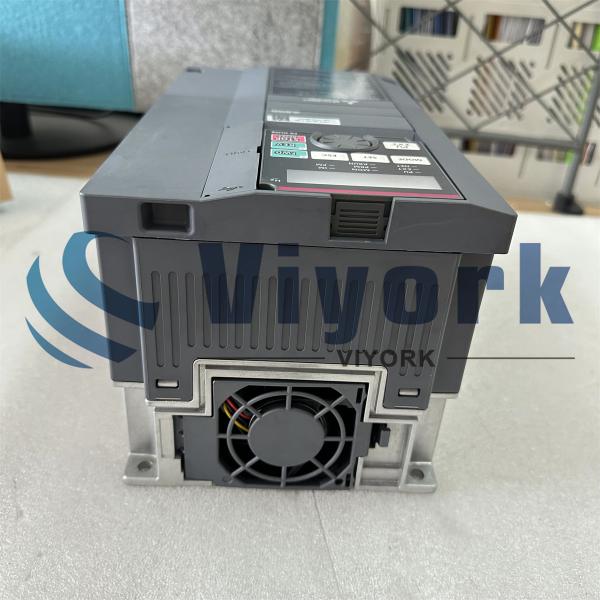

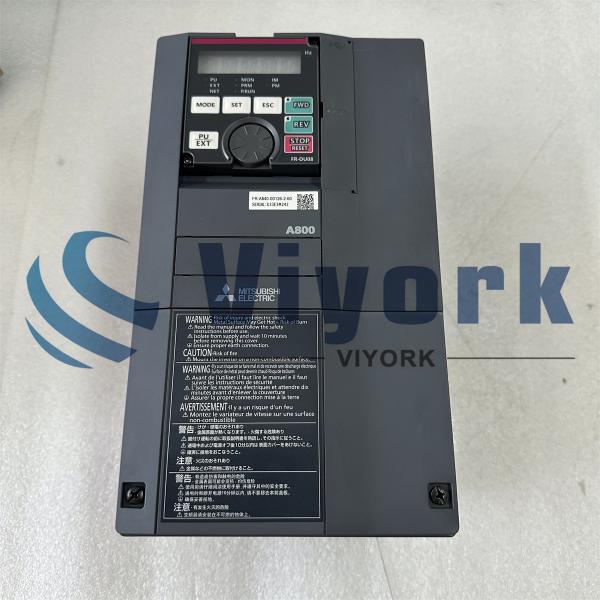

FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW
Specifications
Brand Name :
Mitsubishi
Model Number :
Mitsubishi FR-A840-00126-2-60
Certification :
CE
Place of Origin :
Japan
MOQ :
1 PC
Price :
1-500USD
Payment Terms :
T/T, Western Union
Supply Ability :
30 PCS/ PER Month
Delivery Time :
2-3 days
Packaging Details :
Original box
Brand :
Mitsubishi
Model :
Mitsubishi FR-A840-00126-2-60
Type :
Industrial Inverter
Origin of Country :
Japan
Voltage :
380-500V
Condition :
NEW
Description

FR-A840-00126-2-60 Mitsubishi AC Inverter Drive Speed Controller 5.5KW 380-500V NEW

DESCRIPTION

Series

FR-A SERIES

Type

FR-A800-E INVERTER

Minimum Rated Voltage (V)

380

Min. Permissible Voltage (V)

323

Maximum Rated Voltage (V)

500

Max. Permissible Voltage (V)

550

Current Type

AC

Phases

3

Rated Output Current SLD (A)

12,6

Rated Output Current LD (A)

11,5

Rated Output Current ND (A)

9

Rated Output Current HD (A)

6

Rated Motor Capacity SLD (kW)

5,5

Rated Motor Capacity LD (kW)

5,5

Rated Motor Capacity ND (kW)

3,7

Rated Motor Capacity HD (kW)

2,2

Frequency Range (Hz)

0,2–590

Control Method

VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL

Motor Type

INDUCTION MOTOR, PM MOTOR

Brake Chopper ED (%)

100

Integrated EMC Filter

YES

Safe Torque Off (STO)

YES

Regenerative (4Q)

NO

Integrated DC Choke

NO

Display

FR-DU08

Display Type

5 DIGITS LED (12 SEGMENT)

PLC Function

YES

Program Memory

6K

Program Memory Unit

STEPS

Integrated Digital Inputs

12

Digital Outputs (Transistor)

5

Digital Outputs (Relay)

2

Integrated Analogue Inputs

3

Integrated Analogue Outputs

2

IO Type of Terminal Block

SPRING CLAMP

Expandable

YES

RS-485

OPTIONAL

USB

1+1 MINI

Ethernet Port

1

Built-In Network

CC-LINK IE FIELD NETWORK, MODBUS/TCP, CC-LINK IE FIELD NETWORK BASIC

Leakage Current (mA)

35(DELTA) / 2(STAR)

Power Loss SLD (W)

175

Power Loss LD (W)

160

Power Loss ND (W)

130

Power Loss HD (W)

90

Standby Power Consumption (W)

19

Protection Class

IP20

Details

AC Motion Servo drive unit / amplifier with fully closed-loop control (four-wire type) - Mitsubishi Electric (MELSERVO J4 series) - Supply voltage 200Vac (Single phase input or 3-phase input / 200Vac-240Vac); 283Vdc-340Vdc - Rated power 100W / 0.1kW - with Encoder input (22-bit / 4194304pulses/revolution resolution) - with RS-422 / RS-485 communication capability - IP20 - with Built-in dynamic brake + Natural cooling - USB connector - compatible with HG-KR053(B); HG-KR013(B); HG-MR053(B); HG-MR013(B); HG-KR053(B)W0C; HG-KR13(B)W0C - rated for 0-55°C ambient

Melservo MR-J Servo Drives and Motors with Amplifier Controllers.

(1) Servo amplifiers and servo motors used Use the servo amplifiers and servo motors which comply with the standard model.

Servo amplifier :MR-J2S-10B to MR-J2S-22KB MR-J2S-10B1 to MR-J2S-40B1

Servo motor :HC-KFS HC-MFS HC-SFS HC-RFS HC-UFS HA-LFS HC-LFS

(2) Installation Install a cooling fan of 100CFM (2.8m3/min) air flow 4 in (10.16 cm) above the servo amplifier or provide cooling of at least

equivalent capability.

(3) Short circuit rating This servo amplifier conforms to the circuit whose peak current is limited to 5000A or less. Having been subjected to the

short-circuit tests of the UL in the alternating-current circuit, the servo amplifier conforms to the above circuit.

(4) Capacitor discharge time The capacitor discharge time is as listed below. To ensure safety, do not touch the charging section for 10 minutes

after power-off.

Showing of parts.

MR-J Description Condition
MR-J2S-350B Mitsubishi MR-J MOTOR (MITMRJ2S350B) NEW
MR-J-350A-S12 MR-J Servo Amplifier (MRJ350AS12) NEW
MR-J2-100A MR-J SERVO AMPLIFIER 1KW 3 PHASE 50-60HZ 200-230V (MRJ2100A) NEW
MR-J2-03A5 MR-J Servo Amplifier 10W 24VDC INPUT (MRJ203A5) NEW
MR-J2-100A-S01 SERVO DRIVE AMPLIFIER 1KW 200-230V 50-60HZ 3 PHASE (MRJ2100AS01) NEW
MR-J2-100B MR-J SERVO DRIVE 1KW 200V (MRJ2100B) NEW
MR-J2-100C MR-J Servo Amplifier 1KW 200V (MRJ2100C) NEW
MR-J2-100C-S100 Mitsubishi SERVO CONTROLLER 1KW 200V (MRJ2100CS100) NEW
MR-J2-100CT Mitsubishi MR-J BOARD (MRJ2100CT) NEW
MR-J2-10A Mitsubishi MR-J SERVO CONTROLLER 100W 200V (MRJ210A) NEW
MR-J2-10A1 SERVO DRIVE 0.1KW 3 AMP 100-120VAC 1 PHASE (MRJ210A1) NEW
MR-J2-10B MR-J Servo Amplifier 100W 200V SSC NETWORK (MRJ210B) NEW
MR-J2-10C SERVO CONTROLLER 3 PHASE 100W 0.9 AMP 200-230VAC (MRJ210C) NEW
MR-J2-40A-A28 Servo Amplifier 400W 230V 50/60HZ (MRJ240AA28) NEW
