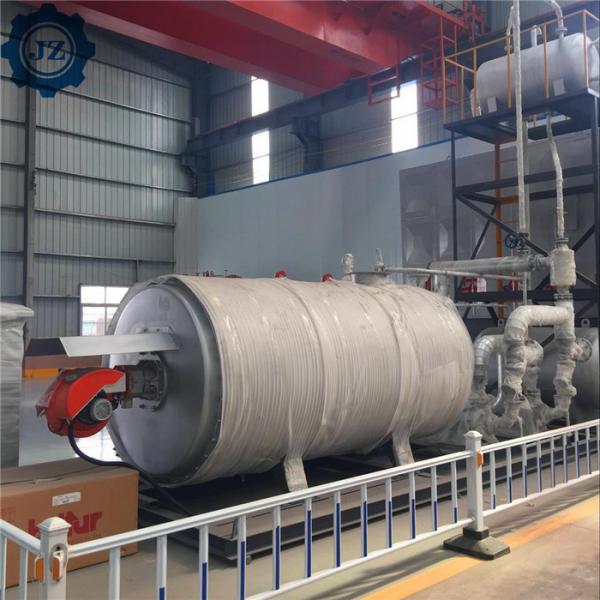

China Factory Supply Natural Gas Oil Fired Thermal Fluid Heater For Chemical Industry

General introduction

Thermic Fluid Heater, thermal oil boiler

Heat Power:300,000-2,000,000 Kcal/H

Working Pressure :0.8 Mpa

Fuel :light oil,heavy oil,diesel

Application : textile printing and dyeing, plastic and rubber, paper industry, wood industry, building material, food industry

YY(Q)W series thermal oil boiler adopts horizontal chamber combustion three-coil structure,and its body is composed of outer coil,middle coil,inner coil and rear coil. It is widely applied for oil chemical industry, chemical fiber industry, wood processing industry, paper making industry, building materials industry, food industry,etc.

The thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.

This thermal Oil Boiler have advanced program control system, equipped with liquid level controller, pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.

Main features of industrial thermal oil boiler

1, larger coil combustion chamber can make the combustion in low temperature and reduce the nitrogen oxides emissions with the characters of energy saving and environmental protection.

2, the thermal oil heater structure increases the thermal efficiency. And the high-density ring tube design structure can also reduce the occupation space.

3. The reasonable circulation section structure of multi-pass heat transfer ensure the thermal oil flow load uniform and the operation stable

4, complete control system with warning system, easy operation, safe operation.

5. Spiral coil inside and outside the furnace is composed of many small diameter tube with the advantage of good performance thermal expansion and low pressure.

6, The output (oil) temperature can be accurately controlled. Medium temperature, pressure and smoke temperature protection can also be controlled.

The thermal oil heaters in assembly structure is easy for installation by just connecting system devices. Intelligent control system makes heater operation control easy. Controller with screen display has auto igniting, burning, circulation pumps control, alarm and other control functions.

Thermal oil boiler are insulated with rock wool, whose thickness of which is 100 mm to minimize heat loss and the rock wool is covered with embossed metal sheet, whose thickness of which is 0.8 mm.

Technical Specification

Installation drawing

Scope of application:
