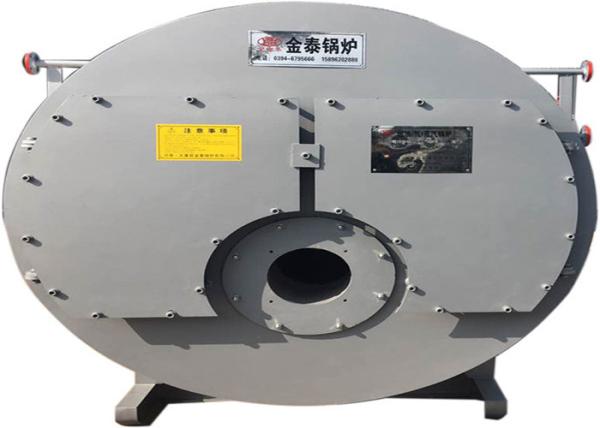

Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant
Specifications
Brand Name :
Jinzhen Boiler
Model Number :
WNS1-1.25-YQ
Certification :
IS0900
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80 set per month
Delivery Time :
5-8 working days
Packaging Details :
Steam Boiler in nude package, but covered with water-proof covering, accessories in plywood case
steam capacity :
1 ton/h, 1000kg/h
Pressure :
0.7/1.0/1.25mpa
Steam Temperatur :
170/184/194C
Material :
Q245R Steel Plate
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Style :
Horizontal
Thermal efficiency :
92.4%--94.5%
Output :
steam
Suitable fuel :
oil,gas, IPG, city gas
boiler heating area :
30m2
feed water temperature :
30C
total power :
3.6kw
weight :
4t
size :
3.6*2*2
warranty :
2 year
Description

Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant

Model: industrial gas oil fired steam boiler

Structure:horizontal fire tube, wet back, three pass

Steam Capacity:1-20ton/hour

Steam Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)

Steam Temperature:184 °c,194°c, 204°c,226°c(As long as the steam temperature you need is lower than 226°c, we can do it).

Fuel:heavy oil, light oil, natural gas, city gas, lpg,lng,etc

Application: textile mill, food, beer and brewery factory,chemical industry, garment factory, printing mill, paper masking industry,milk pasteurization, pharmaceutical industry etc.

The gas-fired steam boiler adopts the structure of mechanical and electrical integration, with generous appearance, compact structure, less space occupation, convenient transportation and less capital investment. It not only follows the concept of energy conservation and environmental protection, but also meets the thermal energy required by the project. In terms of production and use, this kind of boiler really achieves clean combustion, pollution-free emission, convenient operation and sufficient output.

Boiler Advantage

1.High pressure water supply pump

2.Burner:Italy :Baltur, Riello,Opel

Germany:Weishaupt,Elco

Finland:Oilon

High combustion efficiency, and ignition process control and overvoltage flameout protection function.

3.Electric control cabinet:

Touch screen

Two language

PLC control system

The functions of automatic water supply, automatic ignition, overpressure and overtemperature,?flameout, advanced remote control function, on-line monitoring of dosage and fault alarm .

4.Automatic water treatment

Reduce the content of in water,avoid scaling of boiler,prolong boiler service life.

5.Steam header

According to the customer demands, design the cylinder outlet size and quantity

Heavy oil /Light oil/Natural gas/Liquefied petroleum gas ( LPG )/Coke Oven Gas(COG)

Technical Parameter

Model

Rated evaporation

capacity (t/h)

Rated steam

pressure (Mpa)

Thermal efficiency

(％)

 Fuel consumption

Overall dimension

(m)

Weight

(t)

Body Heating

Area (m2)
Light oil (Kg/h) Natural gas (Nm³/h)
WNS1-0.7/1.0-Y(Q) 1 0.7/1.0 >90 66.5 75 3.6×2.0×2.0 4 25
WNS2-1.0/1.25-Y(Q) 2 1.0/1.25 >90.2 133 150 4.8×2.5×2.46 8 60
WNS4-1.0/1.25-Y(Q) 4 1.0/1.25 >91 266 300 5.8×2.85×2.8 13 113
WNS6-1.25/1.6-Y(Q) 6 1.25/1.6 >91.5 399 450 7.25×3.1×3.15 19 181
WN8-1.25/1.6-Y(Q) 8 1.25/1.6 >91.6 532 600 7.45×3.26×3.2 22.6 190
WNS15-1.25/1.6-Y(Q) 15 1.25/1.6 >91.8 997 1125 8.7×3.7×3.5 34 346
WNS20-1.25/1.6-Y(Q) 20 1.25/1.6 >92 1204 1418 10×3.6×4.0 45 467
Note: Parameter is for reference only, we can design the boilers based on customers’ needs

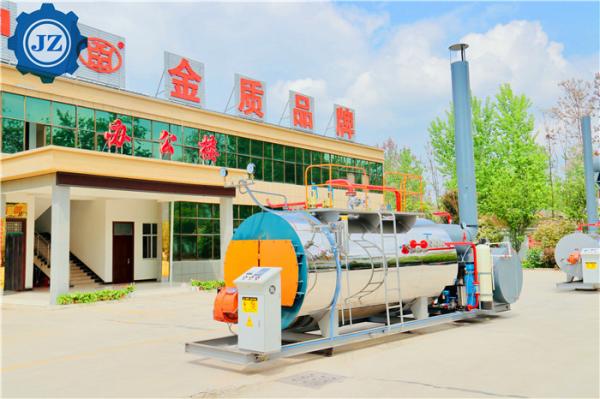

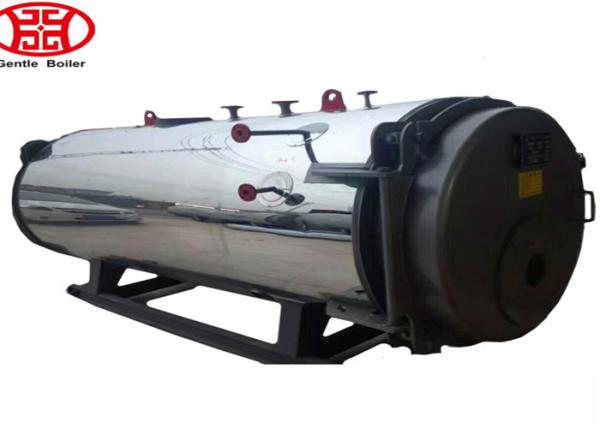

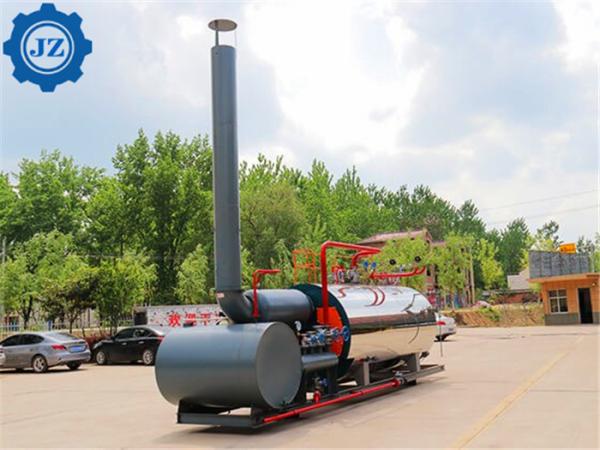

Boiler Picture

Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant

Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant

Industrial Usage And Horizontal Style Gas Fired Steam Boiler For Yoghurt Processing Plant

Application

Gas/oil fired steam boiler is widely used in hospitals, schools, textile mills, garment factories, large supermarket, garment factories, dyeing factory, hotel, dining room, restaurant, food factory, beverage factory, soy products, meat products factory, cannery, brewery, pharmaceutical factory, packaging plant, building materials factory, paint factory, swimming pool and other places of the enterprises and institutions.

FAQ

1. What are the available fuel for the oil gas fired boiler?

Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.

2. Whether the boiler can burn dual fuel or multi-fuel?

Gentle boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.

3. What is the texture of spirally corrugated tube?

The texture of spirally corrugated tube is 20#.

4. The brand of burner?

The brands of burner are Italy Baltur, Rellio, Elco, etc.

5. What is the thickness of combustion chamber?

the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.

6. What is the advantages of fire tube boiler?

This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1!

7. Details of electric control cabinet.

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

8. What is the inlet pressure of gas burner?

The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
