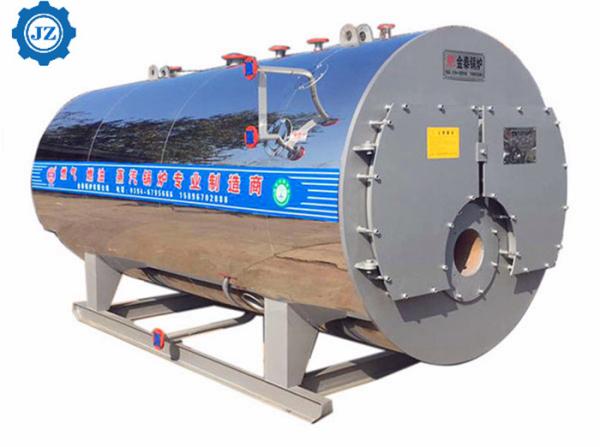

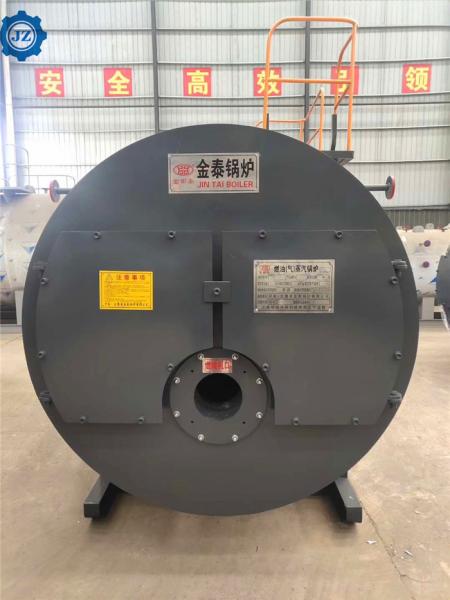

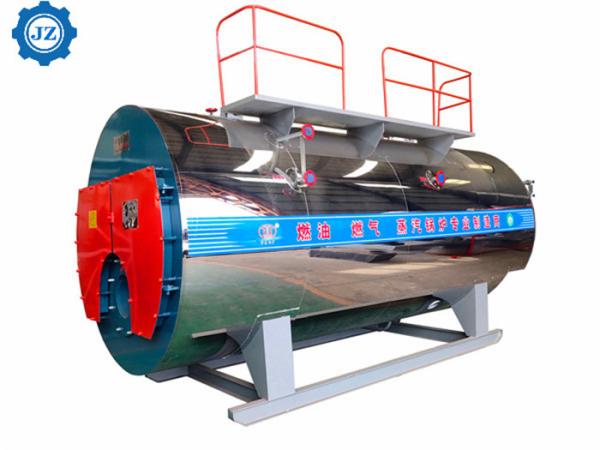

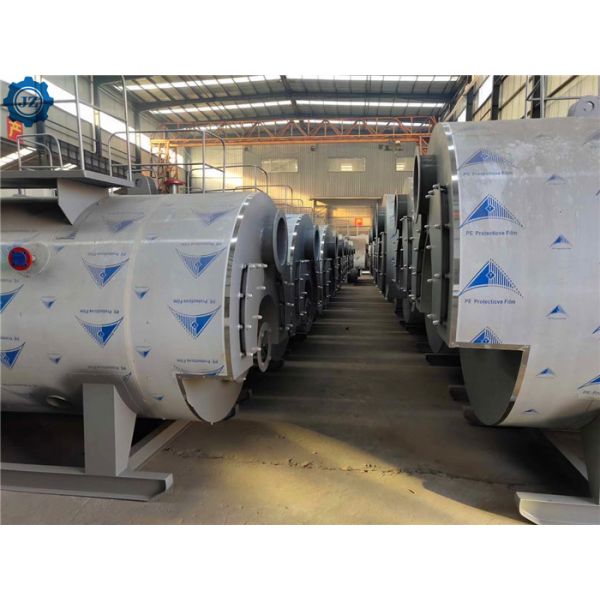

1t 2t 3t 4t 5t 6t 8t 10t High Efficiency Commercial Natural Gas Oil Diesel Fired Steam Boilers In China

Model:WNS Series Oil Gas Steam Boiler

Structure:Wet Back Fire Tube Packaged Three Pass

Fuel:oil, gas, light oil, heavy oil, natural gas, lpg, lng, cng, diesel, biogas etc

Capacity:1-20 ton per hour

Pressure:0.7/1.0/1.25/1.6 Mpa (7/10/12.5/16 Bar)

Temperature:170/184/194/204 Celsius

Application:Chemical, food and brewery, pharmaceutical, package plant, textile dyeing and printing industry, swimming pool, hospital,school,clothing industry etc.

WNS type steam boiler wet back type three return all the corrugated furnace, threaded smoke tube, heat has good scalabiity.The tube plate and the cylinder body adopts the flanged connection structure, the main body of weld butt structure, all adopt the automatic submerged arc welding. Heating area is abundant, large hearth structure, micro positive pressure combustion,combustion heat load is low, less emissions of harmful substances, many boiler combustion chamber design is reasonable,fully adapt to city gas, natural gas,light diesel oil, heavy oil and other fuels, fuel in the hearth of the micro positive pressure combustion, burning completely, less pollutants from flue gas, boiler flue gas blackness, the blackness of the smoke and dust concentration and noise technical indicators were better than the national a class area standards.

The main features

1. The overall structure is reasonable and compact, belonging to the packaged steam boiler which meets the delivery conditions of quick installation.This steam boiler is composed of three parts when it leaves the factory;The main steam boiler, chimney and piping system, in which the main engine and chimney parts have been manufactured in the factory, and the piping valves and instruments supporting the main boiler have been installed randomly, and then transported to the site to assemble the main engine and chimney.On the spot connect the air source, power supply and water pipeline to start the test.Greatly shorten the installation cycle, and can guarantee the quality of products.

2. Advanced design performance.The main boiler is of integral structure, the burner is assembled on the cover of the front smoke box, and the main body is arranged with heating surface and combustor.With reasonable structure, compact, low steel consumption, furnace with offset waveform furnace, thermal insulation layer choose new lightweight heat insulation material, outer packing USES color sheet, appearance packaging for cuboid, the boiler performance, weight, structure size and appearance modelling and compared with the capacity of the domestic product has obvious advancement and the look and feel.The boiler feed water equipment is arranged on the boiler base on the right side of the boiler so that it can be integrated with the main engine without having to make another foundation.

3. Our packaged steam boiler is simple water circulation, reasonable structure of pressurized parts, safe operation under the condition of ensuring water quality.

4. Complete auxiliary equipment and advanced comprehensive technical performance.
