Specifications
Brand Name :
Jinzhen Boiler
Model Number :
WNS1.5-1.0
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
100 set per month
Delivery Time :
15 days
Packaging Details :
wooend package
steam capacity :
1.5ton, 1500kg
pressure :
10bar,13bar
temperature :
150C-194C
type :
horizontal
structure :
firetube
fuel :
diesel, light oil, heavy oil
thermal efficiency :
95%
material :
boiler plate
output :
steam
Usage :
Industrial,Garment manufacturer,Industrial/Power station,Industry or Power Station,Steam Outputing
Pressure :
Low Pressure(1.25MPa)
Description

Industrial 2Ton 2000kg 150Psi Diesel Oil Fired Steam Boiler For AAC Steam-Cured Brick Production Line​

Model:WNS Series Oil Gas Steam Boiler

Structure:Wet Back Fire Tube Packaged Three Pass

Fuel:oil, gas, light oil, heavy oil, natural gas, lpg, lng, cng, diesel, biogas etc

Capacity:1-20 ton per hour

Pressure:0.7/1.0/1.25/1.6 Mpa (7/10/12.5/16 Bar)

Temperature:170/184/194/204 Celsius

Application:Chemical, food and brewery, pharmaceutical, package plant, textile dyeing and printing industry, swimming pool, hospital,school,clothing industry etc.

WNS series oil and gas steam boiler adopts shell type full wet back type fire tube structure. The structure adopts three return journeys, in which the oil or gas is well atomized by the burner and fully mixed with the air, and is completely burned in the corrugated furnace bile, and then turns from the rear smoke chamber into the return smoke pipe, turns to the front smoke box into the return smoke pipe, enters the back smoke box, and is discharged by the chimney.The size of the furnace liner we choose is large, which provides conditions for the full combustion of fuel, so this packaged steam boiler can burn heavy oil, light oil, natural gas and city gas. In addition, our company adopts threaded smoke pipe in the design, and the relative flow rate can control low smoke resistance, low power consumption and large load regulation ratio under the guarantee of sufficient heat transfer.

Boiler Advantage

Advanced three pass wet back design:adopts the most sophisticated three returns all wet back structure,thread smoke tube structure, weld joint with high quality.

Advanced manufacturing equipment endows Safe and reliable property:adopts corrugated furnace lamps, multi-chain protection. Water level, steam pressure, gas pressure protection. And before leaving factory, all the boiler have been rigorous inspection and testing, including pressure tests and X-ray detection.

Large boiler proper heating area:adopts unique design of a large combustion chamber which increases the radiation heating furnace area, reducing the size of the boiler, reducing the NOX emissions.

High efficiency 98%:with threaded pipe and high effective insulation materials and econoizer, increasing the heat transfer and improve boiler thermal efficiency.

PLC intelligent controller:boiler control system suitable for high temperature, high humidity environment of long-term operation.

High standard: strictly in accordance with Chinese national norms and standards of production, all boiler pressure parts are of high quality steel.

Technical Parameter

Boiler Model WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6 WNS8 WNS10 WNS15 WNS20
Rated steam capacity(T/H) 0.5 1 2 3 4 6 8 10 15 20
Rated steam pressure(Mpa) 1.0/1.25/1.6/2.5
Rated steam temperature() 184/194/204/226
Feed water temperature() 20/104
Thermal efficiency(%) >98
Nox emission(mg/m3) 120/80/30
Exhaust gas temperature() <60
Fuel type Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas
Fuel consumption Light diesel oil(kg/h) 32.5 64.6 129.3 192.9 258.2 388.6 514.6 641.7 960.1 1276.2
Natural gas(Nm3/h) 35.7 70.1 140.3 212.1 283.4 424.2 566.3 707.8 1061.7 1415.8
Max transportation weight(t) 3.5 5.5 8.0 10.7 11.6 17.5 22.5 26.8 35.2 45.5

Executive Standard

1. Design, manufacture, assembly, experiment and acceptance of boilers in strict accordance with national and industrial standards, including but not limited to the following standards: GB/T16508 Boiler Shell Boiler, TSG G0001 Boiler Safety Design Supervision Code, GB50273 Boiler Installation Engineering Construction and Acceptance Code

2. The main steel used in the boiler is 20 GB/T3087, which ensures the safety and reliability of the boiler.

3. Welding materials shall be selected according to NB/T47018. Full penetration welding with argon protection shall be performed on the boiler tube.

Safety control system
We design the safety interlock system with multiple protection and alarm functions
- Protection program of automatic ignition
- Locking and protection program of operation
- Protection program of extinction
- Protection program of completion
- Protection program of water pumps (pressure loss)
- Protection program of ignition failure
- Protection program of combustion engine malfunction
- Protection program of combustion engine flameout
- Sound-light alarm of high pressure
- Sound-light alarm of high limit water level
- Sound-light alarm of low limit water level
- Sound-light alarm of super-high temperature of hot water

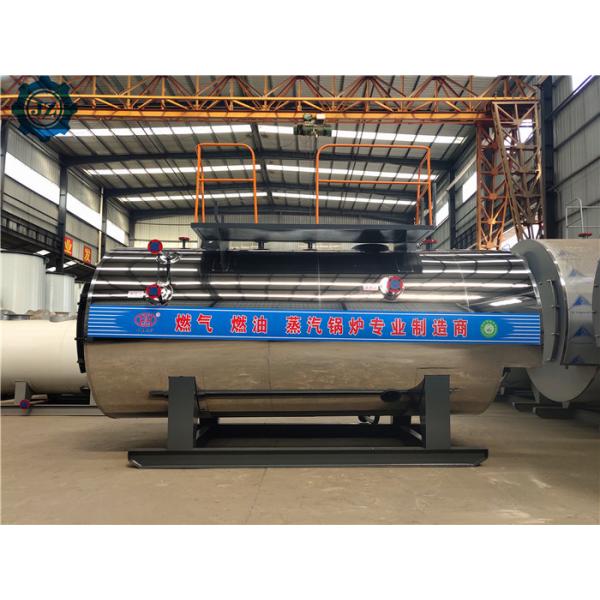

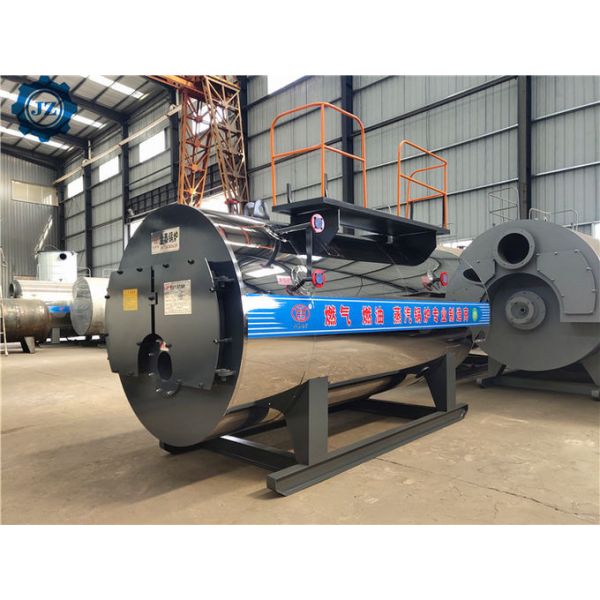

Steam Boiler Picture

Industrial 2Ton 2000kg 150Psi Diesel Oil Fired Steam Boiler For AAC Steam-Cured Brick Production Line

Industrial 2Ton 2000kg 150Psi Diesel Oil Fired Steam Boiler For AAC Steam-Cured Brick Production Line

Industrial 2Ton 2000kg 150Psi Diesel Oil Fired Steam Boiler For AAC Steam-Cured Brick Production Line
