1.High pressure water supply pump

2.Burner:Italy :Baltur, Riello,Opel

Germany:Weishaupt,Elco

Finland:Oilon

High combustion efficiency, and ignition process control and overvoltage flameout protection function.

3.Electric control cabinet:

Touch screen

Two language

PLC control system

The functions of automatic water supply, automatic ignition, overpressure and overtemperature,?flameout, advanced remote control function, on-line monitoring of dosage and fault alarm .

4.Automatic water treatment

Reduce the content of in water,avoid scaling of boiler,prolong boiler service life.

5.Steam header

According to the customer demands, design the cylinder outlet size and quantity

Heavy oil /Light oil/Natural gas/Liquefied petroleum gas ( LPG )/Coke Oven Gas(COG)

Technical Parameter

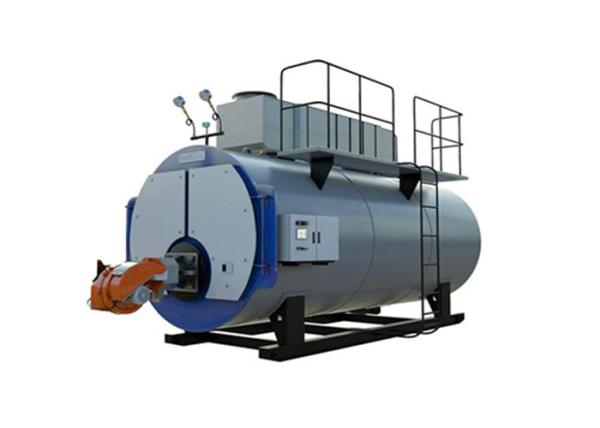

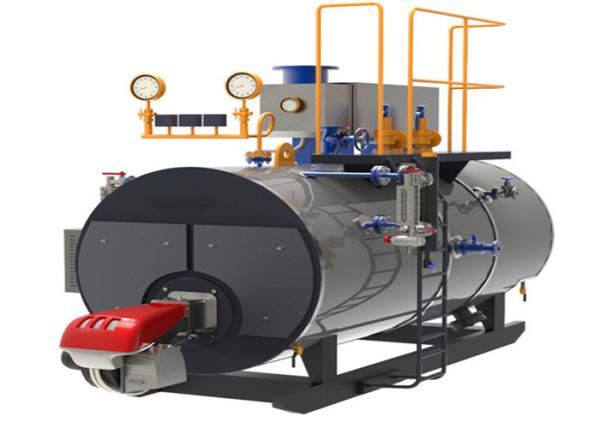

WNS series oil/gas steam boiler have excellent performance advantages and save fuel

High-quality aluminum silicate fiber is used, and refractory mud is used for heat preservation. The temperature of the furnace body is controlled below 45°C, which effectively controls heat loss.

An economizer is installed at the tail of the boiler flue to use the tail of the boiler to remove the waste heat in the flue gas, increase the boiler inlet water temperature, the exhaust gas temperature is reduced to 60 degrees, and the thermal efficiency is increased to more than 98%.

Sufficient storage space and heating surface enable this oil/gas boiler to produce high heating power efficiently.

Strict quality supervision and inspection of boilers, safe and worry-free

All longitudinal and circumferential seam welds are subjected to 100% radiographic inspection to prevent unqualified welds

Seven process stop points are set up, and seven different responsible teachers are separately checked. If any one fails, it will not be able to proceed to the next process.

Humanized boiler design, easier operation and maintenance

horizontal oil/gas fired steam boilers have the characteristics of fully automatic operation. The combustion, water level, temperature and steam pressure are all automatically adjusted and protected, which can realize unattended operation.

The smoke box door of the industrial steam boiler adopts a hinge structure and opens in a window style, which is convenient for maintenance, inspection and cleaning.

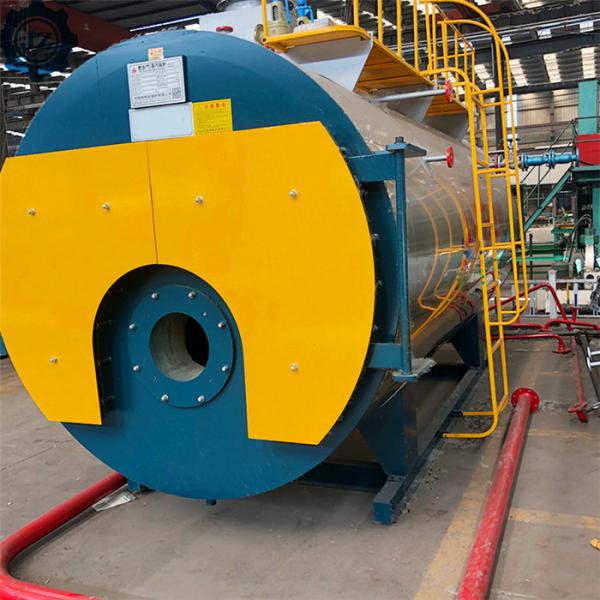

Boiler Picture

Boiler Applications

-Providing steam for industrial fields: food/juice mills, paper mills, pharmacy mills, tobacco factories, printworks, textile mills and so on;

-Providing steam for civil fields: restaurants, laundries, hospitals, saunas, etc;

-Together with steam-water heat exchangers (calorifiers), providing heating for central air conditioning system and radiators; providing continuous hygienic hot water.

Mobile boiler, integrated by boiler and main auxiliaries, customer do not need to install. At present, the whole series of boilers can be integrated, accessories can also be replaced for your needs!
