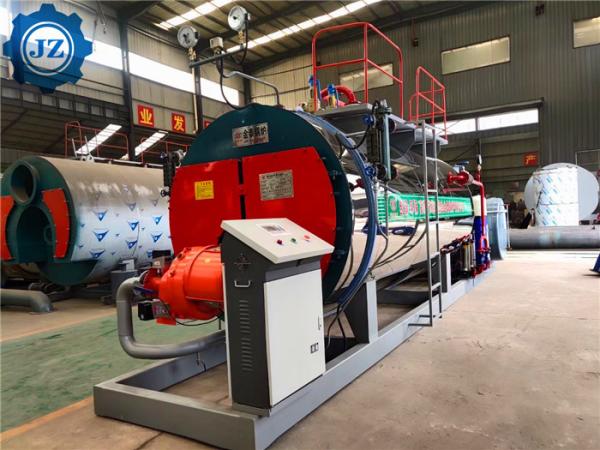

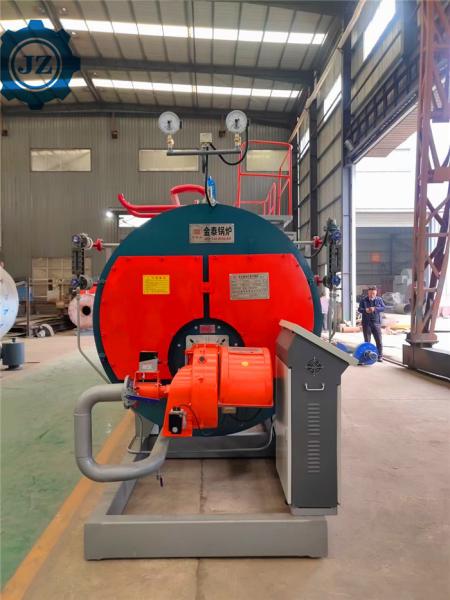

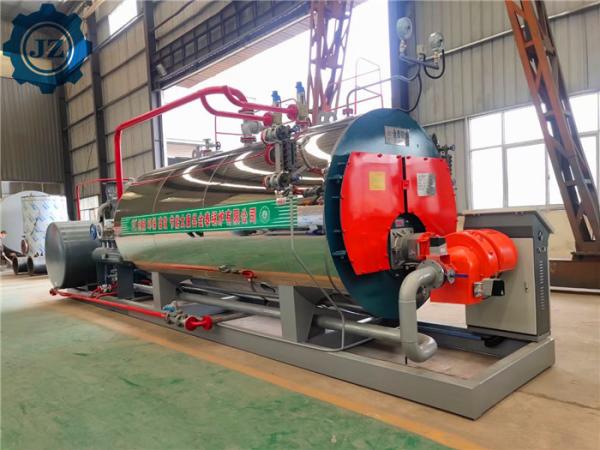

2 Ton Industrial Oil Or Gas Fired Steam Boiler For Oil Press And Refinery Plant

General Introduction

Model: industrial gas oil fired steam boiler

Structure:horizontal fire tube, wet back, three pass

Steam Capacity:1-20ton/hour

Steam Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)

Steam Temperature:184 °c,194°c, 204°c,226°c(As long as the steam temperature you need is lower than 226°c, we can do it).

Fuel:heavy oil, light oil, natural gas, city gas, lpg,lng,etc

Application: textile mill, food, beer and brewery factory,chemical industry, garment factory, printing mill, paper masking industry,milk pasteurization, pharmaceutical industry etc.

The gas-fired steam boiler adopts the structure of mechanical and electrical integration, with generous appearance, compact structure, less space occupation, convenient transportation and less capital investment. It not only follows the concept of energy conservation and environmental protection, but also meets the thermal energy required by the project. In terms of production and use, this kind of boiler really achieves clean combustion, pollution-free emission, convenient operation and sufficient output.

Performance Advantages

Special Structure and High Efficiency: All system is well mounted on the base, its system is portable. The users no need to consider the pipeline installation, wire connection. After receiving the goods, just supply water, electricity, fuel. It is equipped with renowned brand burners(BALTUR, RIELLO, HOFAMAT, ECOFLAM), also finned tube type economizer can ensure boiler's thermal efficiency up to 95%.

High Quality Control: In manufacturing processes, we has adopting steel strength test, automatic steel cutting plate rolling/

welding,100% x-ray welding check, magnetic particle check c-scan ultrasonography Ultrasound check, fluorescent pene-trating check, hydraulic (water) pressure test, boiler thermal efficiency test, etc, to make sure all finished products is qualified.

Automatic Safe Operation: WNS series package steam boiler is equipped automatic burner ignition, automatic water-level control, auto-matic pressure control, automatic interlock chain stop protection, free settable working pressure, free settable ON/OFF time, visible system's working states on screen.

Easy Maintenance: WNS series steam boiler uses full water back tube-sheets instead of traditional dry back tube-sheet, can avoid the dry-fire broken, reduce the range of steel cooling contraction and hotting expansion. Also, we adopting openable smoke-boxes, users can replace the broken fire-tubes conveniently.
