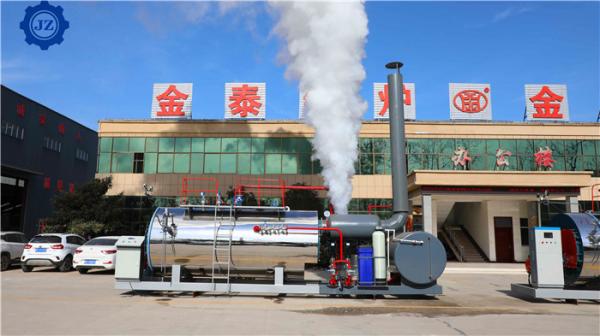

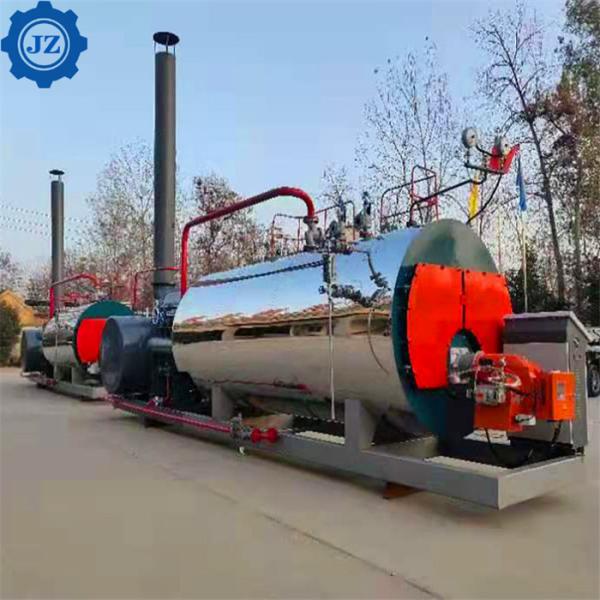

Factory Direct Supply Industrial Oil/Gas-Fired Steam Boiler Machine Used For Feed Mill

WNS type oil and gas fired steam boiler is steam boiler developed in cooperation with German technology. Its technical indexes all reach the world's advanced level.The type boiler really did clean combustion, emissions, no pollution, convenient operation, the output is enough, the ontology of pot shell all wet back downstream three return fireworks tube structure, indoor micro positive pressure combustion flame in the combustion, burning full, furnace heat load is low, the SOX. The harmful substances less NOX emissions, corrugated furnace and threaded pipe structure, which can not only improve the strength and strengthening heat transfer effect, and meet the requirements of parts heat expansion at the same time.The front and rear smoke boxes are connected by hinges, which can be opened easily and repaired quickly.

Performance advantages:

Low cost: The implementation of the West-east gas transmission makes the price of natural gas lower and fuel cost lower accordingly;This type of boiler has high combustion efficiency, fuel saving and low fuel investment cost.Full bevel butt-weld, long safety life and low maintenance cost.

High efficiency: The tail part is equipped with flue gas condensation recovery device, which can effectively control the exhaust temperature, and the boiler has high thermal efficiency;Adopt automatic burner, feed water adopt continuous electric adjustment, combustion efficiency is high.

Safe and stable: Designed over temperature, over pressure, water shortage, leak detection, flameout and other protection functions, boiler operation is safe and reliable.

Space saving: adopt quick installation structure, the whole boiler is designed on the base with strong steel, easy to install and transport, saving the space occupied by the boiler room.

Steam Boiler Specification

Boiler Advantage

1. High Efficiency boiler

1) Equipped with specific burner, high automation and combustion efficiency, low NOx emission.

2) Increases the layout of horizontal fins and vertical fins based on the boiler capacity, combustion gas flows among the water tube bundle at a high speed, excellent heat convection and fast heat transfer efficiency.

3) By equipping with economizer, make full use of the heat of flue gas, decrease the exhaust smoke temperature, the thermal efficiency increase to as high as 96%.

2. Full Automatic Control

1) The burner is full automatic, stable operation.

2) Full automatic interlock protection program, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.

3. High Safety Performance

1) Complete gas manifolds and protection system, including filter, pressure regulating valve, and solenoid valve, etc., to ensure the safety performance of fuel.

2) Reliable boiler auxiliaries and multiple safety protection devices, such as pressure controller, pressure transmitter, water level alarm, safety valve, etc.

4. High Quality

1) All the materials has quality certificate, uses full automatic CO2 welding, NDT test and hydraulic pressure will be done for all boilers to ensure the quality.

2) The preheater uses seamless steel pipes, which are treated by sand blasting and hot-dip galvanizing, lengthen the working life.

5. Centralized Control

Several boilers could be used in parallel, and controlled centrally. Moreover, the centralized controller could record the downtime, location, evaporation capacity, fuel consumption, water volume, steam pressure, water tube temperature, exhaust smoke temperature, etc.

This steam boiler is widely used in different industries such as chemical plant, energy field, food factory, hospital, hotel, laundry, package plant, paper-making mill, pharmaceutical factory, slaughter house, tobacco factory, textiles plant, etc.
