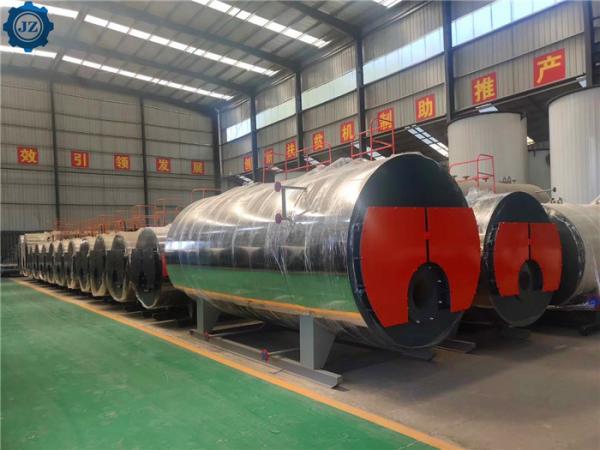

Industrial 0.5-20 Ton Fuel Natural Gas Diesel Oil Fired Steam Boiler Specification

WNS series oil&gas steam boiler adopts horizontal three-pass wet-back structure,,equipped with international first-level brand burners and valve groups,and independently developed high-matching PLC control system to realize muitiple linkages.

Rated steam capacity:0.5ton-20ton/h;

Fuel:natural gas, diesel,heavy fuel oil, lpg,lng,cng,biogas,etc;

Rated steam pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),etc;

Steam Boiler Specification

Boiler Advantage

1.Special Structure and High Efficiency: All system is well mounted on the base, its system is portable. The users no need to consider the pipeline installation, wire connection. After receiving the goods, just supply water, electricity, fuel. It i

s equipped with renowned brand burners (BALTUR, RIELLO, HOFAMAT, ECOFLAM), also finned tube type economizer can ensure boiler’s thermal efficiency up to 95%.

2.High Quality Control: In manufacturing processes, we has adopting steel strength test, automatic steel cutting plate rolling/ welding, 100% x-ray welding check, magnetic particle check c-scan ultrasonography Ultrasound check, fluorescent penetrating check, hydraulic (water) pressure test, boiler thermal efficiency test,etc, to make sure all finished products is qualified.

3.Automatic Safe Operation: WNS series boiler is equipped automatic burner ignition, automatic water-level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, free settable ON/OFF time, visible system’s working states on screen.

4.Easy Maintenance: WNS series boiler uses full water back tube-sheets instead of traditional dry back tube-sheet, can avoid the dry-fire broken, reduce the range of steel cooling contraction and hotting expansion. Also, we adopting openable smoke-boxes, users can replace the broken fire-tubes conveniently.

Before the shipment, complete boiler system is well skid-mounted on the basement, also we have done the pipe(valves) connection and wire connection. After receiving the boiler, no need installation/ assembly. Just join the boiler to water/ gas/ electricity. Comparing with other traditional boilers in the market, our boiler does save lots of cost/ energy/ time in installation. The additional, the entire boiler system is portable.

Boiler Executive Standard

1. Design, manufacture, assembly, experiment and acceptance of boilers in strict accordance with national and industrial standards, including but not limited to the following standards: GB/T16508 Boiler Shell Boiler, TSG G0001 Boiler Safety Design Supervision Code, GB50273 Boiler Installation Engineering Construction and Acceptance Code

2. The main steel used in the boiler is 20 GB/T3087, which ensures the safety and reliability of the boiler.

3. Welding materials shall be selected according to NB/T47018. Full penetration welding with argon protection shall be performed on the boiler tube.

This steam boiler is widely used in different industries such as chemical plant, energy field, food factory, hospital, hotel, laundry, package plant, paper-making mill, pharmaceutical factory, slaughter house, tobacco factory, textiles plant, etc.
