100kg Mini Waste Tyre Plastic To Fuel Oil Pyrolysis Plant For Lab Testing Demo

Mini Waste Tire Plastic to Oil Pyrolysis Plant is specially designed to test various new materials, their feasibility and oil yield rate, etc. It is also very popular in showcasing the environmental running process to your local government and potential clients.

Through this machine, you can get plastic oil, carbon black and syngas which can be recycled to the furnace to heat the reactor again.

End Product after pyrolysis

Specification

Mini type 10kg capacity tyre pyrolysis plant

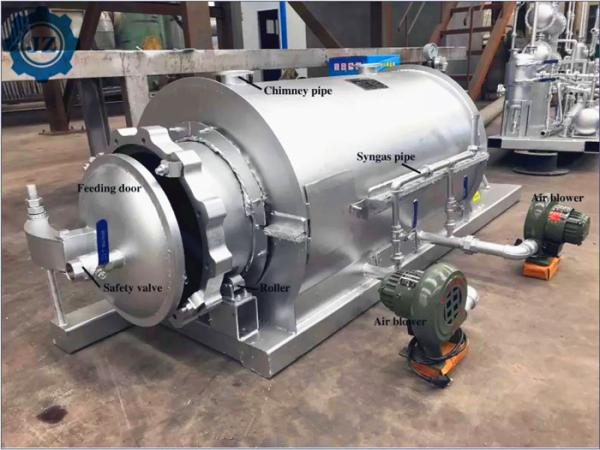

Reactor size : 1650*600*1120mm

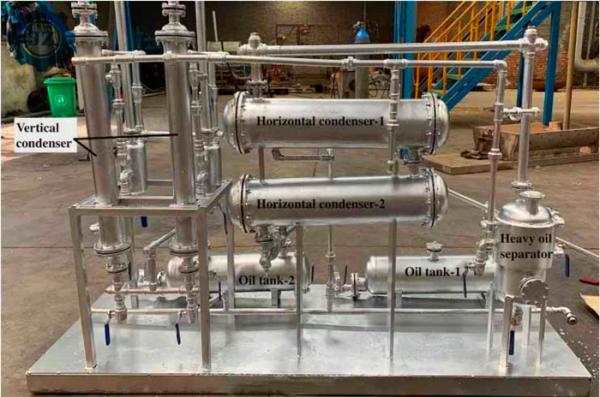

condensing size: 1880*700*650mm

The processing is as follows
1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.
2. The oil gas will be cooled by condenser to liquid oil then collected by oil tank.
3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke produced during processing can achieve national emission standard through dual desulfurization and dusting removal device.
4. After oil producing finished , give 3 hours for cooling the reactor,after that carbon black will be discharged automatically.

Quality And Warranty

1.Quality warranty period: One year warranty for the main reactor of pyrolysis machines

and lifetime maintenance for complete set of machines.

2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's

workers on operation, maintenance, etc.

3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.

4. For the damage caused by the users, our company provides the parts and accessories with cost price.

5. Our factory supplies the wearing parts with the cost price to clients.

Picture Details
