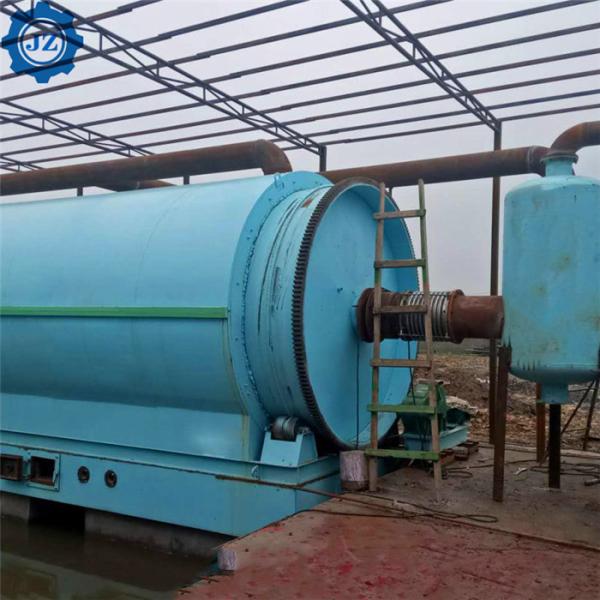

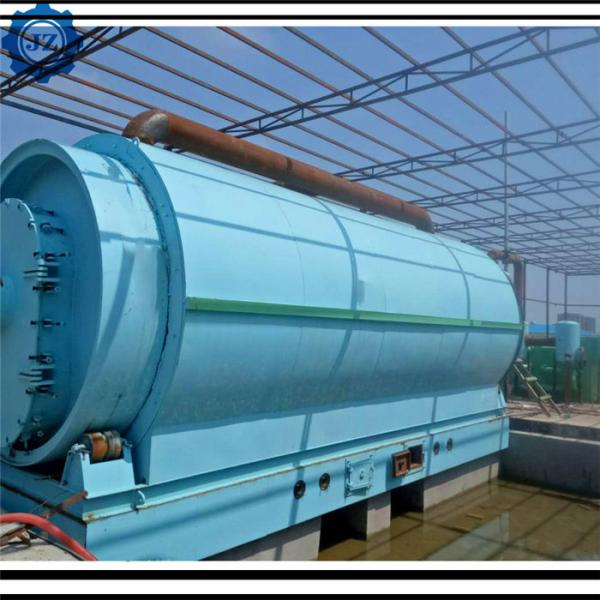

5Ton 10Ton 15Ton Waste Tire Pyrolysis To Furnace Oil And Carbon Black Machine

Input raw mateiral

Waste plastic recycling pyrolysis plant is a kind of machine that can dispose of waste plastic into fuel oil. Plastic to oil ( plastic pyrolysis plant ) is environment friendly technology for disposal of plastic waste.

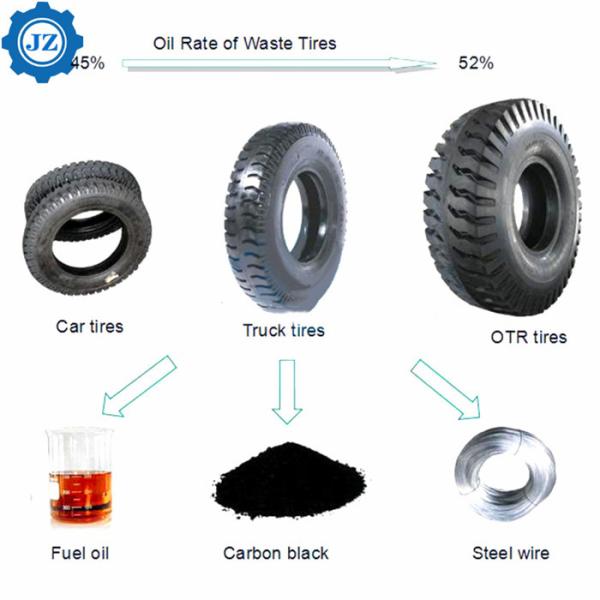

From waste tire pyrolysis plant, 4 kinds of products can be obtained: fuel oil, carbon black, steel wire, and incondensable gas. Fuel oil is widely used in industries, such as steel factory, heavy oil generator, cement factory, and boiler heating etc. Carbon black can be made into pellets for making new rubber products. Steel wire could be sold to the recycle station or steel mill for remelting. The incondensable gas is recycled to heat the pyrolysis reactor, saving energy.

Specification

Machine 3D drawing flow chart and working processing

Production Process

1) Feeding: It takes 1-2 hours. Tires below 1.4 meters in the intermittent cracking system can be fed directly to the whole tire, and large tires need to be cut before feeding; continuous cracking systems need to be broken and fed by the feeding system Enter the host;

2) Heating: It takes about 10 hours. Generally, when it is heated to 2 hours, oil and gas will be generated;

3) Cooling: Oil and gas are condensed into oil through a cooling system;

4) Tail gas recovery and utilization: In the process of heating and cracking, in addition to oil and gas, some flammable but non-condensable gases are also generated. We call it "tail gas". This gas can be directly recycled for heating and cracking the reactor to save Fuel, can also be used to generate electricity or burn to provide a heat source;

5) Carbon black and steel wire slag removal: When the cracking process is over and oil and gas are discharged, the remaining materials in the reactor need to be discharged to carry out a new cracking process. These residual materials mainly include carbon black steel wires used to make tires.

advantage and main technical characteristics

1. Safety. We treat safety as the first important thing in production.
1) Two devices to avoid backfire in production: oil-water separator and anti-back fire device.
2) Vacuum device makes reactor working under ordinary pressure or negative pressure.
3) Temperature monitoring device to avoid excessive working temperature.
4) Pressure gage to monitor the pressure. If it goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.
5) Carbon black is discharged in a closed situation to avoid catching fire.
2. Environmental protection 10 ton used tire pyrolysis plant
1) The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by dust removal device, then can be released into air through chimney.
2) The procedure to remove carbon black is working under closed situation to avoid pollution.

3. Energy saving waste tire oil pyrolysis machine
1) The flame path is designed as spiral so that the quantity of heat can be fully used.
2) The residual gas from pyrolysis is recycled to furnace burning to heating the reactor.
3) The insulation cover is formed by 3 levels: steel plate, rock wool and refractory cement. Excellent thermal insulation effect helps saving fuel.
4. Long service life
1) The material of reactor is Q345R boiler plate with 16/18mm thickness which is produced by Chinese well-known enterprise. The head of reactor and accessories are using one-piece molding shell cover rather than welded plate.
2) All cutting, rolling and welding works are finished by automatic machines.
3) We know quite well about the material quality and manufacturing process, that’s why we are confident in the service life of our products.
4) We also supply installation service, training service and one year warranty.

​Our service
1.Quality warranty period: One year warranty for the main reactor of pyrolysis machines and lifetime maintenance for complete set of machines.

2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's workers on operation, maintenance, etc.

3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. To the buyer.

4. For the damage caused by the users, our company provides the parts and accessories with cost price.

5. Our factory supplies the wearing parts with the cost price to clients.
