1 T/H Automatic Diesel Steam Boiler , Industrial Gas Fired Oil Steam Boiler
1 T/H Automatic Diesel Steam Boiler , Industrial Gas Fired Oil Steam Boiler
Specifications
Brand Name :
Gentel Boiler
Model Number :
WNS1-0.7-YQ
Certification :
IS0900
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80 set per month
Delivery Time :
5-8 working days
Packaging Details :
Steam Boiler in nude package, but covered with water-proof covering, accessories in plywood case
steam capacity :
1 ton/h, 1000kg/h
Pressure :
0.7/1.0/1.25mpa
Steam Temperatur :
170/184/194C
Material :
Q245R Steel Plate
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Style :
Horizontal
Thermal efficiency :
92.4%--94.5%
Output :
steam
Suitable fuel :
oil,gas, IPG, city gas
boiler heating area :
30m2
feed water temperature :
30C
total power :
3.6kw
weight :
4t
size :
3.6*2*2
warranty :
2 year
Description

1 t/h diesel boiler Automatic Industrial Gas Fired Oil Steam Boiler Price

Model:WNS Type
Structure:Wet Back Fire Tube Three Pass
Rated Steam Capacity:1-25 ton/hr
Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa
Rated Steam Temperature:170/184/194/204/225 C
Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood Processing,Garment and Laundry etc.

1 T/H Automatic Diesel Steam Boiler , Industrial Gas Fired Oil Steam Boiler

Performance Advantages

1. WNS series fuel oil fired steam boiler adopts the international popular three-return structure, and the combustion chamber has a large volume design to make combustion more complete.
2. The advanced corrugated furnace structure is adopted, which not only increases the heat transfer area, but also satisfies the free expansion of the furnace after being heated.
3. The pipe adopts a thread structure to enhance the heat transfer effect.
4. The boiler adopts a wet-back structure, and the full-flange butt weld is high in reliability and low in maintenance cost.
5, the design of the rear view device, easy to observe the burning situation.
6, design over-temperature, over-pressure, water shortage, leak detection, flameout and other protection functions, boiler operation is safe and reliable.
7. The boiler is packaged in three forms: color pattern plate, mirror stainless steel or matt stainless steel. The appearance is beautiful and generous.
8. Configure imported burners with good self-control performance to achieve fully automated operation.
9. WNS series fuel gas boilers have high thermal efficiency, stable output and strong load adaptability.

Technical Parameter

Model

Rated evaporation

capacity (t/h)

Rated steam

pressure (Mpa)

Thermal efficiency

(％)

 Fuel consumption

Overall dimension

(m)

Weight

(t)

Body Heating

Area (m2)
Light oil (Kg/h) Natural gas (Nm³/h)
WNS1-0.7/1.0-Y(Q) 1 0.7/1.0 >90 66.5 75 3.6×2.0×2.0 4 25
WNS2-1.0/1.25-Y(Q) 2 1.0/1.25 >90.2 133 150 4.8×2.5×2.46 8 60
WNS4-1.0/1.25-Y(Q) 4 1.0/1.25 >91 266 300 5.8×2.85×2.8 13 113
WNS6-1.25/1.6-Y(Q) 6 1.25/1.6 >91.5 399 450 7.25×3.1×3.15 19 181
WN8-1.25/1.6-Y(Q) 8 1.25/1.6 >91.6 532 600 7.45×3.26×3.2 22.6 190
WNS15-1.25/1.6-Y(Q) 15 1.25/1.6 >91.8 997 1125 8.7×3.7×3.5 34 346
WNS20-1.25/1.6-Y(Q) 20 1.25/1.6 >92 1204 1418 10×3.6×4.0 45 467
Note: Parameter is for reference only, we can design the boilers based on customers’ needs

Application

Diesel/oil fired steam boiler is being widely used in hospitals, schools, textile mills, garment factories, large supermarket, garment factories, dyeing factory, hotel, dining room, dining room, swimming pool, food factory, beverage factory, soy products, meat products factory, cannery, brewery, pharmaceutical factory, packing plants, building materials factory, paint factory and other places of the enterprises and institutions

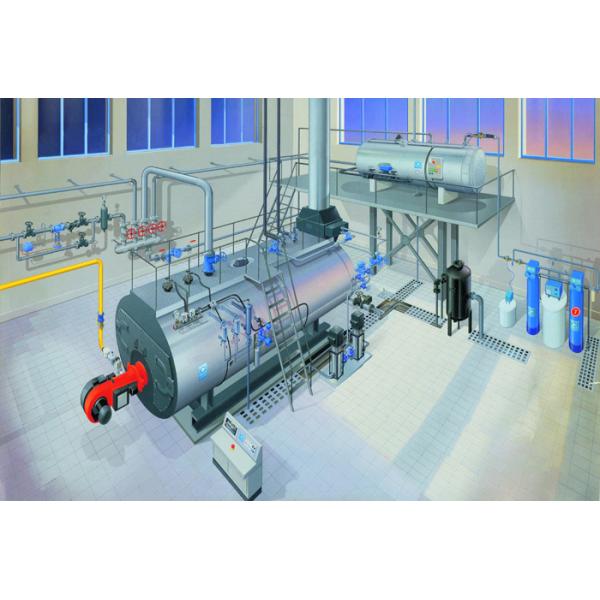

Layout room for Industrial Steam boiler

1 T/H Automatic Diesel Steam Boiler , Industrial Gas Fired Oil Steam Boiler
