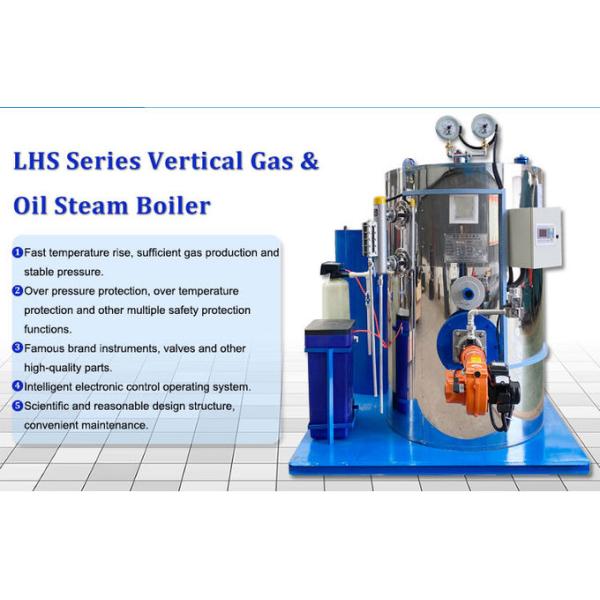

0.3ton 300kg/H Low Pressure Vertical Oil Diesel Fired Small Steam Generator For Tofu Machine/Cooking​

Vertical Steam Boiler
Capacity :0.1-1t/h
Pressure :0.4/0.7Mpa
Fuel :Heavy oil,Furnace Oil, diesel, natural gas, LPG, etc.
Application : Pharmacy, dying& textile, paper making,farming, rubber processing, food and beverage, plastics and foam,building materials,chemical hotels, Light industry

LSS vertical structure steam boiler has a natural circulation system with a boiler shell. According to the height between the decks and the way of the host engine discharge the gas, this series boiler can be settled vertically or horizontally. The Oil-fired part and exhaust-gas part can work together or separately. The steam capacity of the Oil-fired part is 0.3t/h~4t/h, the maximal working pressure is 1.6Mpa; the heating surface area of the exhaust-gas part is decided by the discharged smoke of host engine.

Technical Parameters

Performance Advantages

1. The main body of the steam boiler is a three-pass fire tube structure, which has a longer service life than the ordinary water tube structure and lower maintenance costs.

2. Equipped with a fully automatic burner, with a high degree of automation, automatic purging according to the instructions of the controller, electronic automatic ignition, automatic combustion, automatic proportional adjustment, stable performance and good combustion effect. And there is a flameout protection device to ensure operation.

3. Equipped with a microcomputer LCD control system, one-button operation, install the water and electricity in place, press the power button, the generator will enter the fully automatic operation state, which is simple and does not require professional furnace staff.

4. The steam generator is equipped with a pressure controller, valve, and multiple protections such as overpressure, low water level and overheat protection to ensure product quality and use.

5. Steam production and steam saturation have been strictly tested, and both meet the requirements of industry standards.

6. The boiler is a complete machine and has been equipped with a water pump, solenoid valve and one-way valve. It only needs to be connected to the power supply, steam outlet pipe, water inlet pipe and sewage pipe, which saves installation costs and a large amount of installation materials.

7. Quick-installed and shipped out of the factory, small in size, steam boilers less than one ton can be replaced by this steam generator.

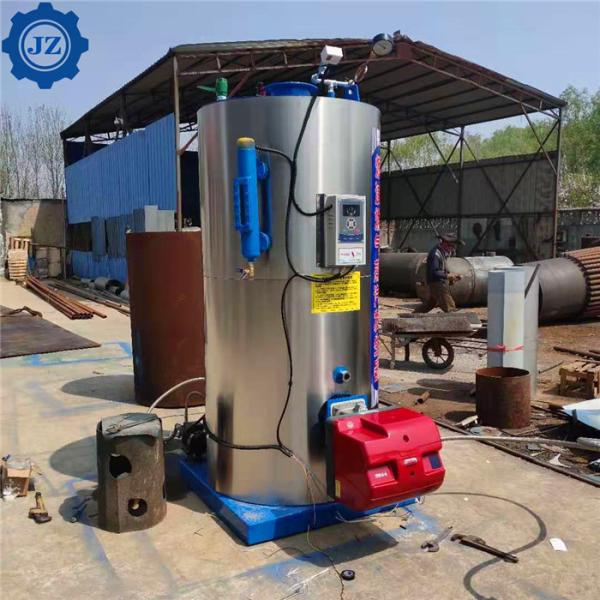

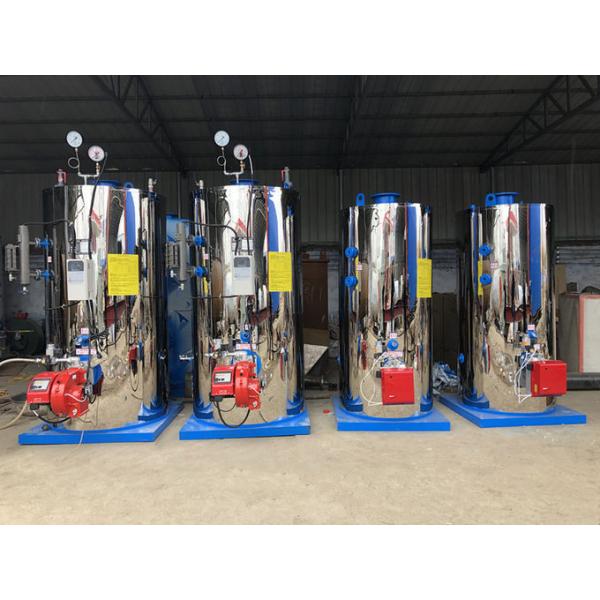

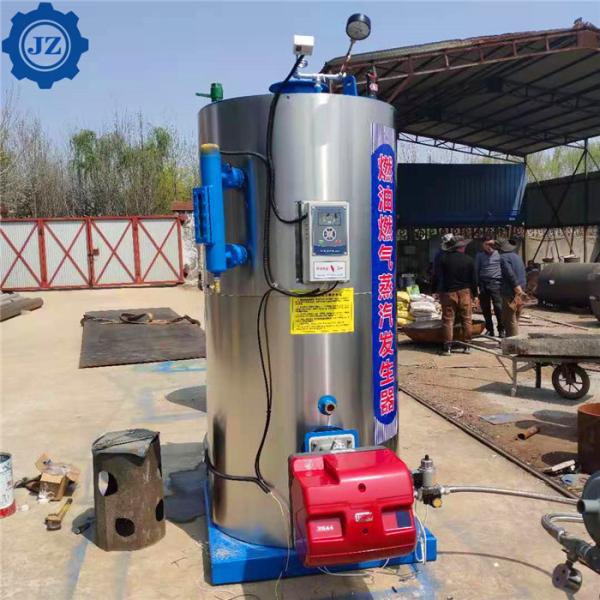

Boiler Picture

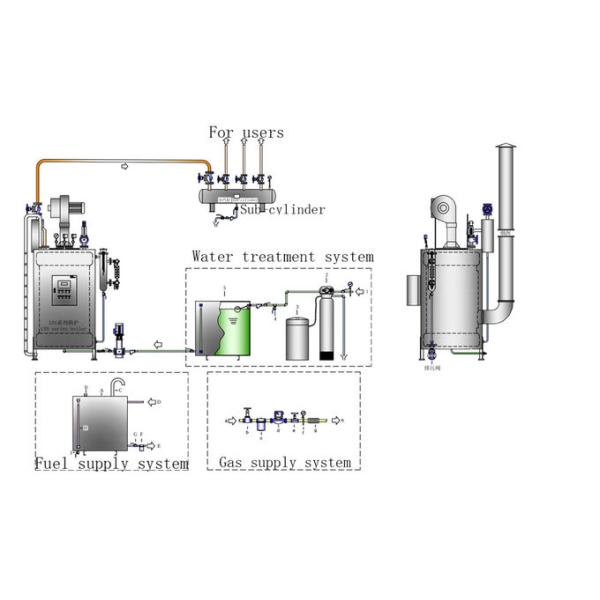

Boiler Room Layout

Boiler Application
LSS series vertical steam generator can be wildly used in pharmaceutical industry, chemical industry, light industry, textile, building materials, farming, food and beverage, plastics and foam, printing & dyeing and washing, rubber processing, paper making, wood processing, hotel, garment leather, etc. This series boiler can also be applied to generate electricity at some districts where electricity power is in short. Even they can be used as a power plant boiler start-up.
