30T-50T Batch Type Waste Tyre Oil Pyrolysis Plant For Recycling Used Tire

waste tire rubber pyrolysis method can pyrolysis the raw materials of the waste tire rubber, so that the waste tire rubber can exert its own value, and then the waste is not waste. After the pyrolysis reaction, fuel oil, carbon black, steel wire, non-condensable but flammable gas can be obtained. The pyrolysis equipment is divided into batch type, continuous type, two-to-one type, multi-group type, etc. If you want to know what kind of product is best for you

Feeding 2 hours —— Pre-heating 2-3 hours —— Oil Producing 8-10hours—— Cooling 3-4 hours —— Carbon black discharging 2 hours —— Steel Pulling 0.5 hour

Technical Specification

Advantages of Waste Tyre Pyrolysis Plant
1.Outstanding Features:
a. The reactor need preheat at the first when the machine starts producing.
b. 24h continuous working for 20-30 days without any stops.
c. No need fuels, sync gas is recycled during the operation.
d. Large daily capacity:20-25T/D;25-30T/D
e. New desing of vertical condensers. Good oil quality with high profit.
f. Low requirement on the raw materials.
2. Security:
a: Adopting automatic submerged-arc welding technology
b: All of the welding will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the
welding shape.
c: Adopting manufacture process controlling system on the quality, every manufacture process, manufacture date, etc.
d: Equipped with anti-explosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming
system.
3. Environmental-friendly:
a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke
b: Smell during operation: Fully enclosed during the operation
c: Water pollution: No pollution at all.
d: Solid pollution: the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold
directly with its value.

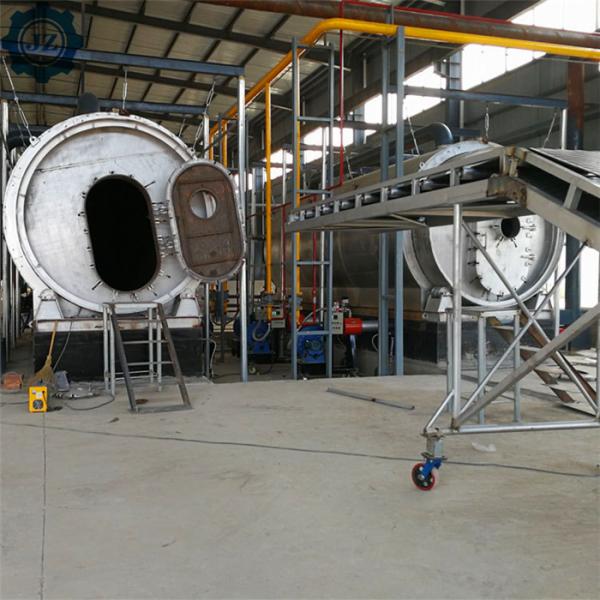

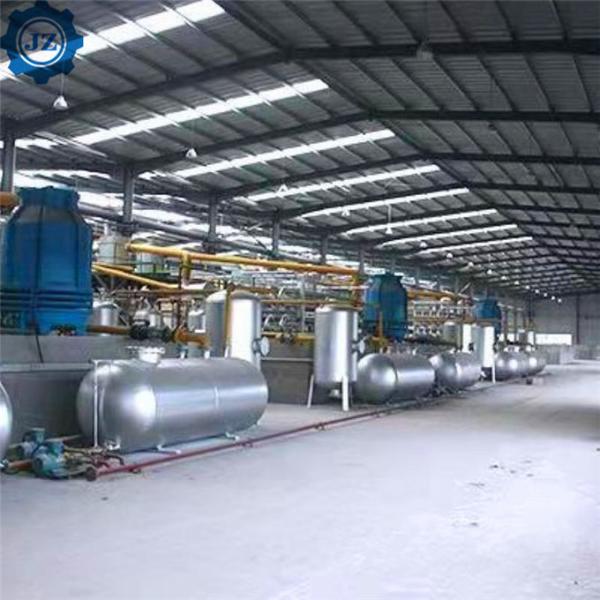

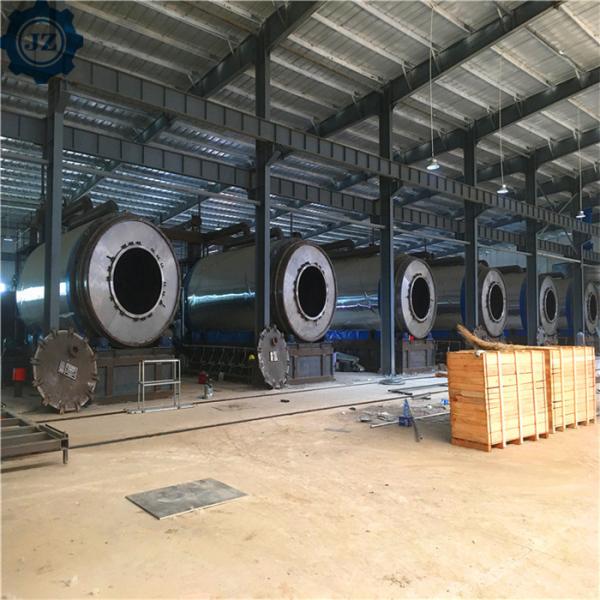

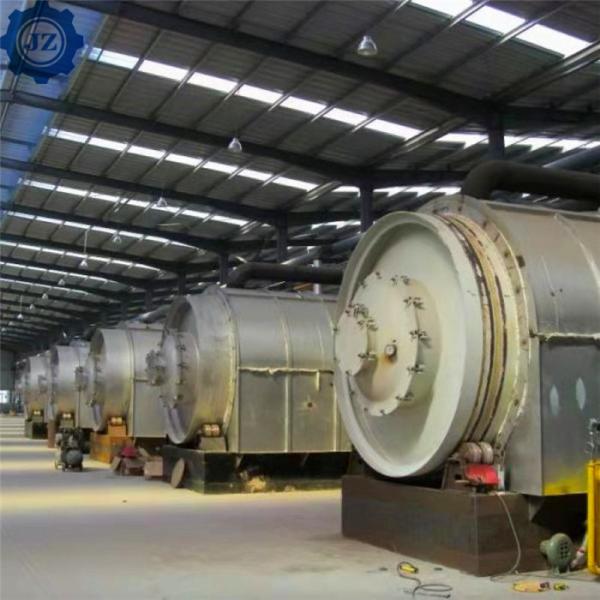

Picture Details for tyre pyrolysis machine
