500kg 1000kg 1500kg 2000kg Industrial Electric Steam Boiler Factory Price

1. Model: WDR electric steam boiler

2. Capacity: 0.5 ton, 1 ton, 1.5 ton, 2 ton

3. Pressure: 0.7 Mpa

4. Temperature: 170℃

5. Thermal Efficiency : 99%

6. Weight: 2011kg

WDR series electric heating steam boiler, use eclectic as the fuel, to heat the boiler to generate steam or hot water for the heating supply. Higher efficiency, and no pollution to the environment at all.

thermal efficiency of WDR electric boiler reaches as high as 99%, and there is no NOX released to the air. WDR series boiler is horizontal structure, offer sufficient steam/hot water output. The electrical control cabinet is separate from boiler body, which will not affect the boiler’s working life because of the aging of the electrical elements. The electrical heated tube can be used for about 20000 hours.

Features of Horizontal Industrial Electric Steam Boilers

1.All the electrical elements have the CE and CCC certification to make sure the boiler safety and long live.

2.Special design of internal structure, large heating area, high thermal efficiency (99%).

3.Seamless steel tube is used as the linner of the ceramic heating tube, high compression strength, 5~10 times using life longer than others.

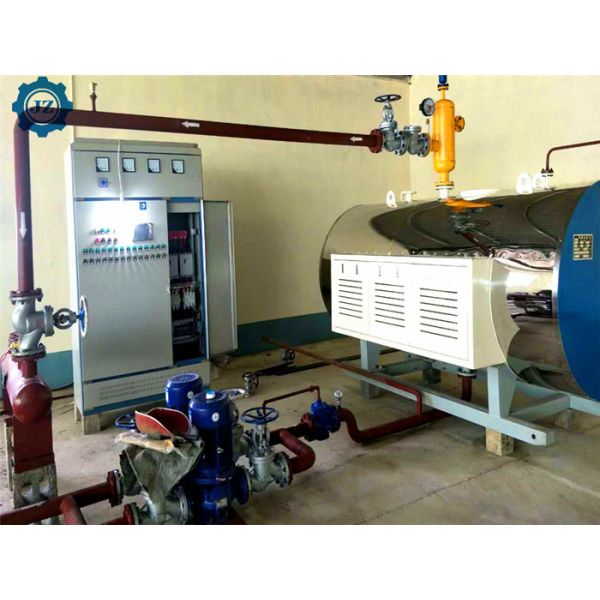

4.The electric steam boiler uses SIMENS PLC electric control cabinet, displays in English. It shows boiler operation condition dynamically, and operator can set up parameters about temperature, pressure, time, etc.

5.Jinzhen Boiler has got CE certificate of YY(Q)W series thermal oil boiler, also, we can offer SGS, BV inspection.

6.Stainless steel shell is available, and we can design the specific boiler based on customers’ requirement.

7.The 100% NDT make sure the boiler life span more than 20 years.

8.Each group electrical heating elements focus on type of flange connection to make the structure simple, safe and easy to repair.

Technical data

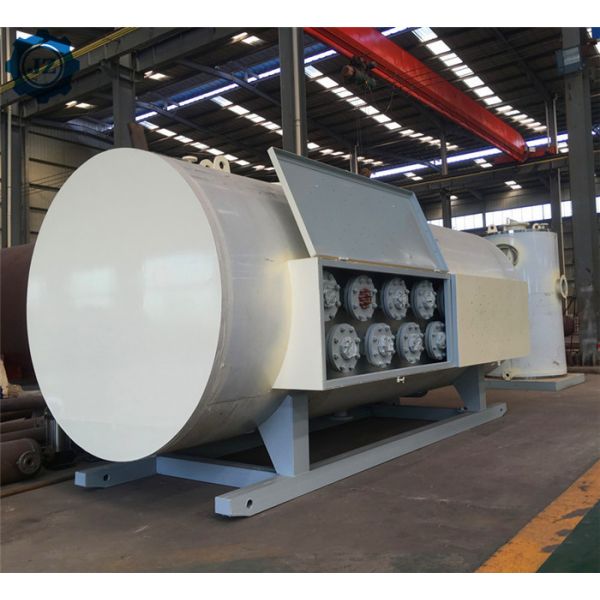

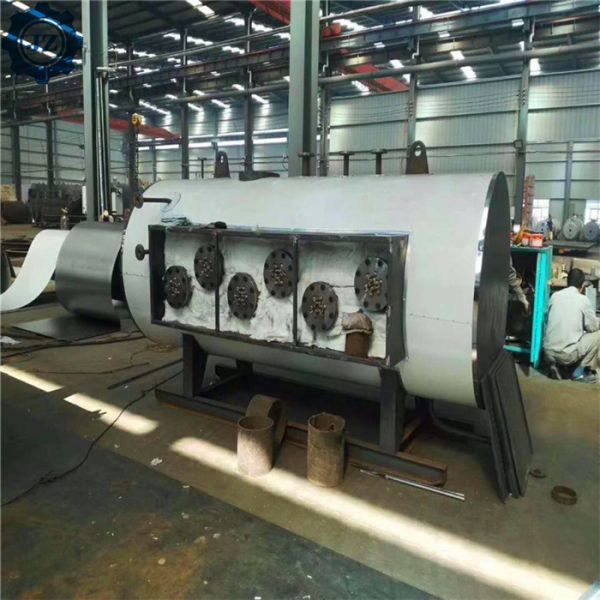

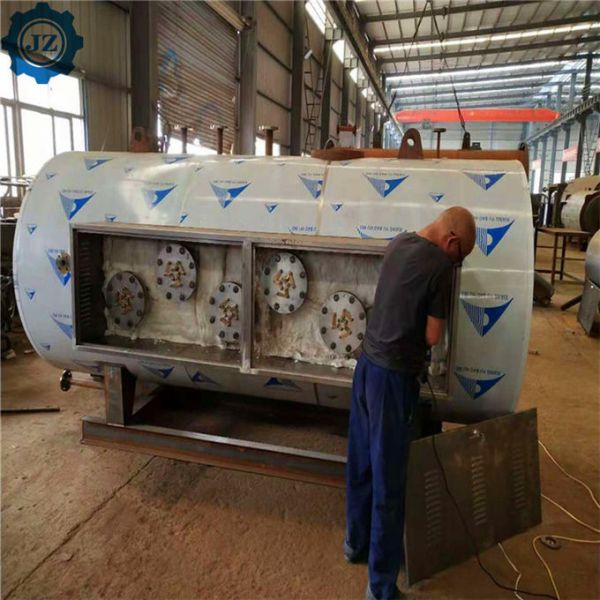

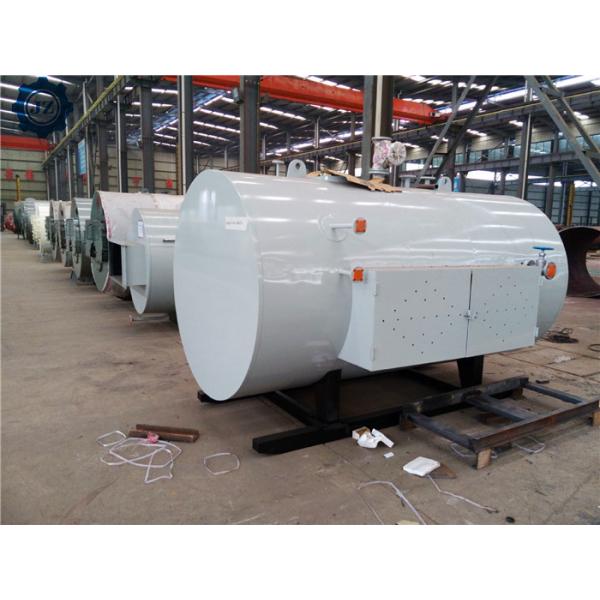

This electric steam boiler is a horizontal electric heating steam boiler, mainly consists of front, back tube plate, tube and electric heating tube.

FAQ of Horizontal Industrial Electric Steam Boilers

1.The lifetime of cartridge heaters/ electrical heated tube.

The electrical heated tube have the CE and CCC certification to guarantee the long working time, it can be used for about 20000 hours.

2.Automatic operation device

electric heating boiler employs full automatic intelligent control technology, and adopts PLC control system to make the operation more simple and safe.

The boiler controller uses SIEMENS/ DELIXI electrical components. Operator can control water level, water temperature, fire situation and working pressure, etc. Moreover, the operation parameters could be set, and they are shown on the screen.

3.Thickness of insulation heat preservation materials

The thickness of insulation heat preservation materials is different based on the requirement of internal temperature, external temperature, or heat loss requirement. Generally, the thickness of the insulation heat preservation materials are between 100~200mm.

4.What about the maintenance?

I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.

Application

Food sterilization

Cooking Food sterilization

Offer hot water to hotel, hospital, school, etc.

Other industrial production: textile, AAC plant, food & beverage, and pharmaceutic industry, etc.

Used with Biological equipment: reaction still, fermentation cylinder, the sterilization pot, etc.

Used with washing equipment: dry cleaning machine, rising machine, and ironing machine, etc.
