15TPD Automatic Waste Plastic/Tyre Recycling Pyrolysis To Oil Pyrolysis Plant

Waste plastic recycling pyrolysis plant is a kind of machine that can dispose of waste plastic into fuel oil.

Plastic to oil ( plastic pyrolysis plant ) is environment friendly technology for disposal of plastic waste. Jinzhen Machine has more than 20 years of experience in operating and installing plastic pyrolysis plants.

In pyrolysis process, the plastic waste is not burned. But instead , plastic is chemically broken down into Pyrolysis Oil, Hydrocarbon Gas and Carbon Black.

Input raw mateiral

The waste plastic pyrolysis plant can process various kinds of waste plastic including pp , pe , ps , abs , rubber products ,tires to fuel oil , carbon black , steel wire.

Output product from the waste tyre pyrolysis plant
From waste tire pyrolysis plant, 4 kinds of products can be obtained: fuel oil, catbon black, steel wire, and incondensable gas.

Flow Chart

1) Feeding: It takes 1-2 hours. Tires below 1.4 meters in the intermittent cracking system can be fed directly to the whole tire, and large tires need to be cut before feeding; continuous cracking systems need to be broken and fed by the feeding system Enter the host;

2) Heating: It takes about 10 hours. Generally, when it is heated to 2 hours, oil and gas will be generated;

3) Cooling: Oil and gas are condensed into oil through a cooling system;

4) Tail gas recovery and utilization: In the process of heating and cracking, in addition to oil and gas, some flammable but non-condensable gases are also generated. We call it "tail gas". This gas can be directly recycled for heating and cracking the reactor to save Fuel, can also be used to generate electricity or burn to provide a heat source;

5) Carbon black and steel wire slag removal: When the cracking process is over and oil and gas are discharged, the remaining materials in the reactor need to be discharged to carry out a new cracking process. These residual materials mainly include carbon black steel wires used to make tires.

Advantage

1. Full open door design: Speedy loading in and steel pulling out; Easily cooling down after one batch finished, saving time; No leaking with special high temperature flexible graphite packing.
2. Unique Craft Condensers: High condensing efficiency with more oil output. Good quality oil, longer lifetime, and easy to clean.
3. National Patent Unique Smoke Scrubbers: More efficient removal of the acid gas and dust of the smoke by neutralization, purification and absorption, environmental friendly without pollution.
4. National Patent Carbon Black Discharging System: Speedy fully enclosed Auto-discharging under high temperature, avoiding carbon black pollution, saving time.
5. Automatic Submerged welding technology, ultrasonic nondestructive testing, both manual and the automatic safety devices.
6. Sync Gas Recycling System: Fully burned after recycling and utilization, saving fuel and preventing pollution.
7. Direct Heating System: Enlarging heating square to lengthen the lifespan of the reactor and easy to control the temperature.
8. National Patent, unique heat insulation shell; high efficiency temperature keeping, excellent energy-saving effect.

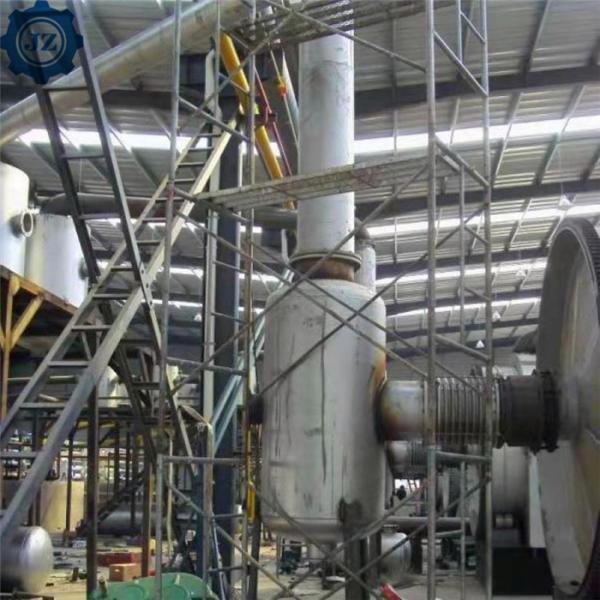

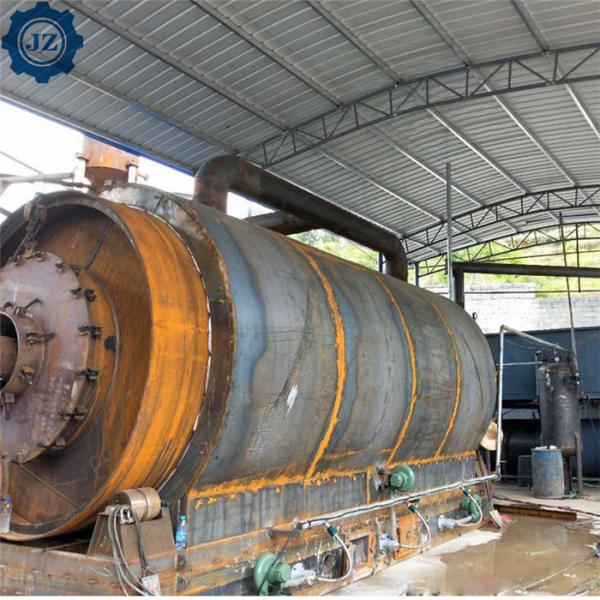

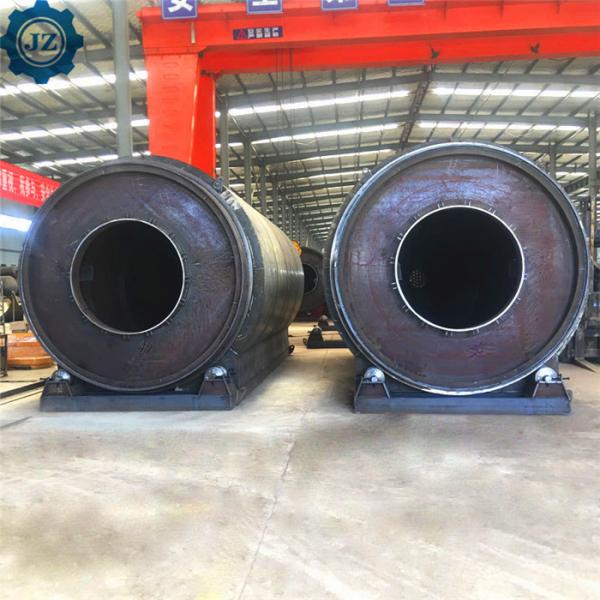

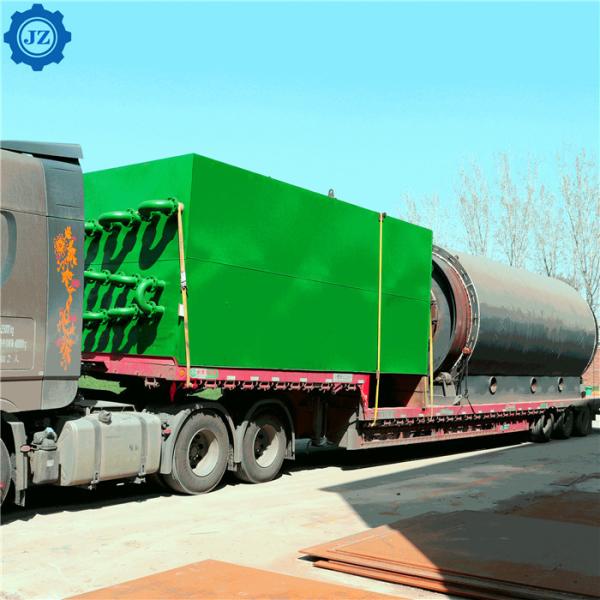

Picture of Waste Plastic/Rubber/Tyre To Fuel Oil Pyrolysis Plant
