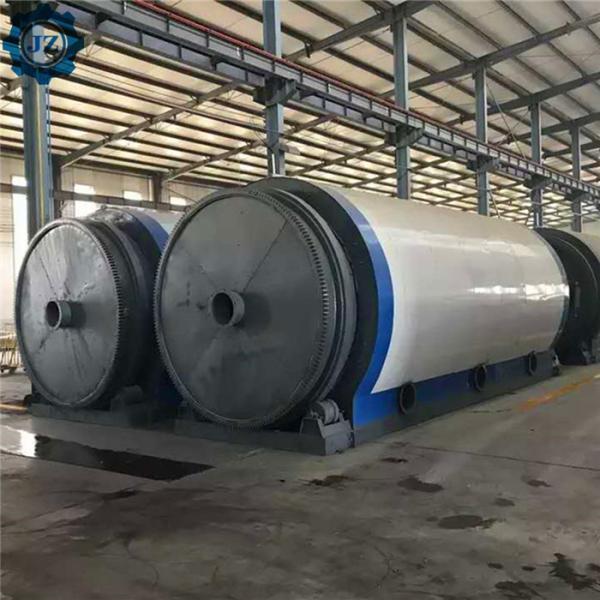

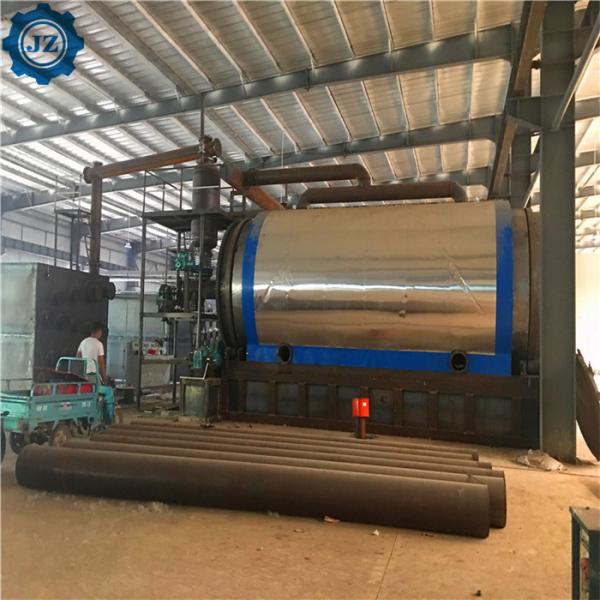

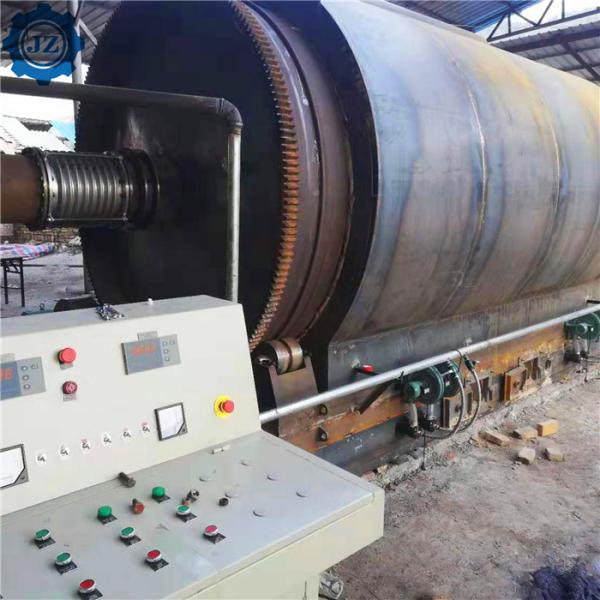

10TPD,12TPD,15TPD Scrap Tyre Rubber Pyrolysis Production Line For Fuel Oil
10TPD,12TPD,15TPD Scrap Tyre Rubber Pyrolysis Production Line For Fuel Oil
10TPD,12TPD,15TPD Scrap Tyre Rubber Pyrolysis Production Line For Fuel Oil
10TPD,12TPD,15TPD Scrap Tyre Rubber Pyrolysis Production Line For Fuel Oil
10TPD,12TPD,15TPD Scrap Tyre Rubber Pyrolysis Production Line For Fuel Oil
10TPD,12TPD,15TPD Scrap Tyre Rubber Pyrolysis Production Line For Fuel Oil
10TPD,12TPD,15TPD Scrap Tyre Rubber Pyrolysis Production Line For Fuel Oil
10TPD,12TPD,15TPD Scrap Tyre Rubber Pyrolysis Production Line For Fuel Oil
Specifications
Brand Name :
Jinzhen Machine
Model Number :
HNJZ-12
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 45000/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Set/Sets per Month
Delivery Time :
35 days
Packaging Details :
40FR Open Container + 2*40HQ container
Product :
Scrap Tyre To Oil Pyrolysis Plant
Capacity :
5TPD,6TPD,8TPD,10TPD,12TPD,15TPD
Reactor Thickness :
16mm,18mm,20mm
Running Type :
Continuous, Semi-continuous,Batch
Heating Fuel :
Pyrolysis Oil, Natural Gas,Coal
End Production :
Tyre Oil, Carbon Black, Steel Wire
Function :
Extract Oil from Solid Waste
Factory Area :
L*W*H=30m*10m*7m
Output :
40-45% Fuel Oil
Reactor Material :
Q345R, Cr12 Alloy Steel, Stainless Steel
Machine Testing :
X- Ray and Pressure Testing
Core Components :
Engine, Bearing, Gear, Pump
Description
10TPD,12TPD,15TPD Scrap Tyre Rubber Pyrolysis Production Line For Fuel Oil ​

Waste Tire Recycling Production Line to Fuel Oil will produce pyrolysis fuel oil, carbon black, steel wire, waste gas etc..All the output products can be turned into value.

Raw Material For Pyrolysis Machine

1.Waste tyre:Steel tyre ,Nylon tyre ,Bick tyre
2.Waste plastic:PE,PVC,Waste washed mixture plastic from waste Paper Factory
3.Waste rubber:Shoes Soles,Cable Skin
4.oil sludge,waste oil sludge

Output product from the waste pyrolysis plant

From waste tire pyrolysis plant, 4 kinds of products can be obtained: fuel oil, catbon black, steel wire, and incondensable gas. Fuel oil is widely used in industries, such as steel factory, heavy oil generator, cement factory, and boiler heating etc. Carbon black can be made into pellets for making new rubber products. Steel wire could be sold to the recycle station or steel mill for remelting. The incondensable gas is recycled to heat the pyrolysis reactor, saving energy.

10TPD,12TPD,15TPD Scrap Tyre Rubber Pyrolysis Production Line For Fuel Oil

Working proccess of the waste tyre to oil pyrolysis plant
1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.
2. The oil gas will be cooled by condenser to liquid oil then collected by oil tank.
3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke produced during processing can achieve national emission standard through dual desulfurization and dusting removal device.
4. After oil producing finished , give 3 hours for cooling the reactor,after that carbon black will be discharged automatically.

Technical Specification

Raw material

Waste rubbers/tyres/plastic

Waste rubbers/tyres/plastic

Waste rubbers/tyres/plastic

Waste rubbers/tyres/plastic

Daily Handling capacity

5 tons

8 tons

10 tons

12 tons

Working pressure

Normal pressure

Normal pressure

Normal pressure

Normal pressure

Main engine rotating speed

0.4R /min

0.4R /min

0.4R /min

0.4R /min

Power

15KWH

15KWH

15KWH

15KWH

Cooling Mode

Water

Water

Water

Water

Floor Area

200m2

250m2

300m2

300m2

Heating Mode

Direct

Direct

Direct

Direct

Oil Yield

45%-50%

45%-50%

45%-50%

45%-50%

Noise dB (A)

<=85

<=85

<=85

<=85

Machine dimension(mm)

D2200*L5000

D2200*L6600

D2600*L6600

D2800*L6600

Working Mode

Intermittence

Intermittence

Intermittence

Intermittence


main technical characteristics

1. High oil output rate 45%--55% with special catalyst formula and high tech .
2. Rapid condensers and large cooling area,assure you get much more and higher quality oil. diversiform cooling system can be
choose according to client's willingness
3. Dust-removing device -four levels dust processing system make sure no any population and the output smoking is the spray .more
environmental protection.
4. Double tail-gas recycling and burning system, saving energy.
5. Q245R boiler plate, high temperature resistance, thickness reaches 14mm—16mm,guarantee 4-7 years service lives. and optional
plate is Q345R
6. OptionalAuto feeder and carbon black discharge elevator, high automation, saving time and labors.
7. Eco-friendly and no any population, environmental protection
Machine 3D drawing flow chart and working processing
10TPD,12TPD,15TPD Scrap Tyre Rubber Pyrolysis Production Line For Fuel Oil

Q1: What kind of raw material can be used?

waste tyres/ rubbers/ shoe soles/ inner tube / cable husk/ bicycle tyre/ motorcycle tyre; PP,PE,PVC,PMMA plastic, paper mixture from paper mills and all kinds of waste nylon products

Q2: What are the end products?

If your raw material is tyres, end products are fuel oil, carbon black,steel wire and waste gas; if your raw material is rubber or plastics, then end products are fuel oil, carbon black and waste gas

Q3: What's the fuel of pyrolysis plant?

The fuel can be coal, charcoal, firewood, fuel oil, heavy oil and natural gas

Q4: What's the covering area of one set of 5-10 ton capacity pyrolysis plant?

The equipment covers 30 square meters(length20m*width15m). Besides raw material and end products storage areas,you also need to prepare workers' resting room and simple office, so totally 600-800 square meters land will be better

Q5: How many workers needed to operate the plant?

3-4 workers are enough for one set of pyrolysis plant. If you use auto-feeder and auto-discharging system, then 2 workers are ok

Q6: How about the installation?

We will provide the foundation drawings to you after the deal is done and send technical engineer to guide the installation, the commissioning and workers training on your working site

Q7: What about the usage of the oil extracted with this plant?

The oil from tyres or plastics is mixed oil. It is a good quality furnace oil, used as heating oil.It can be used for some large boilers, like iron and steel plant, bricks factory, cement factory,glass plant and etc
