Vandal Resistant Highway Emergency Phone Pillar , Roadside Phone Protection Pillar
Vandal Resistant Highway Emergency Phone Pillar , Roadside Phone Protection Pillar
Vandal Resistant Highway Emergency Phone Pillar , Roadside Phone Protection Pillar
Vandal Resistant Highway Emergency Phone Pillar , Roadside Phone Protection Pillar
Vandal Resistant Highway Emergency Phone Pillar , Roadside Phone Protection Pillar
Vandal Resistant Highway Emergency Phone Pillar , Roadside Phone Protection Pillar
Specifications
Brand Name :
J&R
Model Number :
JR-TP-05
Certification :
CE, FCC, RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 set
Price :
Reconsideration
Payment Terms :
L/C, T/T
Supply Ability :
3000 sets per month
Delivery Time :
2-5 working days
Packaging Details :
pearl cotton, carton, wooden box
Material :
Cold Rolled Steel
Color :
Blue, Yellow, or optional
Warranty :
2 Years
Weather protection :
IP65
Customized :
Yes
Telephone :
With or without
Vandal Resistant :
Yes
Unit size :
1500 x 300x 300 mm
Weight :
25 KG
Description

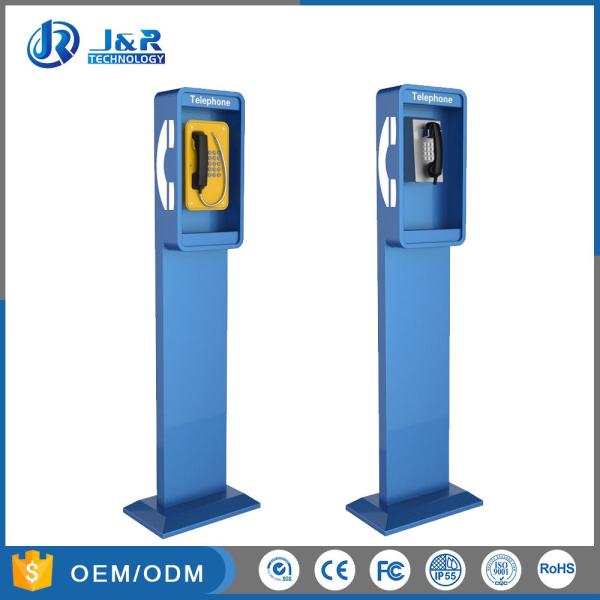

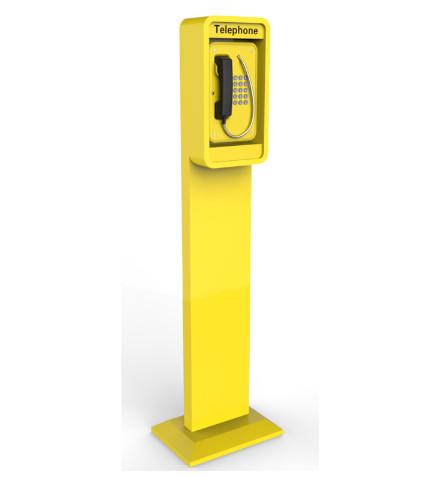

Vandal Resistant Emergency Telephone Pillar, Roadside Phone Protection Pillar

The emergency telephone pillar is designed to meet the needs of client who experience loss through vandalism.

Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

MAIN FEATURES

- Outdoor Telephone booth with emergency telephone
- Robust construction, Vandal resistant
- Stable, durable and violence-resistible with a waterproof ratio of IP55-IP65


- Tamper resistant fixings
- Fast-fit terminal connection
- Full Keypad
- Can be programmed remotely by tone phone or locally via keypad


- Non-volatile memory
- Telephone line powered (Analogue)

- External power supply or PoE (SIP-VoIP)

- RJ45 port for SIP phone


- Weatherproof and corrosion resistant handset
- Stainless steel armoured handset cord
- Impact, shock, fall and vibration proof,able to perform in difficult environments


- Multipurpose Design for Surface or Post mounting, Simple Installation

(Mounting Brackets for mounting on structure)
- It adopts high strength stainless steel shell and hexagon socket screw

- With tamper-resistant, Conformal-coated PCBA
- Inductive Coupler Fitted as Standard for Hard of Hearing
- CE, FCC, RoHS, ISO9001 compliant

APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C

More Optional Models

Package Information

Help Point Unit Size: 334 *204 *109 (mm)

Pillar Size: 1600(H) *500(W) (mm)

Packaging materials: pearl cotton, wooden box

Net weight: 30 KG

Gross weight: 45 KG
