Cold Rolled Steel SOS Telephone Pillar Post , Railway Trackside Emergency Call Box
Cold Rolled Steel SOS Telephone Pillar Post , Railway Trackside Emergency Call Box
Cold Rolled Steel SOS Telephone Pillar Post , Railway Trackside Emergency Call Box
Cold Rolled Steel SOS Telephone Pillar Post , Railway Trackside Emergency Call Box
Cold Rolled Steel SOS Telephone Pillar Post , Railway Trackside Emergency Call Box
Cold Rolled Steel SOS Telephone Pillar Post , Railway Trackside Emergency Call Box
Specifications
Brand Name :
J&R
Model Number :
JR-TP-02
Certification :
CE, FCC, RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 set
Price :
Reconsideration
Payment Terms :
L/C, T/T
Supply Ability :
3000 sets per month
Delivery Time :
2-5 working days
Packaging Details :
pearl cotton, carton
Material :
Cold Rolled Steel
Color :
Yellow (or optional)
Warranty :
2 Years
Weather protection :
IP67
Version :
Analog, SIP, GSM/3G

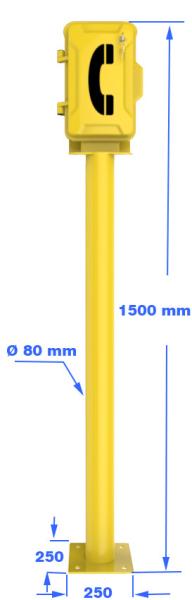

Unit size :
1500 x 300x 300 mm
Weight :
20 KG
With key lock :
optional
Customized :
Support
Description

Moisture Resistant Tunnel SOS Telephone Post, Railway Trackside Call Box

The Emergency Telephone with column mounting is based on a cold rolled steel with powder coated body, and stainless faceplate, offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times. It is an ideal security solution for remote and high-risk areas.

MAIN FEATURES

- Standard Analogue phone, or SIP phone
- Rugged housing, Cold Rolled Steel for Pillar

- Aluminum alloy die-casting body for telephone
- Weather proof protection to IP67


- Wall/ Pillar mounting, simple installation
- Phone line powered (Analogue)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone

- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant

APPLICATIONS

Ideal for Campus, School, Street, Railway Trackside, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Hotels, Guard Stations, Police stations, Stadiums, inside and outside building etc.

TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C

Package Information

Weight:10-45kg
Dimensions(mm):1500 x 436 x 306 mm or customized by clients
Packaging materials: pearl cotton, wooden box

More options:
