Rugged Weatherproof Emergency Phone For Outdoors , Roadside SOS Call Box
Rugged Weatherproof Emergency Phone For Outdoors , Roadside SOS Call Box
Rugged Weatherproof Emergency Phone For Outdoors , Roadside SOS Call Box
Rugged Weatherproof Emergency Phone For Outdoors , Roadside SOS Call Box
Specifications
Brand Name :
J&R
Model Number :
JR101-CB
Certification :
CE, FCC, RoHS, IP67, ISO9001:2015
Place of Origin :
Shenzhen, China
MOQ :
1 set
Price :
Reconsideration
Payment Terms :
L/C, T/T
Supply Ability :
3000 sets per month
Delivery Time :
3-7 working days
Packaging Details :
pearl cotton, carton
Material :
Aluminum alloy
Color :
Yellow, Blue, Red, Orange (or optional)
Version :
Analog, SIP, GSM/3G
Weather resistant :
IP67
Installation :
Wall/ Pillar Mounting
Size :
246 *339 *124 (mm)
Net Weight :
7 KG
Warranty :
2 Years
Anti-vandal :
Yes
Corrosion Resistant :
Yes
Description

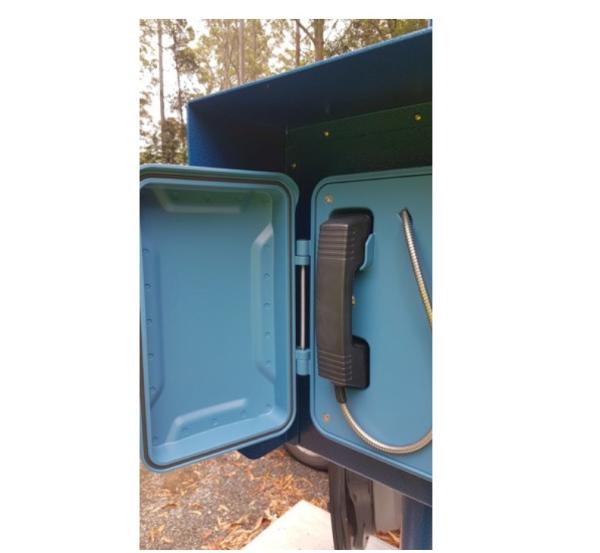

Rugged Weatherproof Emergency Telephone For Outdoors, Roadside SOS Call Box

The JR100 series telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.

Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.


Main Features:
- Standard Analog phone, or SIP/ VoIP phone

- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP67

- Programmable for auto-dial (or full keypad is optinal)

- Wall/ Pillar mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing

- Phone Line powred (Analogue)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone

- CE, FCC, ISO9001, RoHS compliant


Technical Parameters

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C



Package

Unit Size: 339*246*124 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG
