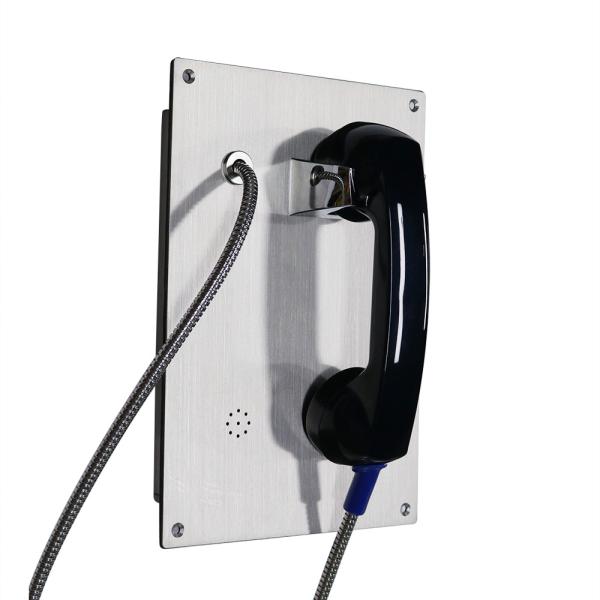

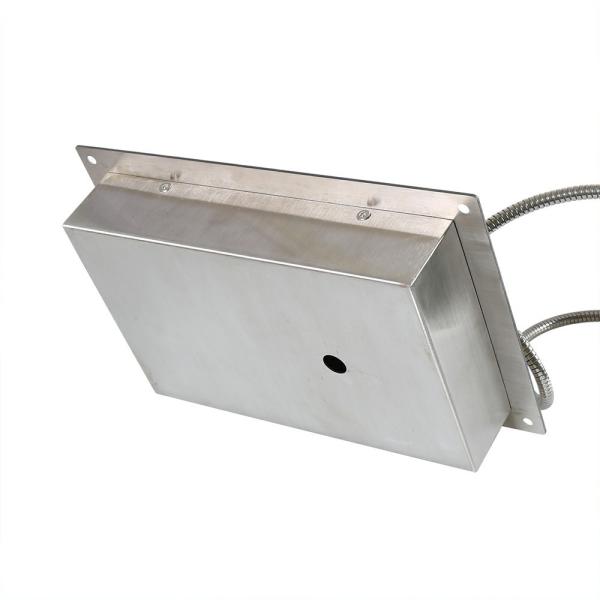

Stainless Steel Flush Mounted Emergency Phone Auto Dial Telephone digital keypad
Stainless Steel Flush Mounted Emergency Phone Auto Dial Telephone digital keypad
Stainless Steel Flush Mounted Emergency Phone Auto Dial Telephone digital keypad
Stainless Steel Flush Mounted Emergency Phone Auto Dial Telephone digital keypad
Stainless Steel Flush Mounted Emergency Phone Auto Dial Telephone digital keypad
Stainless Steel Flush Mounted Emergency Phone Auto Dial Telephone digital keypad
Specifications
Brand Name :
J&R
Model Number :
JR208-CB
Certification :
CE, FCC, RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 Piece
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
10000pcs per month
Delivery Time :
3-7 working days after payment
Packaging Details :
J&R standard packing ,pearl cotton, carton
Material :
Stainless Steel
Color :
Color Optional
Handset Material :
ABS material handset with stainless steel spiral cord
Keypad :
Weather sealed tactile digital keypad
Operating Temperature :
-30°C to +65°C
Weather Resistance :
IP55-IP65
Ringing Tone :
Shrill warble tone 90 dBA @ 1 metre typical
Hook switch :
Electronic / magnetic with no visible moving parts
unit size :
280*190 *124(mm)
Packaging materials :
pearl cotton, carton
Net weight :
2.5KG
Gross weight :
3.5KG
Description

Flush Mounted Emergency Phone Auto-Dial Handset Telephone

JR208-CB

Flush Mounted Emergency Phone Auto-Dial Handset Telephone is compatible with most of SPC exchange. The hook of telephone handset is made of high grade zinc alloy and controlled by intelligent magnetic induction switch.

Product Specification

Flush Mounted Emergency Phone Auto-Dial Handset Telephone

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C

Features

★ Hook Switch Intercom Telephone System
★ Hotline telephone, atomatic dialing after lifting handset
★ Built-in loudspeaker, increase volume
★ 304 stainless steel panel, vandal resistance
★ Housing has grounding device with electromagnetic shielding characteristic

Applications

Flush Mounted Emergency Phone Auto-Dial Handset Telephone is ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.

Packing

Unit Size 280 *190 *124 (mm)
Carton Size 200 *300 *440 (mm)
Packaging Materials Pearl cotton, carton
Net Weight 2.5 KG
Gross Weight 3.5 KG

Our Company

Flush Mounted Emergency Phone Auto-Dial Handset Telephone
