120W/250W/500W IP Power Amplifier Weatherproof Aluminium Enclosure Speaker Amplifier
120W/250W/500W IP Power Amplifier Weatherproof Aluminium Enclosure Speaker Amplifier
120W/250W/500W IP Power Amplifier Weatherproof Aluminium Enclosure Speaker Amplifier
120W/250W/500W IP Power Amplifier Weatherproof Aluminium Enclosure Speaker Amplifier
120W/250W/500W IP Power Amplifier Weatherproof Aluminium Enclosure Speaker Amplifier
120W/250W/500W IP Power Amplifier Weatherproof Aluminium Enclosure Speaker Amplifier
Specifications
Brand Name :
Yuantong
Model Number :
YT-GF500W
Place of Origin :
China
MOQ :
1
Price :
USD 285-400
Payment Terms :
T/T
Supply Ability :
1000 pieces per month
Delivery Time :
15-25 days
Packaging Details :
Carton
Description

Description

1. It adopts the standard international standard SIP2.0 public protocol, which has excellent compatibility and functional scalability, and can communicate with public communication protocol systems such as converged communication systems and telephone systems. The SIP protocol decoding module and the constant voltage power amplifier module are integrated into one function, the network signal is remotely automatically controlled, the audio file is transmitted through the network, and the local playback is performed, and the sound quality reaches CD quality; independent IP address;


2. Standard 1 10/100M RJ45 network switch interface, supporting LAN and WAN; the device adopts industrial-grade dual-core processing chip (
(ARM+DSP), the startup time is less than 1S, and supports communication protocols: TCP, IP, SIP, UDP, VOIP, IGMP, DNS, DHCP, FTP.
3. The built-in network IP decoding module can play network music and call functions in real time; the network delay time of playback and call functions is less than 30mS.


4. With built-in constant voltage/resistance power amplifier output, output mode 100V, 70V, 4~16Ω, output power adjustable

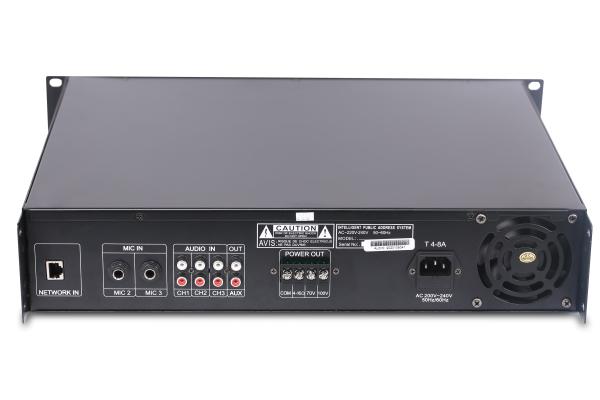

5. 2-way microphone input, 2-way line input, 1-way RJ45 Network input

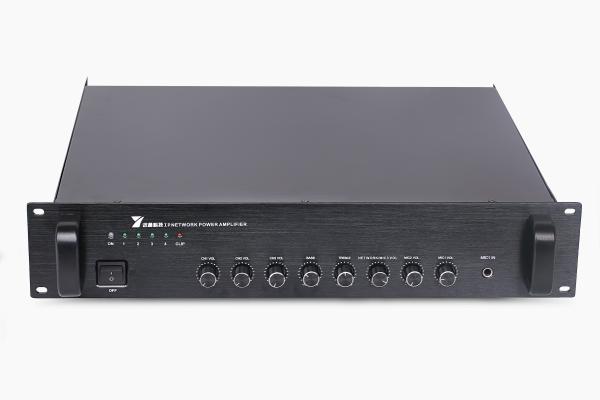

6. Equipped with power indicator light, protection indicator light, working signal indicator light and peak clipping indicator light, the working status of the amplifier is clear at a glance.


7. Standard chassis design, aluminum alloy panel, beautiful and practical

Specification

Power AC220V/50Hz
Interface

RJ45, 10/100Base-TX
Protocol

TCP,IP,SIP ,VOIP,IGMP,DNS,DHCP,FTP
Noise ratio Microphone>68dB Line:>82dB
Speech Coding

G.711-a,G.711-u,G.729,G.723.1,G.726
Total Harmonic Distortion

<0.1% at 1KHz
Frequency Response

60Hz-18KHz(±2dB)
tone Bass ±10dB at 100Hz, Treble: ±10dBB at 10KHz
Microphone Input Sensitivity & Impedance 8mV/600Ω unbalanced
Line Input Sensitivity & Impedance 250mV/10KΩ unbalanced
Line output sensitivity & impedance 445mv/600Ω unbalanced
Mute adjustment

0-38dB
Rated Power

500W
Independent volume control for each input channel High and low pitch control
Protection Output short circuit, overcurrent, and overload protection alarms;
