100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction
Specifications
Brand Name :
Keda
Model Number :
SCS-100T
Certification :
ISO
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
USD5000~14500
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
10~25 days
Packaging Details :
The body of truck weight bridge is nude packed and the accessories are packed in cartons
Material :
Q235
Load cell :
digital
Power supply :
220V AC or 9V DC
Accuracy :
OIML 3
Safe overload :
150%
Structure :
U-shape Beams
Certificate :
CE ISO9001
Interface :
RS232C / Printer / PC
Warranty :
1 Year
Software :
intelligent weighing system
Description

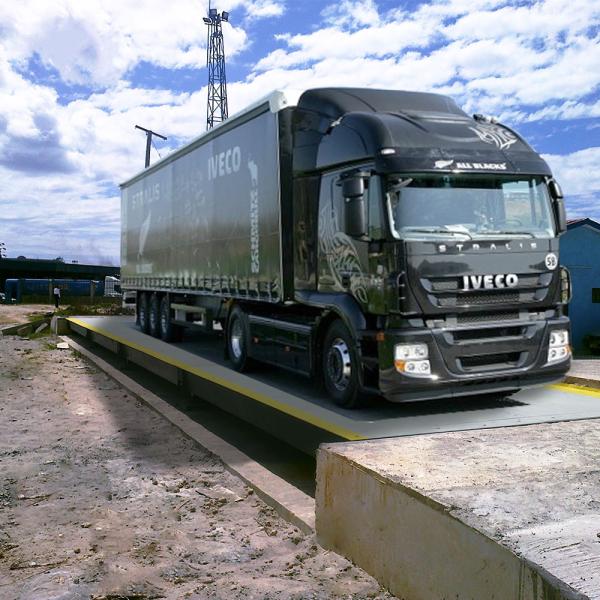

100 Ton Rated Load On-Broad 60ft Truck Scale Weighbridge With Printer

Standard configuration of KEDA SCS weighbridge:

Weighbridg platform, high accuracy weighing load cells, weight indicator, junction box and shield cable are necessary parts of a basic weighbridge. Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.

KEDA weighbridge is available in both surface and pit mount designs. Key features include:

  • Low profile deck design – only 300 mm high
  • Driver-operated versions
  • Guide rails standard on surface models
  • Optional steel ramps, bar, and anti-skid design

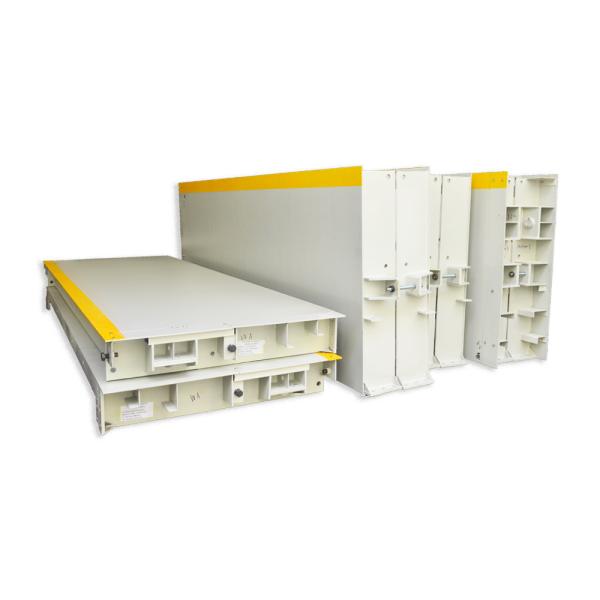

  • Modular construction
  • Non-standard widths & lengths up to 150 Tons
  • Special paint
  • Multi-range – high accuracy versions
  • Wide range of weighbridge peripherals

Weighbridge Technical Paramater
Type Digital weighbridge
Platfrom size From 6m to 24m
Platform material 8-20mm thickness top steel plate
Painting poxy zinc rich primer and acrylic marine paint
Max. Cap From 30ton to 150ton available
Accuracy 50kg (OIML Ⅲ)
Safe over loade 150%F.S
Power supply 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz

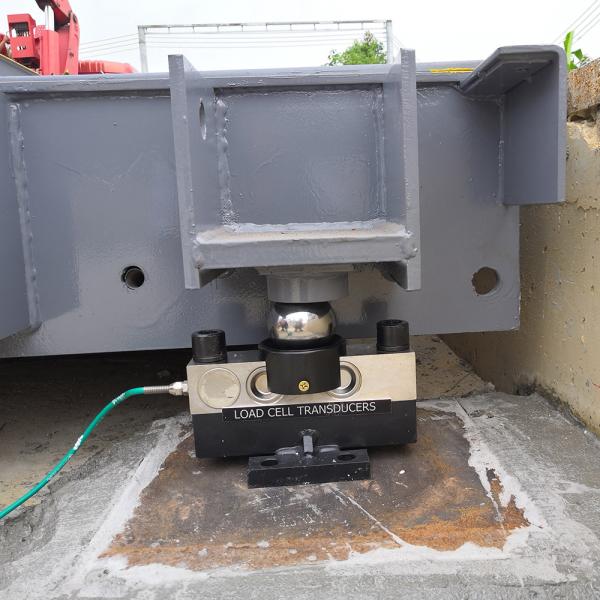

Load cell Keli digital load cell or ZEMIC digital load cell

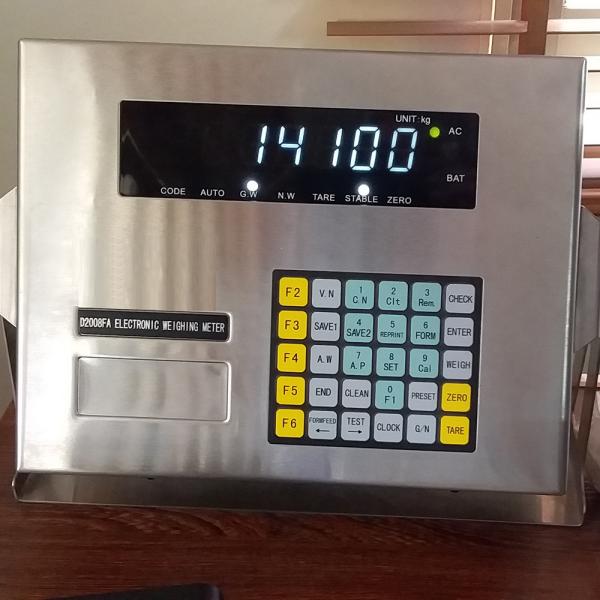

Weighing indicator YAOHUA or Keda indicator
Interface RS232 (or RS485), PC, printer, extra scoreboard
Working temperture -10~40ºC(indicator), -30~75ºC(load cell)
Working humidity ≤95%
Certificate CE, OIML, ISO9001:2015

100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction

100 Ton Rated Load Weighbridge Truck Scale 60ft With Printer Modular Construction

Recommended dimension for KEDA truck scale platform
Capacity(Tons) 30 40 50 60 80 100 120 150
Division Value 5KG/10KG/20KG/50KG
Platform size:L*W(m) Recommended size Packing(container)
3*7 √ √ 1x20'GP
3*9 √ √ √ √ √ 1x20'GP
3*12 √ √ √ √ √ √ 1x20'GP
3*14 √ √ √ √ √ √ 1x20'GP
3*16 √ √ √ √ √ 1x20'GP
3*18 √ √ √ √ √ 1x20'GP
3*20 √ √ √ √ 1x40'GP
3*22 √ √ √ 1x40'GP
3*24 √ √ 1x40'GP
Remark Other capacity, size and apprearance can be customized according your requirements.
