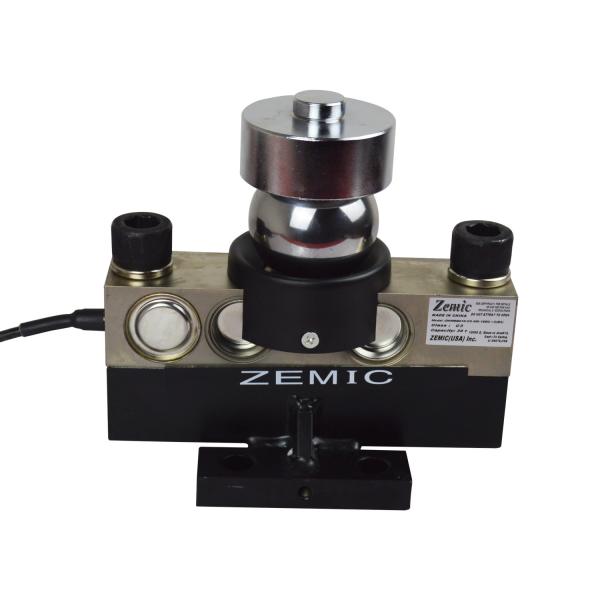

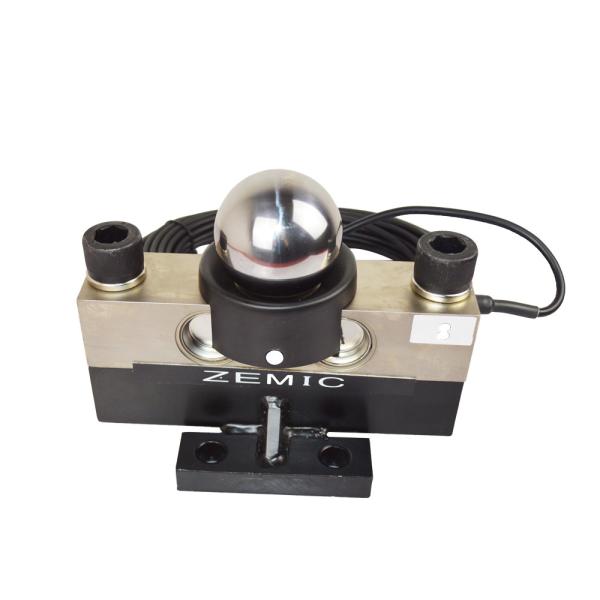

Truck Scale Weighing Scale Load Cell ZEMIC Heavy Duty 30 Ton Weighing Sensor
Truck Scale Weighing Scale Load Cell ZEMIC Heavy Duty 30 Ton Weighing Sensor
Truck Scale Weighing Scale Load Cell ZEMIC Heavy Duty 30 Ton Weighing Sensor
Truck Scale Weighing Scale Load Cell ZEMIC Heavy Duty 30 Ton Weighing Sensor
Truck Scale Weighing Scale Load Cell ZEMIC Heavy Duty 30 Ton Weighing Sensor
Truck Scale Weighing Scale Load Cell ZEMIC Heavy Duty 30 Ton Weighing Sensor
Truck Scale Weighing Scale Load Cell ZEMIC Heavy Duty 30 Ton Weighing Sensor
Truck Scale Weighing Scale Load Cell ZEMIC Heavy Duty 30 Ton Weighing Sensor
Specifications
Brand Name :
ZEMIC
Model Number :
HM9B
Certification :
ISO OIML CE
Place of Origin :
Guangdong, China
MOQ :
10PCS
Price :
Negotiated price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
5~15days
Packaging Details :
Carbon box with foam
Product name :
ZEMIC HM9B Load Cell
Usage :
truck scale
Material :
Alloy Steel
Capacity :
30 Ton
Safe overload :
150% F.S
Accuracy class :
OIML C3
Excitation voltage :
5 ~ 12DC
Ultimate overload :
300F.S
Description

ZEMIC Heavy Duty 30 Ton Weighing Sensor / Truck Scale Load Cells

Truck Scale Weighing Scale Load Cell ZEMIC Heavy Duty 30 Ton Weighing Sensor

Product introduction

  • Nickel plated alloy steel IP68 dual shear beam load cell
  • High accuracy
  • Suitable for truck, track, hopper and other electronic weighing devices
  • Current calibrated (sc-option)

Available models

Capacity Accuracy Full article description
10 t C3 HM9B-C3-10t-16B
20 t C3 HM9B-C3-20t-16B
25 t C3 HM9B-C3-25t-16B(-SC)
30 t C3 HM9B-C3-30t-16B(-SC)
40t LE C3 HM9B-C3-40t LE-16B
40 t C3 HM9B-C3-40t-16B
50 t C3 HM9B-C3-50t-16B

Specification

Specification
Accuracy class OIML R60 C3
Output sensitivity ( = FS ) mV/V 2.0 ± 0.002
Maximum capacity ( Emax ) t 10/20/25 30/40LE/40/50
Maximum number of load cell intervals ( nLC ) 3000
Ratio of minimum LC verification interval Y = Emax / vmin 15000 7500
Combined error %FS ± 0.023
Minimum dead load klb 0
Safe overload %FS 150
Ultimate overload %FS 300
Zero balance %FS ± 1.5
Excitation, recommended voltage V 5 ~ 12( DC )
Excitation maximum V 18( DC )
Input resistance Ω 700 ± 7
Output resistance Ω 700 ± 7
Insulation resistance MΩ ≥ 5000 ( 50VDC )
Compensated temperature ℃ -10 ~ +40
Operating temperature ℃ -35 ~ +65
Storage temperature ℃ -40 ~ +70
Element material Nickel plated alloy steel
Ingress protection (according to EN 60529) IP68
ATEX classification (optional) II1G Ex ia IIC T4 II1D Ex iaD 20 T73℃ II3G Ex nL IIC T4

Truck Scale Weighing Scale Load Cell ZEMIC Heavy Duty 30 Ton Weighing Sensor
