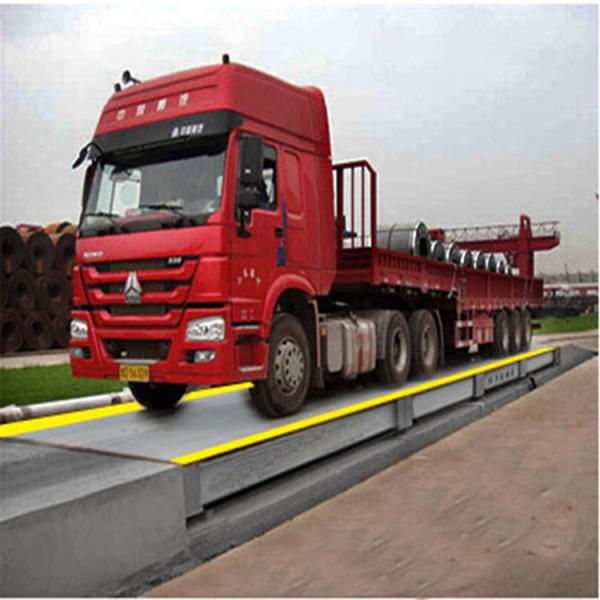

3*8m Small Weighing Bridge Machine 20 Ton Weighbridge LED Display 20 Ton
3*8m Small Weighing Bridge Machine 20 Ton Weighbridge LED Display 20 Ton
3*8m Small Weighing Bridge Machine 20 Ton Weighbridge LED Display 20 Ton
3*8m Small Weighing Bridge Machine 20 Ton Weighbridge LED Display 20 Ton
3*8m Small Weighing Bridge Machine 20 Ton Weighbridge LED Display 20 Ton
3*8m Small Weighing Bridge Machine 20 Ton Weighbridge LED Display 20 Ton
Specifications
Brand Name :
KEDA
Model Number :
SCS-20T
Certification :
ISO CE
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
Negotiated price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10~25 days
Packaging Details :
The platform of weighbridge is nude packed and the accessories are packed in carton or wooden box
Product name :
20 Ton Weighbridge
Type :
Digital
Power supply :
220V/50HZ, AC/DC
Display :
LED weighing indicator
Load cell :
KELI or Zemic with OMIL certificated
Overload protection :
150%F.S
Material :
8~20mm steel Q235
Warranty :
1 Year
Description

LED Display 20 Ton 3*8m Small Weighing Bridge Machine / 20 Ton Weighbridge Price

Advantages of digital weighbridge

  1.  Strong transmission signal and no interference
  2.  Reduced unbalanced loading due to temperature and creeping due to time
  3.  Auto-diagnosis on failure,error code prompt function,very convenient in calibration and repair
  4.  Digital signal transmission avoiding man-made interference and cheating
  5.  PCB in the sensor has a lightening-protection design,prevents the lightening-protection of the whole system
Specification
Plate Material Q235 carbon steel, 8/10/12mm steel plate is optional
Indicator/Display Analog A9, A9P optional(OIML&CE approved), Digital Yaohua DS10 or DS8 and Keli D2008H
Load Cells Keli or Zemic bridge type digital load cells
Display Designators On/Off, Zero, Tare, kg/lb.
Transmission Distance RS232C≤30m
Power Supply Rechargeable Battery, AC 220V;50Hz (-2%~+2%), DC 12V/7AH
Junction box Anti-surge junction box, 4, 6,8,10,12-wire are optional, adapt to all weighing systems
Signal cable 20m single shielded 4-core cable, can't cut when use otherwise will effect accurate
Color Standard color

Function:

  1.  Communication interface RS485 and RS232 (PC)
  2.  Error information indication
  3.  EMC protection measurement
  4.  Auto-corner adjustment and manually corner adjustment function
  5.  Printing: standard parallel print interface; filled type bill format can be optional
  6.  Memory: able to save 256 vehicle ID and corresponding tare eight, 256 weighing records
  7.  Two-stage division, two-stage capacity can be selected
  8.  Non-linearity calibration function, daily report printing; timing turn off function
  9.  Separate calibration of the design and operation parameters
  10.  Time: auto leap year, leap month, can display year/month/date/hour/minute/second
  11.  Display: 6 bits VFD, 6 state indication symbols
  12.  Keyboard: Data key: 0~9; function key: 20 pieces (9 of them are same as data key)
  13.  Scoreboard screen display interface: serial output mode and current loop, 11 bits binary number, 600 baud rate
  14.  Printer interface, recommend Epson LQ-200K, Epson LQ-300K+II, KX-P1121, KX-P1131

3*8m Small Weighing Bridge Machine 20 Ton Weighbridge LED Display 20 Ton

Recommended dimension for KEDA truck scale platform
Capacity(Tons) 30 40 50 60 80 100 120 150
Division Value 5KG/10KG/20KG/50KG
Platform size:L*W(m) Recommended size Packing(container)
3*7 √ √ 1x20'GP
3*9 √ √ √ √ √ 1x20'GP
3*12 √ √ √ √ √ √ 1x20'GP
3*14 √ √ √ √ √ √ 1x20'GP
3*16 √ √ √ √ √ 1x20'GP
3*18 √ √ √ √ √ 1x20'GP
3*20 √ √ √ √ 1x40'GP
3*22 √ √ √ 1x40'GP
3*24 √ √ 1x40'GP
Remark Other capacity, size and apprearance can be customized according your requirements.
