Specifications
Brand Name :
Keda
Model Number :
SCS-100T
Certification :
ISO
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
USD8500~13500
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
10~25 days
Packaging Details :
The body of truck weight bridge is nude packed and the accessories are packed in cartons
Material :
Q235
Sensor :
digital load cells
Power supply :
220V AC or 9V DC
Capacity :
100 Ton
Accuracy :
50kg
Safe overload :
150%
Structure :
U-Beams
Certificate :
CE ISO9001
Interface :
RS485 / Printer / PC
Warranty :
12 months
Description

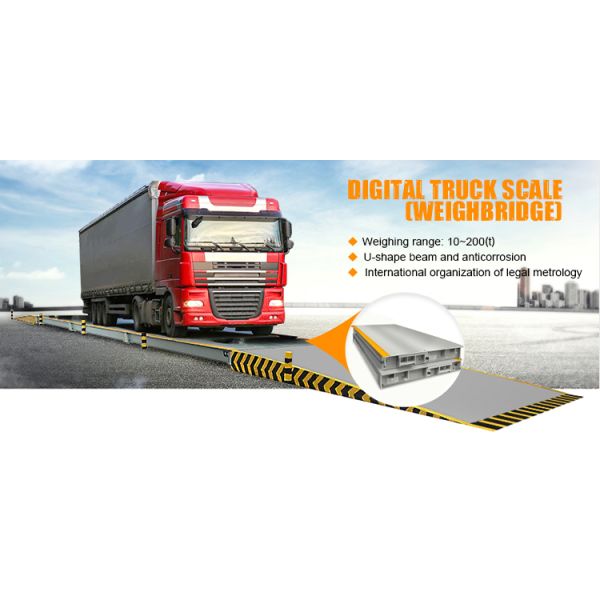

Heavy Duty 50kg Accuracy 100 Ton Digital Weighing Scales To Weigh Trucks

Standard configuration of KEDA SCS Truck Scale:

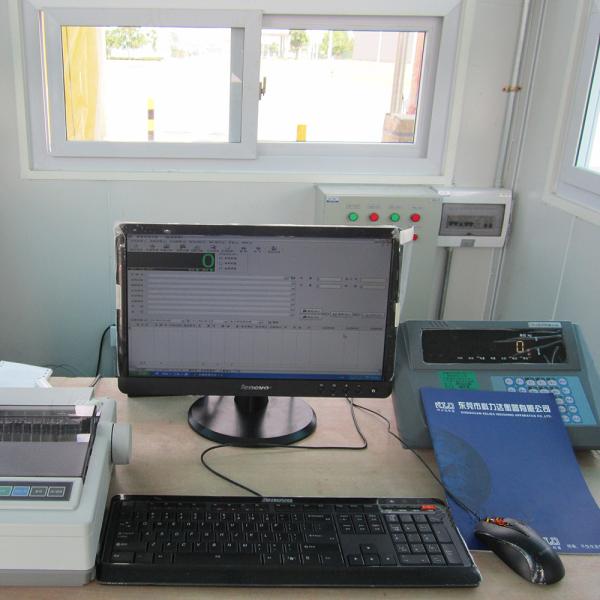

Truck scale platform, high accuracy weighing load cells, weight indicator, junction box and shield cable are necessary parts of a basic truck scale. Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.

The SCS Truck scale is available in both surface and pit mount designs. Key features include:

  • Low profile deck design – only 300 mm high
  • Driver-operated versions
  • Guide rails standard on surface models
  • Optional steel ramps, bar, and anti-skid design
  • Modular construction
  • Non-standard widths & lengths up to 150 Tons
  • Special paint
  • Multi-range – high accuracy versions
  • Wide range of weighbridge peripherals

Truck Scale Technical Paramater

Type Digital truck scale
Platfrom size From 6m to 24m

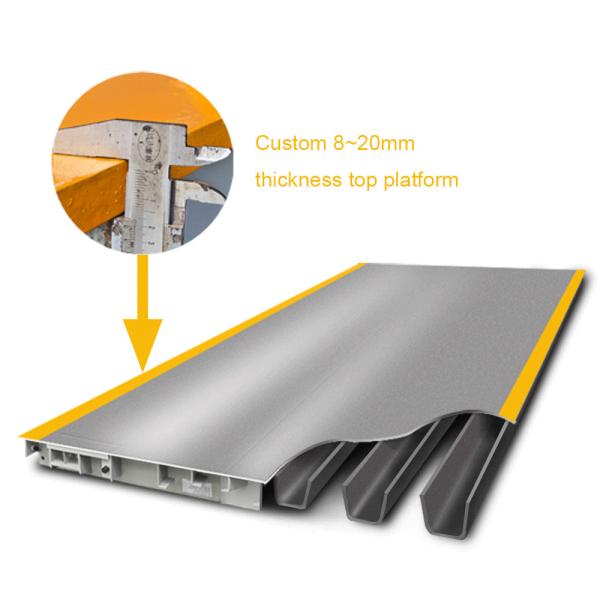

Platform material 8-20mm thickness top steel plate
Painting poxy zinc rich primer and acrylic marine paint
Max. Cap 60ton
Accuracy 20kg (OIML Ⅲ)
Safe over loade 150%F.S
Power supply 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz
Load cell Keli digital load cell or ZEMIC digital load cell
Weighing indicator YAOHUA or Keda indicator
Interface RS232 (or RS485), PC, printer, extra scoreboard
Working temperture -10~40ºC(indicator), -30~75ºC(load cell)
Working humidity ≤95%
Certificate CE, OIML, ISO9001:2015

Heavy Duty 50kg Accuracy 100 Ton Digital Weighing Scales To Weigh Trucks

Heavy Duty 50kg Accuracy 100 Ton Digital Weighing Scales To Weigh Trucks

Recommended dimension for KEDA truck scale platform

Capacity(Tons) 30 40 50 60 80 100 120 150
Division Value 5KG/10KG/20KG/50KG
Platform size:L*W(m) Recommended size Packing(container)
3*7 1x20'GP
3*9 1x20'GP
3*12 1x20'GP
3*14 1x20'GP
3*16 1x20'GP
3*18 1x20'GP
3*20 1x40'GP
3*22 1x40'GP
3*24 1x40'GP
Remark Other capacity, size and apprearance can be customized according your requirements.

Heavy Duty 50kg Accuracy 100 Ton Digital Weighing Scales To Weigh Trucks

Heavy Duty 50kg Accuracy 100 Ton Digital Weighing Scales To Weigh Trucks

Heavy Duty 50kg Accuracy 100 Ton Digital Weighing Scales To Weigh Trucks

Heavy Duty 50kg Accuracy 100 Ton Digital Weighing Scales To Weigh Trucks

Heavy Duty 50kg Accuracy 100 Ton Digital Weighing Scales To Weigh Trucks
