Specifications
Brand Name :
Keda
Model Number :
SCS-100T
Certification :
ISO
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
Negotiated price
Payment Terms :
L/C, T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10~25 days
Packaging Details :

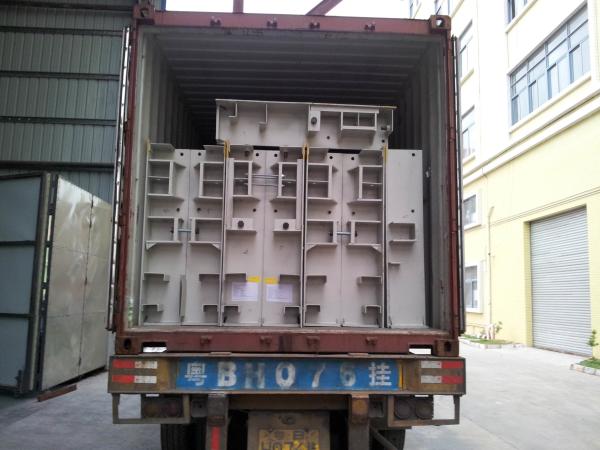

The platform of truck bridge is nude packed and the accessories are packed in cartons
Size :
3x18m
Capacity :
50 Ton
Accuracy :
10kg
Safe overload :
150% F.S
Power supply :
220V AC or 9V DC
Material :
Q235 Steel
Structure :
U-Beams
Load cells :
Keli or Zemic load cell
Description

3*18M Q235 Steel 50 Ton Electronic Digital Lorry Weighing Scales

Standard configuration of digital Lorry Weighing Scales:

weighing platform, high accuracy weighing load cell and weighing indicator. Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.

Main features of digital Lorry Weighing Scales::

1. Use U-shape beam structure, scientific and reasonable, strong and durable;

2. Undersurface uses high quality antirust paint so as to increase its service life;

3. Modular, sealed cavity, anticorrosion, convenient installation.

Main features of weighing indicator:

1. use imported A/D conversion chip, which has rich practical experience in the market;

2. high resolution, can reach 1/500000;

3. self fault diagnosis function and tare two-way recovery function;

4. battery indication and low battery protection;

5. can use single-layer, duplex and three-ply weight list, can be equipped with weighing software and connected to the computer.

Main technical parameters of weighing load cell:

Weighing load cell Cantilever beam type Bridge type Colum type
Rated load(t) 0.5,1,2,5,10,20 10,15,20,25,30,40,50 20,30,50
Rated output(m/v) 2±0.01 2±0.01 1.0±0.04
Input resistance(Ω) 400±5 750±5 450±5
Output resistance(Ω) 351±1 700±1 350±5
Non-repeatability(%FS) ±0.02 ±0.02 ±0.02
Recommended excitation(V) 10DC 10DC 10DC

3*18M Industrial Truck Scales Q235 Steel 50 Ton Electronic Digital Lorry Weighing

3*18M Industrial Truck Scales Q235 Steel 50 Ton Electronic Digital Lorry Weighing

Width(m) Weighing platform length(m)
7 9 10 12 14 15 16 18 20 21
3 * * * * *
3.2 * * *
3.4 * * * *
Our company accepts special specification order. * represents optimal specifications.
Model: SCS-60T Maximum weighing(T): 60 Division value(kg): 10, 20
