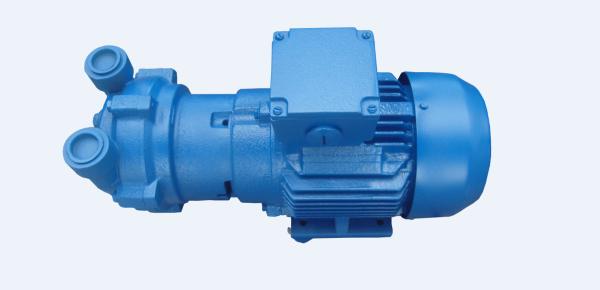

380v Liquid Ring Vacuum Pump Customized Color With Explosion - Proof Motor
380v Liquid Ring Vacuum Pump Customized Color With Explosion - Proof Motor
380v Liquid Ring Vacuum Pump Customized Color With Explosion - Proof Motor
380v Liquid Ring Vacuum Pump Customized Color With Explosion - Proof Motor
Specifications
Brand Name :
FUTEN
Model Number :
2FV2 110
MOQ :
5 UNITS
Delivery Time :
10 work days
Price :
Negotiable
Material :
Stainless steel, Carbon steel
Color :
Grey, blue, white, etc
Voltage :
380v, 415v, 460v, etc
Bearing :
NSK, SKF
Motor :
Siemens, ABB, WEG, WNM, etc.
Mechanical Seal :
Burgmann or John Crane
Description

2FV2 110 Liquid Ring Vacuum Pump Water Ring Vacuum Pump

MODEL

Suction capacity(m3/h)

 Power(KW) Speed(rpm)

Operating liquid

rates(m3/h)

 Weight(kg)
2FV2 110 110 3.85 2900 0.25 72

1 Pump impellers are directly installed onto the motor axes, save space, easy to install, easy to maintain and repair；
2 We use imported mechanical seal as a standard configuration;
3 Pump sets cavitation protection tube. While the pump is working under the utmost pressurein, protection tube can reduce harm to pump from cavitation erosion and reduce noise and vibration;
4 A unique flexible air vent, it can ensure max efficiency of FV5;
5 Y2 series motors used, protetcion level: IP54/IP55(usually IP44). Insulation level is F(usually B);
6 Normal Motor, Explosion-proof Motor
7 2FV series use PTFE as sealing elementts that life cycle can be greatly extend;
8 Impeller: aluminum bronze or SS304 stainkess steel;
9 Optional materials of pump body: cast iron; SS304 stainless steel; SS316L;
10 Ultimate cacuum: 3.3KPa;
11 Working fluid closed cycle unit can be provided;
12 Pump can be configured with dual-use unit forms;
13 PLC automation control cabinet can be configured.
