Transformer Station Vacuum Drying Equipment Two Stage High Pumping Speed
Transformer Station Vacuum Drying Equipment Two Stage High Pumping Speed
Transformer Station Vacuum Drying Equipment Two Stage High Pumping Speed
Transformer Station Vacuum Drying Equipment Two Stage High Pumping Speed
Transformer Station Vacuum Drying Equipment Two Stage High Pumping Speed
Transformer Station Vacuum Drying Equipment Two Stage High Pumping Speed
Transformer Station Vacuum Drying Equipment Two Stage High Pumping Speed
Transformer Station Vacuum Drying Equipment Two Stage High Pumping Speed
Specifications
Brand Name :
FUTEN
Model Number :
ZJBX-600-630
Place of Origin :
HEFEI, ANHUI
MOQ :
1 UNIT
Price :
Negotiable
Delivery Time :
45 work days
Material :
Stainless steel, Carbon steel
Color :
Grey, blue, white, etc
Suction Capacity :
600L/S
Motor :
Siemens, ABB, WEG, WNM, etc.
Application :
Transportation industry
Motor Type :
Normal Motor, Explosion-proof Motor
Description

ZJBX-600-630 Roots Dry Screw Vacuum Pump System In Pharmaceutical Processing Vacuum Unit High Suction Pressure

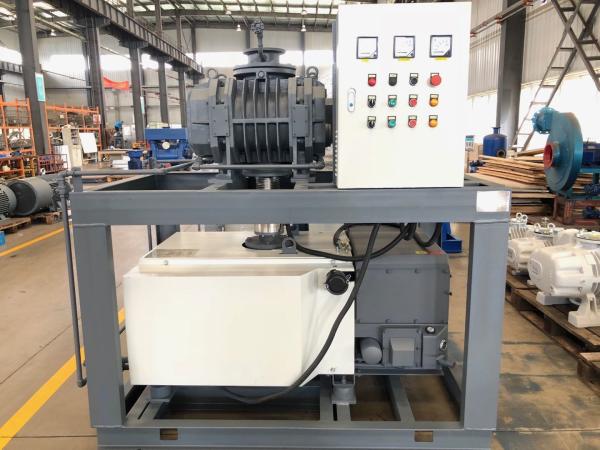

ZJBX-600-630 Roots Rotary Vane Pump Two Stage High Pumping Speed Power Transformer Station Vacuum Drying Equipment

MODEL Suction capacity (L/S) Ultimate vacuum (Pa) Component Model Power (KW) Inlet size(mm) Outlet size(mm)
Main Pump Forepump
ZJBX-600-630 600 0.5 ZJB-600 XD-630 20.5 150 3

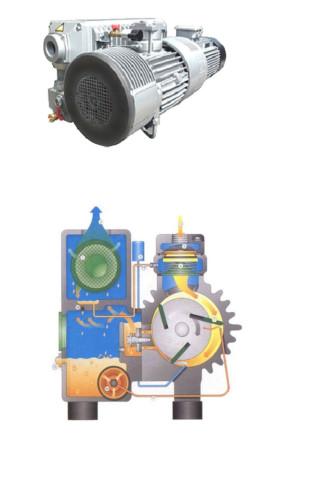

Vacuum principle

 In a circular pump body (stator) with an intake valve and an exhaust valve, an eccentric rotor and three blades that move by centrifugal force in the rotor groove are provided, and the blades divide the pump into three parts. Their volume changes periodically with the rotation of the rotor, completing the process of suction, compression, and discharge of the gas, so that the gas at the suction port is sucked to form a vacuum.

Unit integration design

 Each vacuum pump is a separate vacuum supply system that is versatile and easy to install. It is also possible to rationally design and combine one or more vacuum pumps according to the actual flow demand of the customer, equipped with corresponding vacuum tanks and control systems, and integrated units, which are suitable for occasions with limited installation space.

Continuous operation

 It can meet the requirements of various working conditions and can work stably in the long-term continuous operation mode. Control options provide load, unload, power-on, and shutdown modes to meet different system usage needs.
Quiet operation Designed in silent operation mode, it can meet the installation requirements of different environments without affecting the working conditions of the environment.

High-efficiency oil and gas separation system

 Built-in advanced and reliable high-efficiency oil and gas separation system, the oil and gas mixture is separated by multiple stages, and has excellent oil and gas separation effect, which ensures that the gas discharged from the product has low oil content and is clean and oil-free.

Low maintenance cost

 no need for routine maintenance, low maintenance costs except regular oil and filter cartridges
