Specifications
Brand Name :
FUTEN
Model Number :
FDPH 200
Place of Origin :
HEFEI, ANHUI
MOQ :
3 UNITS
Price :
Negotiable
Delivery Time :
30 work days
Material :
Stainless steel, Carbon steel
Color :
Grey, blue, white, etc
Voltage :
380v, 415v, 460v, etc
Motor :
Siemens, ABB, WEG, WNM, etc.
Motor Type :
Normal Motor, Explosion-proof Motor
Description

FDPH 200 In Pharmaceutical Processing Chemical Pump Oil Free Dry Screw Vacuum Pump

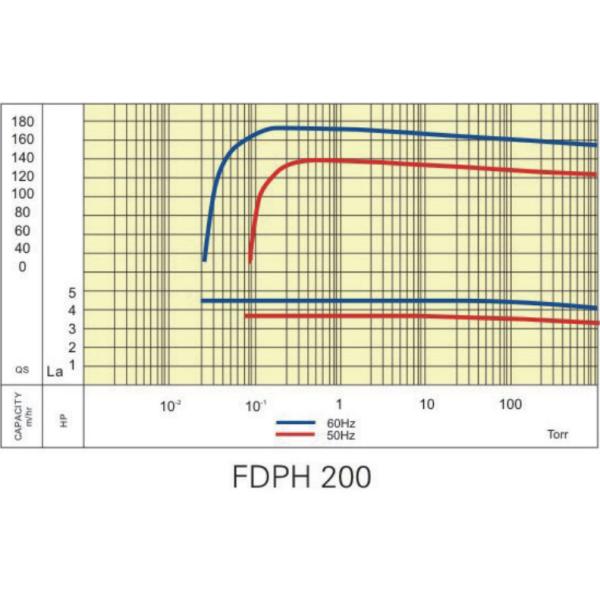

MODEL Suction capacity(m3/h) Ultimate vacuum(Pa) Power (KW) Speed (rpm) Inlet size(mm) Outlet size(mm)

Operating liquid

rates(L/min)

 Weight(kg)
FDPH 200 155/187 2.7 5.5/7.5 2900/3500 40 40 4 220

Specialties
1 Oil-free and water-dry operation, it is providing a clean vacuum
2 No friction between the screw and the pump to ensures the life of the pump
3 Lower cost
4 Single stage design is easy for cleaning
5 The pipeline of pump is short that the gas could be discharge quickly
6 Special coating for handling toxic, corrosive and condensable gases
7 Simple design which is easy for maintenance
8 Low speed operation, low vibration, low noise
9 Mechanical seal is able to avoid leakage

Advantages
1 To compare with common design, the power consumption is reduced by 30% which is saving a lot of utility costs
2 Reduce operating temperature to meet T4 standards
3 It is Improved vacuum volume to increases vacuum
4 Simple design to save installation space
5 Mainly flanged, simplify installation, reduce noise, and reduce coupling error
