Easy Assemble Heavy Duty Selective Pallet Rack Adjustable Steel Structure
Easy Assemble Heavy Duty Selective Pallet Rack Adjustable Steel Structure
Easy Assemble Heavy Duty Selective Pallet Rack Adjustable Steel Structure
Easy Assemble Heavy Duty Selective Pallet Rack Adjustable Steel Structure
Specifications
Brand Name :
SIMPLY
Model Number :
SII-SE02
Certification :
SGS
Place of Origin :
China
MOQ :
10 sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
6000 ton per year
Delivery Time :
30 working days
Packaging Details :
Export standard carton, wooden or steel pallet is available.
Name :
Heavy Duty Selective Pallet Racking
Structure :
Easy Assemble
Material :
Steel Q235
Color :
Blue Upright Frame, Orange Beam or as per request
Feature :
Fixed
Usage :
Garments, Food, Beverage, Supermarket, Warehouse, Industrial Storage, etc.
Description

Heavy Duty Selective Pallet Rack, Adjustable Warehouse Steel Structure Racking

Why Choose Simply Racking

1. Heavy loading capacity, as per your request.

2. Tough & safe structure.

3. Environmental friendly & high quality material.

4. The first choice for BIG warehouse storage.

What's Selective Pallet Rack

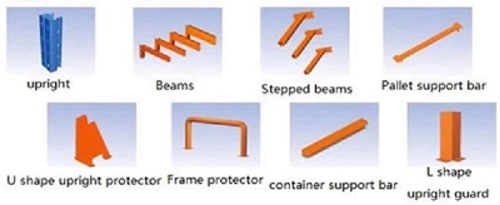

It's the most common used racking system, even drive in racks, double deep racks, VNA racks are extension of from selective pallet racking. For space saving during shipment, selective pallet racks' all components can be disassembly, and surely that installation is quite easy. This selective pallet rack includes different components:

1. Upright frame

2. Beam

3. Upright protector

4. Base plate/Floor shims

5. Row spacer

6. Safety barrier

7. Wire decking

8. Steel Pallet or plastic pallet

9. Back stopper

10. Pallet bar

Besides, No.1, 2, 5 these three compoents are necessary. The rest parts can be up to your actual request to decide need or not.

Design Factors

  • Pallet racking's size? Length x Width x Height
  • How many levels?-- most popular is 3+1=4 levels
  • Loading Capacity each level?--usually 1000kg-1300kg

Length(mm) Width(mm) Height(mm)
1000 1000 3000-6000
1500 1000 3000-6000
2000

1000

 3000-6000
2500 1000 3000-6000

Features

1.Pallets can be located, accessed and moved individually.
2.Rapid handling almost all types of palletized goods
3.Fully utilizes vertical space
4.Strength and rigidity prevents compression damage to goods.
5.Bottom level of pallets can be stored on the floor, lowering structure costs.
6.Durable powder coated finish, clean appearance, fire proof.
7.The beam can be adjusted up and down every 75mm.

Tips

1. Goods pack in paper carton and no need for cold storage, pallet rack would be right choice. Pallet rack includes selective pallet racking, double deep pallet racking, drive in/through pallet racking
2. Goods pack in paper carton and needing cold storage, please choose drive in/through pallet rack
3. Require for a conventional racking: selective pallet racking, double deep pallet racking, drive in/through pallet racking
Easy Assemble Heavy Duty Selective Pallet Rack Adjustable Steel Structure
