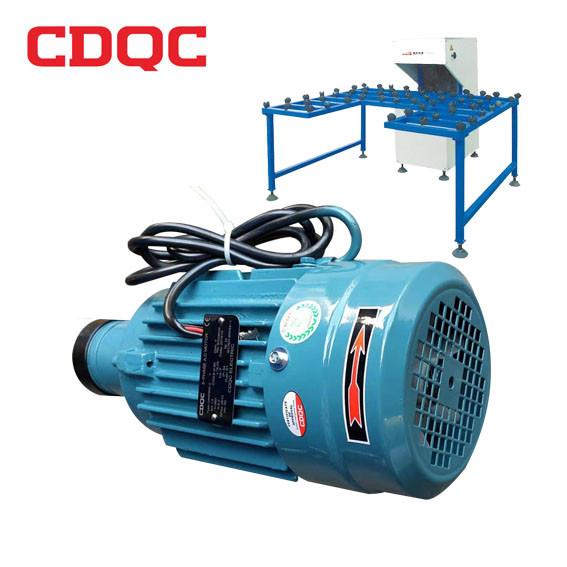

UAMZ90 11KW 3 Phase AC Motor 15 Hp For Glass Edge Straightening Machinery
UAMZ90 11KW 3 Phase AC Motor 15 Hp For Glass Edge Straightening Machinery
Specifications
Place of Origin :
Shanghai, China
Brand Name :
CDQC
Supply Ability :
150000 Set/Sets per Month
Packaging Details :
waterproof film & CDQC carton.
Price :
Negotiate
Model Number :
UAMZ
Certification :
CCC,CE
Color :
As Required
Usage :
Universal
Function :
Driving
Phase :
Three Phase
Speed :
Constant Speed
Shape :
Linear
Power :
AC
Protect Feature :
Enclosed and Waterproof
Structure :
Other
Port :
Shanghai
Description

UAMZ90 11KW 3 Phase AC Motor 15 Hp For Glass Edge Straightening Machinery

Product Description

* Wide voltage Range
- 50HZ: 200V ; 220V / 380V ;415V
- 60HZ: 200V ; 220V / 380V ; 440V
* Insulation Class : F Class
* Protection Class : IP 54 (Optional IP 55)
* S.F. 1.15
* EFF2 (European efficiency)
* Flexible Terminal Box
* CE, ISO9002 Certificate
* Shaft End are Tapped

Product introduction:

UAMZ90 series electric motor 15 hp mainly applied to the glass processing industry, glass edge grinding, glass shaping filed. Specialized for glass edge straightening machinery.

1, Use high accuracy bearings, axial float & radial run-out ≤ 0.01mm, 100% products passed dynamic balance detection, ensured low vibration and low temperature rising.

2, Grinding head direct connected to the electric motor 15 hp, powerful!

3, The electric motor 15 hp coil is dipped in vacuum environment, Class F insulation, longer lifespan.

4, Special water proof design sealing structure, with high temperature resistant materials, specialized for all kinds of working site.

5, Voltage: 380V/50HZ (Various voltage&frequency are available, 415V/380V/240/230V/220V/120V/110V, 50HZ/60HZ)

UAMZ90 Series electric motor 15 hp Technical Parameters:

Model

Rated

Power

(Kw)

Rated Voltage

(V)

Rated Frequency

(HZ)

Rated Current

(A)

Rated

Torch

(N.m)

Rated

Speed

(rpm)

Efficiency

(η)

Power Factor

TS/TN

TMAX/TN

IS/IN

Weight

(Kg)

UAMZ90S-2P-1.5

1.5

380

50

3.2

5.1

2810

78.2%

0.9

1.9

2.1

5.0

24

UAMZ90L-2P-2.2

2.2

380

50

4.6

7.4

2820

79.5%

0.81

2.6

2.5

6.0

24.5

UAMZ90L-4P-1.5

1.5

380

50

3.6

10.3

1390

78%

0.82

2.5

2.2

5.5

24.5

Electric Input: AC/380V/50HZ/3PHASE(Customized Service is available)

Protection Level: IP54/Working Mode: S1/Insulation Class: F/Cooling mode: IC411/Noise70/Vibration Level:N

Selling Point

customers can choose according to the installation space. The design of high efficiency motor operation, lower temperature, lower cost,

longer service life, take time for application requirements in many industries.CDQC motors adopt frequency conversion to strengthen insu

lation treatment, enhance the reliability of winding insulation, prolong the service life of the motor. The utility model is suitable for the stepless

speed regulation of various industries.

service

1. We provide presales in our first cooperation, make clear your situation and give you some advice. We would give you a better ideal if you

need. We will give the details to each customer for reference, including the dimension, performance, quality and price level. For drawings,

Our R & D team is professianal enough.

2. Once we receive the order list, we will confirm the exact model and quantity one by one, then place the order list to our factory. We will
tracking the production progress and quality before delivering. Because we’re manufacturer, so our leading time is more shorter, quality tracking
is more strict.
3. We provide after-sales service within 18 months after the products are manufactured. In addition, we also provide sales service
for spare parts. If you have any questions, please contact us.

COMPANY INTRODUCTION

CDQC specializes in the research and development, manufacturing, sales and service of various types of motors, covering an area of 20,000 square meters and having nearly 200 formal staff. We have a professional research and development team. They are constantly committed to the development and innovation of motor technology and our staff accepting serious training can use advanced motor testing platform and other professional testing equipment so that the quality of products have greatly improved. We have to ensure to provide customers with the highest quality and the most credible motor for their machine. At present, CDQC has developed into a new energy transmission base integrating materials, industry and trade.
