Specifications
Brand Name :
XINYUAN
Model Number :
DH32100
Certification :
ISO9001 quality management system certification
Place of Origin :
Langfang City, Hebei Province, China
MOQ :
100 pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100,000 pieces/month
Delivery Time :
3 days
Packaging Details :
Regular paper packaging. Depending on the model, the packaging will vary.
Product Name :
Self-cleaning air filter cartridge
Specification Model :
DH32100
Initial Resistance (Pa) :
≤150
Filter Area (M²) :
≥26
Filter Accuracy (μM) :
≥2
Filter Level :
F9
Rated Air Flow (M³/Min) :
20
Dimensions (Mm) (Outer Diameter×Inner Diameter×Height) :
Ø323ר215×1000
Description

Industrial Air Filter With Strong Adsorption Power

Product Description:

The dust removal filter cartridges produced by our company adopt new technology and new technology. The filter materials are home-made, imported PS, PUS, PTFE polyester non-woven fabric, film-coated anti-static non-woven fabric, long-fiber filter paper, fiber composite material, metal filter mesh, glass fiber, chemical fiber non-woven filter material and synthetic fiber filter material.

Product parameter:

product name

Specification model
Dimensions (mm)
(Outer diameter×inner diameter×height)
Filter area (m²)
Filter accuracy (μm)
Filter level
Rated air flow
(M³/min)
Initial resistance (Pa)

Self-cleaning air filter cartridge

DH3266 Ø323ר215×660 ≥17 ≥2 F9 13 ≤150

Self-cleaning air filter cartridge

DH3270 Ø323ר215×700 ≥18 ≥2 F9 14 ≤150

Self-cleaning air filter cartridge

DH3290 Ø323ר215×900 ≥23 ≥2 F9 18 ≤150

Self-cleaning air filter cartridge

DH32100 Ø323ר215×1000 ≥26 ≥2 F9 20 ≤150

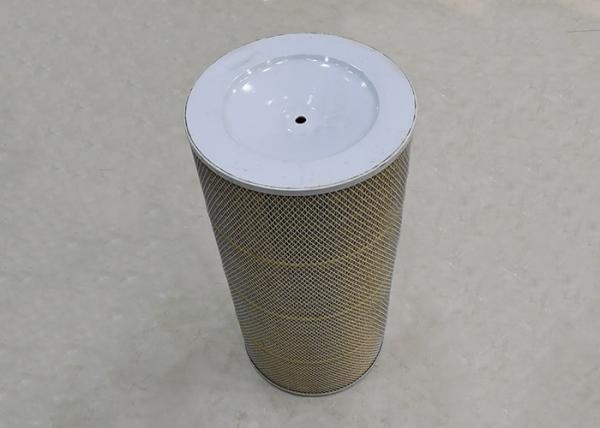

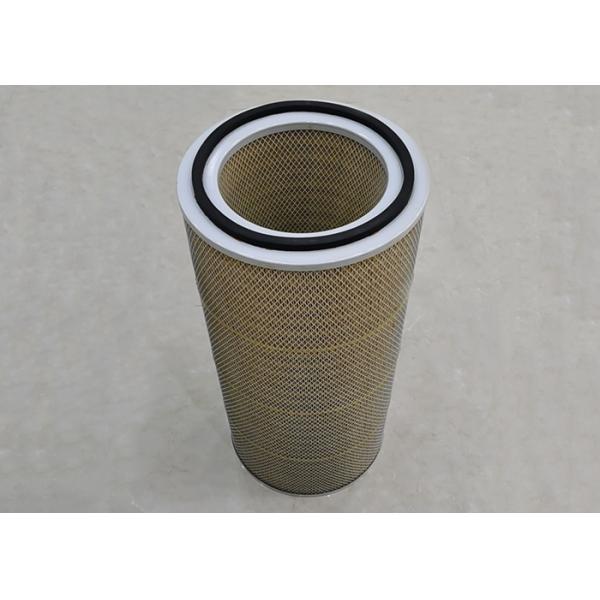

Self Cleaning F9 DH32100 Industrial Air Filter Cartridge

Advantage:

1. Sealed closed-cell elastic chloroprene rubber
2. Use temperature 93-135 C.
3. Relative humidity 100%.

Features:

The filtering accuracy of the filter cartridge can reach 1 um, and the filtering efficiency can reach 99.99%. Specification 100-700, height 200-2000 range. Product Description: Suitable for powder spraying, sand blasting, pigment industry, wood processing filtration.
